| Product Overview |
|---|

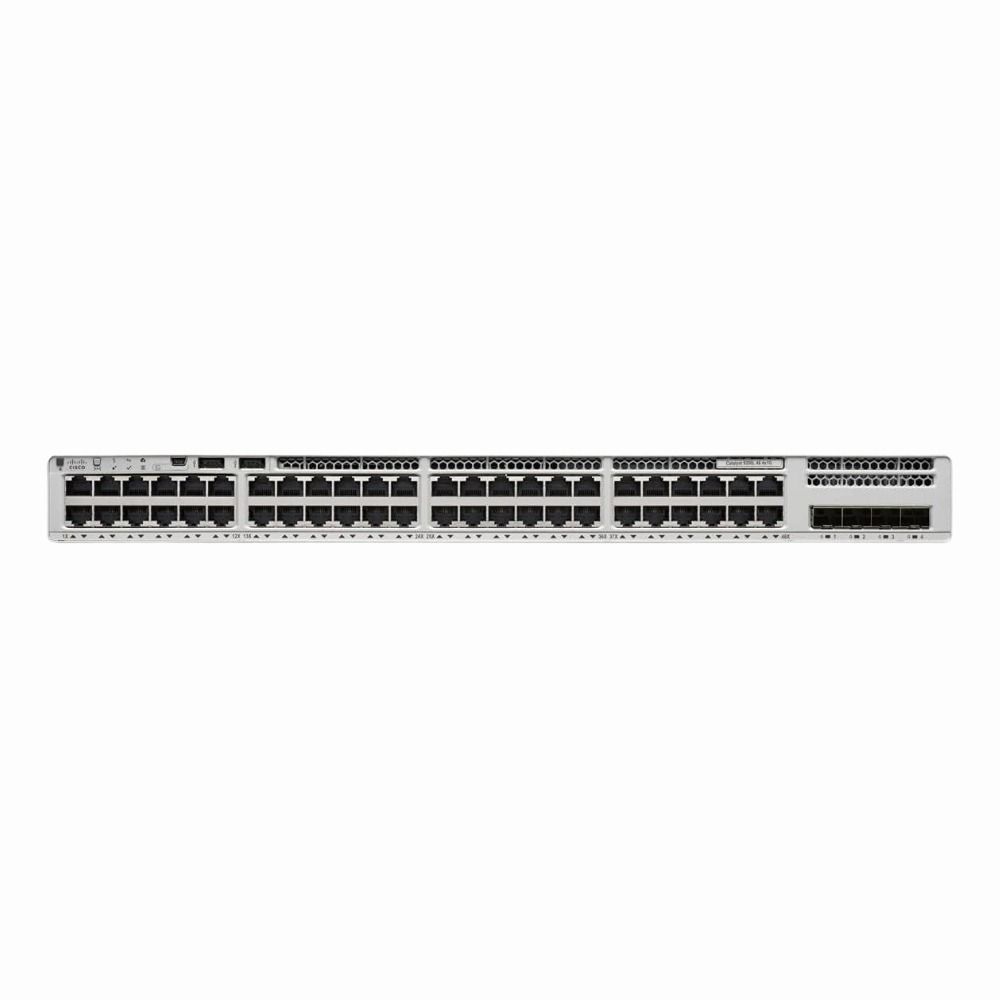

The Cisco Catalyst 9200L-48T-4G-A switch provides 48 standard Gigabit Ethernet ports alongside 4 SFP+ slots for uplink flexibility, fitting well into network infrastructures requiring both dense connectivity and higher-speed backbone links. Its Layer 3 capabilities make it suitable for routing within campus or branch networks, offering administrators control over traffic flow without needing separate routing devices. |
| General Information | |
|---|---|
| Brand | Cisco |
| Part Number | C9200L-48T-4G-A |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Number of Ports | 48-Ports |
| Port Type | 10/100/1000Base-T, 10G SFP+ |
| Port Speed | 10/100/1000 Mbps |
| UpLink Ports | 4 |
| POE Support | No |
| Switching Capacity | 176 Gbps |
| Switch Forwarding Rate | 130.95 Mpps |
| DRAM | 4 GB |
| Flash Memory | 4 GB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP+ |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 32000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, EIGRP, BGP, VRRP, HSRP, PIM-SM, IGMP, Policy-Based Routing (PBR), Route Maps |
| Remote Protocols | Yes |
| Management Interfaces | Console (Serial RJ-45),USB Console,CLI (SSH/Telnet),Web UI (HTTPS),SNMP,NetConf,RESTCONF |
| Remote Management Protocol | SNMP,SSH,Telnet,HTTP,HTTPS,NetConf,RESTCONF |
| Routing Protocol | Static,RIP,OSPF,EIGRP,BGP,VRRP,HSRP,PIM-SM,IGMP |
| Power & Cooling | |
|---|---|
| Fans | 2 (field-replaceable, front-to-back airflow) |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.73 x 17.5 x 17.72 in |
| Weight | 5.00 |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Miscellaneous | |
|---|---|
| Compliance Standards | RoHS, CE, FCC, UL |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X, IEEE 802.3ad, IEEE 802.3az |
| Product Description |
|---|
The Cisco Catalyst 9200L-48T-4G-A is a versatile network switch designed to deliver reliable and high-speed connectivity for enterprise environments. It is commonly used in campus networks and branch offices to manage large amounts of data traffic efficiently. Built for IT professionals and network administrators, this switch offers robust Layer 3 routing features, allowing for effective traffic segmentation and enhanced network performance. It often finds its role in organizations looking to support growing network demands while maintaining security and flexibility. Key Features
This switch is typically deployed in enterprise campus networks or medium to large branch offices where reliable and scalable wired connectivity is essential. Its role in supporting both standard and high-speed connections helps keep network operations smooth and adaptable to evolving demands. |
