| Product Overview |
|---|

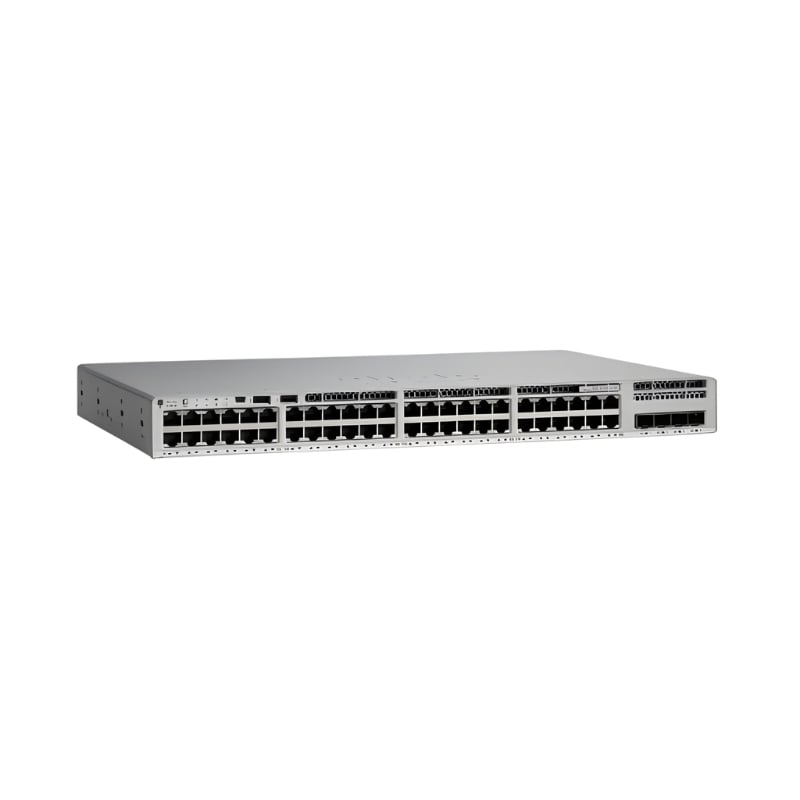

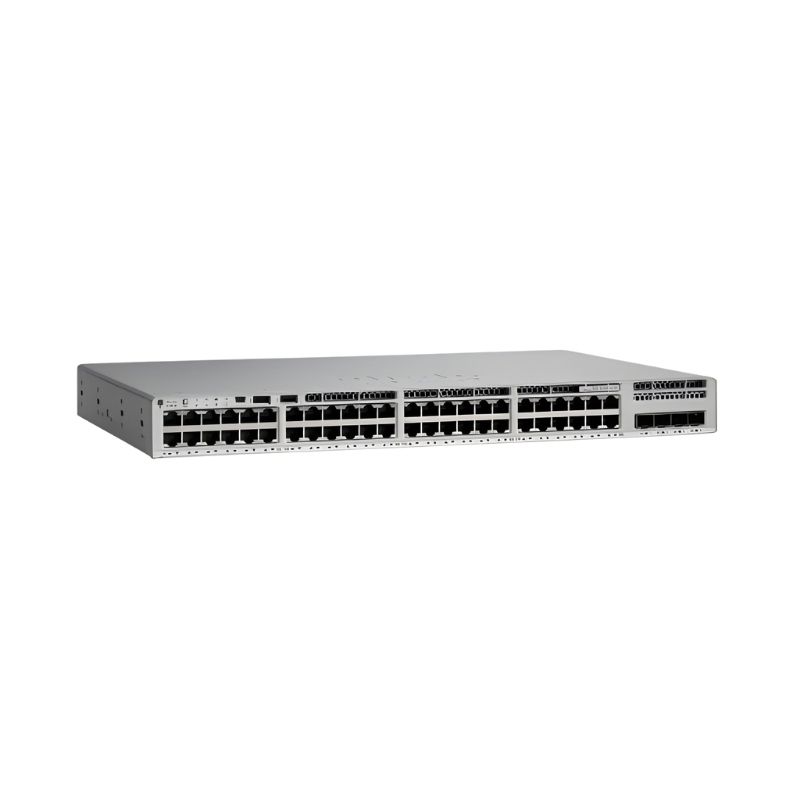

The Cisco Catalyst 9200L-48PL-4G-A is a versatile Layer 3 managed switch equipped with 48 gigabit Ethernet ports with PoE+ and four SFP uplinks, designed to support robust network infrastructures. It fits well in enterprise or campus settings where reliable connectivity and device powering are required, blending network management with flexible deployment options. |
| General Information | |
|---|---|
| Brand | Cisco |
| Part Number | C9200L-48PL-4G-A |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 48 |
| Number of Ports | 48-Ports |
| Port Type | 10/100/1000Base-T, SFP |
| Port Speed | 10/100/1000 Mbps |
| UpLink Ports | 4 x SFP (1G) |
| POE Support | PoE+ |
| Switching Capacity | 176 Gbps |
| Switch Forwarding Rate | 130.95 Mpps |
| DRAM | 4 GB |
| Flash Memory | 16 GB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 32000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, EIGRP, BGP, VRRP, HSRP, PIM-SM, IGMP |
| Remote Protocols | Yes |
| Management Interfaces | CLI (SSH), HTTPS Web UI, SNMP v2/v3, RADIUS, TACACS+, NETCONF, RESTCONF |
| Remote Management Protocol | SSH,Telnet,HTTPS,SNMPv2/SNMPv3,NETCONF,RESTCONF |
| Routing Protocol | Static, RIP, OSPF, EIGRP, BGP, VRRP, HSRP |
| Power & Cooling | |
|---|---|
| Fans | 1 (variable-speed, field-replaceable) |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.73 x 17.5 x 17.5 in |
| Weight | 5.00 |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Compliance Standards | WEEE, RoHS, cURus, CE, FCC, UL, TUV, cULus, CSA |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X, IEEE 802.3az |
| Product Description |
|---|
The Cisco Catalyst 9200L-48PL-4G is a Layer 3 managed switch designed to deliver reliable, high-performance network connectivity. It’s commonly used in medium to large business networks that need a solid foundation for data, voice, and video traffic. Built for IT teams looking for scalability and security, this switch supports Power over Ethernet Plus (PoE+) to power devices like IP phones and wireless access points directly through network cables. It’s often found in wiring closets or data centers where a mix of copper and fiber links is necessary. Key Features
These switches are typically deployed in enterprise campus networks, branch offices, and other environments where dependable network backbone and device powering are essential. They help keep network operations smooth by managing traffic and providing power delivery in one consolidated device. |
