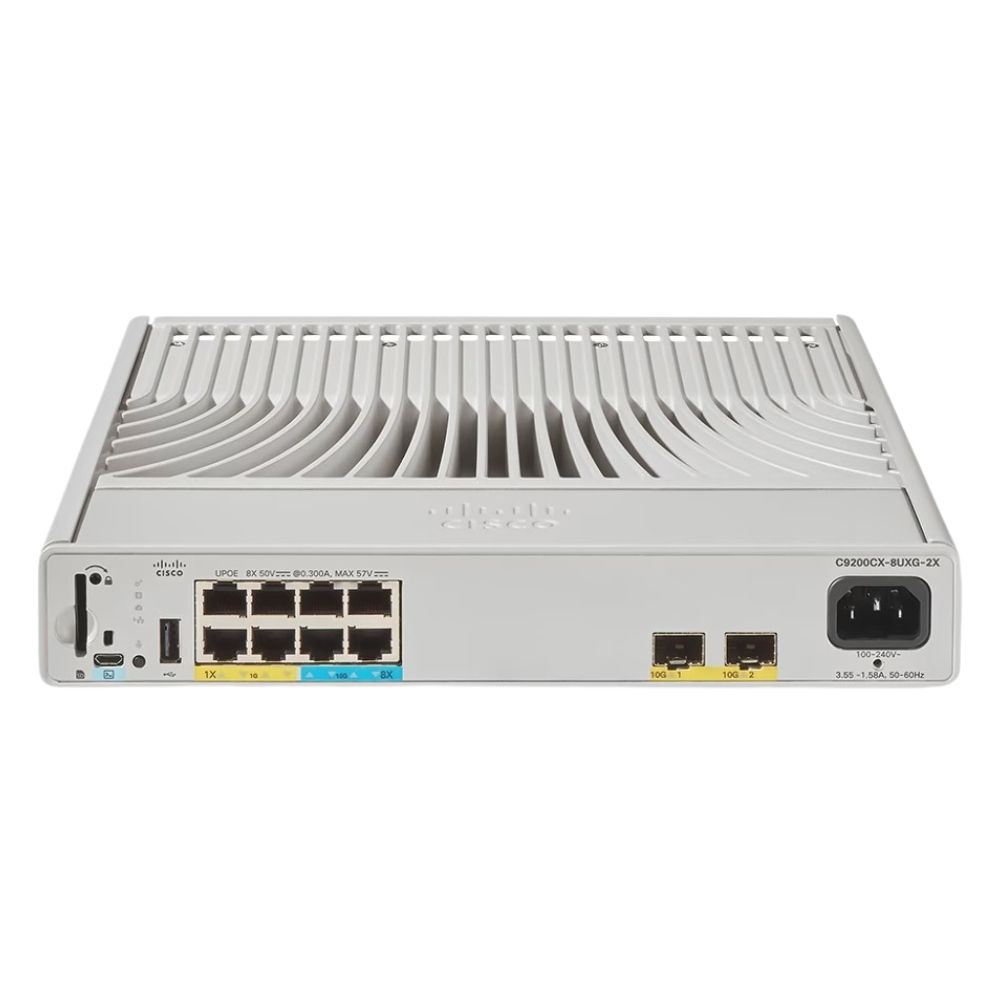

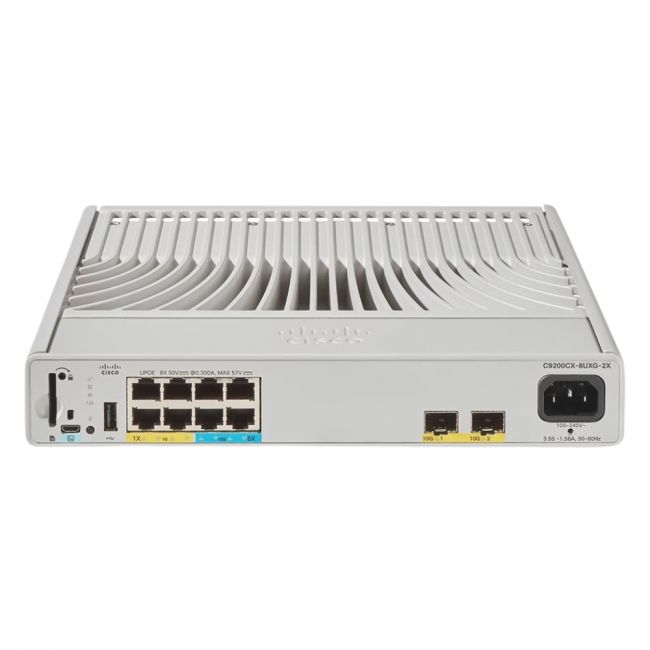

Name: C9200CX-8UXG-2X-A Cisco Catalyst 9200CX 8-Port Multigigabit PoE+ Switch
Brand: Cisco
SKU: C9200CX-8UXG-2X-A
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (125 reviews)

Product Overview
The Cisco Catalyst 9200CX 8-Port Multigigabit PoE+ Switch delivers enterprise access connectivity with eight Multigigabit Ethernet ports providing PoE+ support. It features two 10G SFP+ uplink ports and runs Cisco IOS XE with the Network Advantage software license, enabling advanced networking and security functionalities in a fixed and compact design.

General Information
Brand	Cisco
Condition	Refurbished

Technical Information
Switch Type	Layer 3, Managed Switch, PoE Switch, Gigabit Switch
Mount Type	Desktop
Switch Ports	8
Number of Ports	8-Ports
Port Type	10/100/1000Base-T, 10GBase-T, 2.5GBase-T, 5GBase-T, SFP+
Port Speed	1G,2.5G,5G,10G
UpLink Ports	2 x 10G SFP+
POE Support	PoE+
VLAN Support	Yes
Max VLANs Supported	1-4094
Layer Support	Layer 2, Layer 3
Connector Type	RJ-45,SFP+

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	32000

Management and Configuration
Routing Protocols	Static, RIP, RIPng, OSPF, OSPFv3, EIGRP, BGP, VRRP, HSRP, IGMP
Remote Protocols	Yes
Management Interfaces	CLI (SSH), Web UI (HTTPS), SNMP, NETCONF, RESTCONF, Console (RJ-45), USB
Security Features	802.1X, Port Security, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, ACLs
Management Type	CLI, Web UI, SNMP, NETCONF, RESTCONF
Remote Management Protocol	SSH, HTTPS, SNMP, NETCONF, RESTCONF

Power & Cooling
Fans	Fanless
Power	Internal AC 100-240V, 50-60Hz; PoE budget up to 240W
Power Supply	Internal AC power supply (100-240V)

Physical Characteristics
Weight	3.00
Operating Temperature	0°C to 40°C (32°F to 104°F)

Miscellaneous
Eco Friendly	Yes
Assembly Required	No
Compliance Standards	WEEE, RoHS, CE, FCC, cULus
Compliant Standards	IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3bz,IEEE 802.3ae,IEEE 802.1Q

Product Description
The Cisco Catalyst 9200CX 8-Port Multigigabit PoE+ Switch (C9200CX-8UXG-2X-A) is designed to deliver secure and efficient wired connectivity in enterprise access environments. It offers eight Multigigabit Ethernet ports capable of supporting Power over Ethernet Plus (PoE+), enabling connection and power delivery to devices like IP phones, wireless access points, and cameras. This switch incorporates two 10G SFP+ uplink ports to provide high-speed network aggregation or uplink flexibility. It operates on Cisco's IOS XE software with the Network Advantage license, offering advanced Layer 2 and Layer 3 features suitable for modern network demands. Key Features Eight Multigigabit Ethernet ports with PoE+ to power connected devices Two 10G SFP+ uplink ports for high bandwidth connections Cisco IOS XE operating system with Network Advantage license Fixed-configuration compact design ideal for access layer deployment Supports enterprise-grade security and network segmentation This switch provides a streamlined solution for organizations requiring robust connectivity at the access layer, simplifying deployment while supporting advanced networking features. Its PoE+ capability allows consolidated cabling by powering compatible devices directly through the switch ports.

Use Cases
This switch is commonly used in enterprise access networks to connect and power edge devices such as IP phones, wireless access points, and security cameras. It suits environments that require a combination of high-speed uplinks and robust PoE+ capabilities within a compact form factor. How It's Used: Connecting and powering edge devices in office or campus network access layers Aggregating traffic through 10G SFP+ uplinks to distribution or core switches Deploying in environments needing compact switches with multigigabit support Supporting network segmentation and security using Cisco IOS XE features Powering wireless access points requiring PoE+ for connectivity and power Providing consistent network performance in enterprise wiring closets or small communication rooms Overall, this switch acts as a critical component at the enterprise network edge, delivering both data connectivity and device power while supporting advanced software features to manage and secure network traffic.

FAQ's
What does the '8UXG' in C9200CX-8UXG-2X-A signify? The '8UXG' indicates the switch has eight Multigigabit Ethernet ports with 802.3at PoE+ support, suitable for powering connected devices while providing high-speed access connectivity. Which uplink ports are included in this switch? This model includes two 10G SFP+ uplink ports, allowing for high-bandwidth connections to aggregation or core network switches. What software runs on the Cisco Catalyst 9200CX switch? It operates on Cisco IOS XE with the Network Advantage feature set, offering advanced Layer 2 and Layer 3 networking capabilities. Can this switch provide power to wireless access points? Yes, the eight Multigigabit PoE+ ports can supply power to compatible devices such as wireless access points, IP phones, and security cameras. Is the Cisco 9200CX switch fixed or modular? This switch is a fixed-configuration model, meaning its ports and features are built-in and not expandable through modules. Where is this switch typically deployed? The switch is suited for enterprise access layer deployment, providing connectivity and power to edge devices within wiring closets or small communication rooms.
