| Product Overview |
|---|

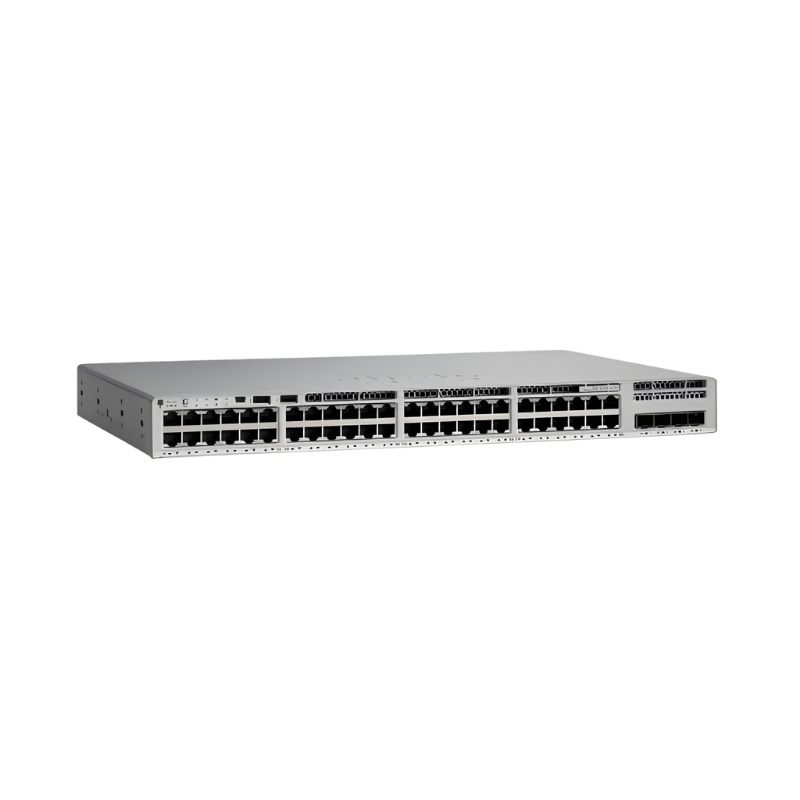

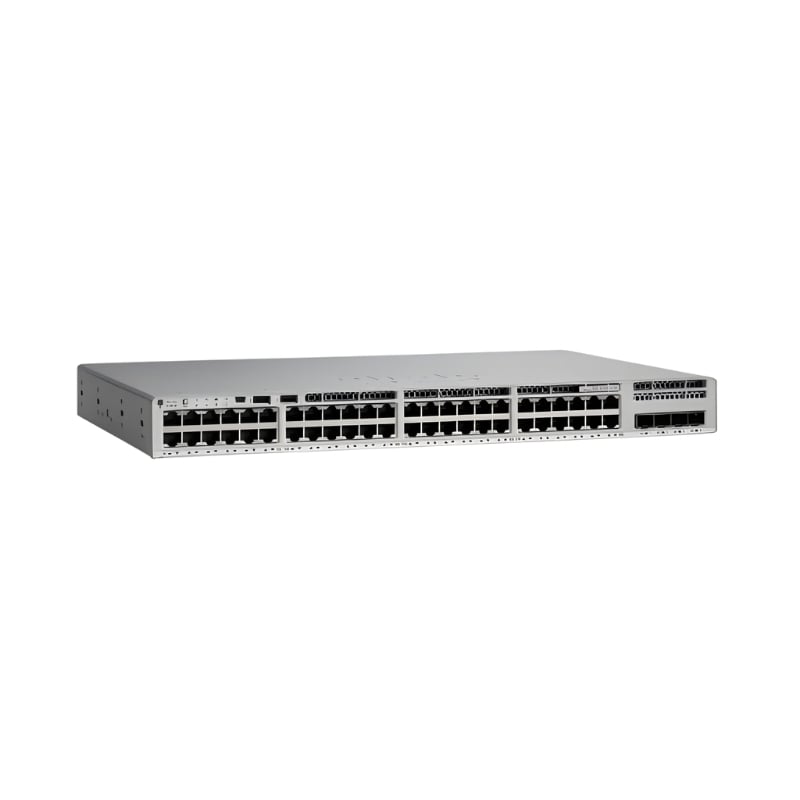

The Cisco Catalyst 9200 PoE+ 48-port switch offers managed gigabit Ethernet connectivity combined with power delivery for network devices. It fits neatly into enterprise environments where PoE capabilities and Layer 3 routing enhance the network's efficiency and flexibility without adding complexity. |
| General Information | |
|---|---|
| Brand | Cisco |
| Part Number | C9200-48PB-A |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 48 |
| Number of Ports | 48-Ports |
| Port Type | 10/100/1000Base-T, SFP+ |
| Port Speed | 10/100/1000Base-T |
| UpLink Ports | 4 (modular SFP/SFP+ uplinks, depends on uplink module) |
| POE Support | PoE+ |
| Switching Capacity | 176 Gbps |
| Switch Forwarding Rate | 130.95 Mpps |
| DRAM | 4 GB |
| Flash Memory | 16 GB |
| VLAN Support | Yes |
| Max VLANs Supported | 4094 |
| NIM Slot | 2 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP+ |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 32000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, RIPng, OSPF, OSPFv3, EIGRP, BGP, IS-IS, VRRP, HSRP, GLBP, PIM-SM, PIM-DM, IGMP, MLD, Policy-Based Routing (PBR), Route Maps |
| Remote Protocols | Yes |
| Remote Management Protocol | SSH,Telnet,SNMP,HTTPS,RESTCONF,NETCONF |
| Routing Protocol | Static,RIP,OSPF,EIGRP,BGP,VRRP,HSRP,PIM-SM,IGMP |
| Physical Characteristics | |
|---|---|
| Weight | 5.00 |
| Operating Temperature | 0°C to 40°C |
| Miscellaneous | |
|---|---|
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at |
| Product Description |
|---|
The Cisco Catalyst 9200 PoE+ switch is built for enterprise networks needing reliable power and data delivery over a single cable. It’s commonly used in office environments, campuses, and branch locations where devices like IP phones, wireless access points, and security cameras require both power and connectivity. This switch suits network admins and IT teams looking to simplify infrastructure while maintaining high performance and control. Its Layer 3 capabilities allow for efficient traffic routing and segmentation, making it a solid choice for growing networks. Key Features
This switch is typically deployed in medium to large corporate networks, enabling centralized power and connectivity for diverse devices. It plays a key role in modern network setups, balancing performance with ease of management. |
