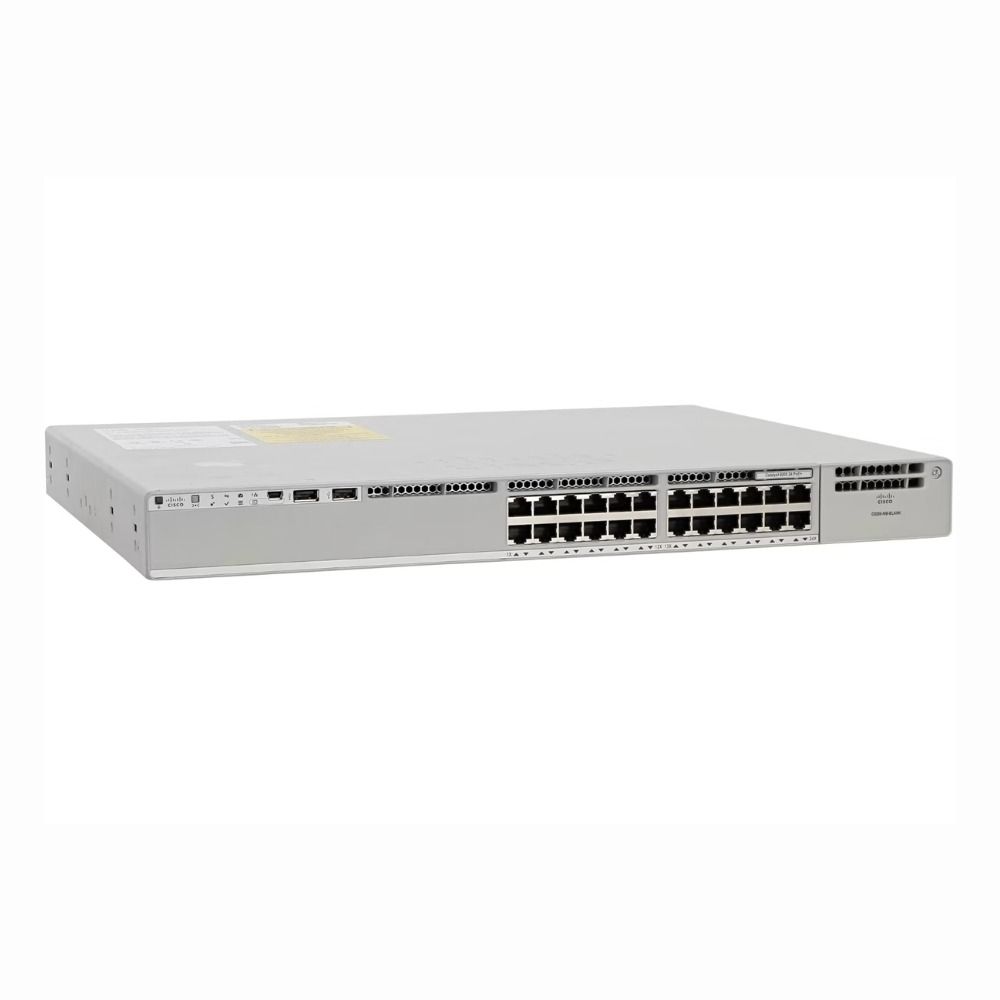

Name: C9200-24P-E Cisco Catalyst 9200 Series 9200-24P 24 x Ports PoE+ 10/100/1000Base-T Layer 3 Managed Rack-mountable Gigabit Ethernet Network Switch
Brand: Cisco
SKU: C9200-24P-E
Price: 1299.00 USD
Availability: InStock
Rating: 4.8 (130 reviews)

Product Overview
The Cisco Catalyst 9200-24P-E is a Layer 3 managed switch that delivers power and data across 24 ports in a compact rack-mountable unit. It fits well in enterprise networks where stable connectivity and centralized management are crucial, supporting modern networked devices efficiently without extra wiring complexity.

General Information
Brand	Cisco
Part Number	C9200-24P-E
Condition	Refurbished

Technical Information
Switch Ports	24
Number of Ports	24-Ports
Port Type	10/100/1000Base-T, SFP+
Port Speed	10/100/1000 Mbps
UpLink Ports	4 x 10G SFP+ uplinks
POE Support	PoE+
Switching Capacity	128 Gbps
Switch Forwarding Rate	250 Mpps (64-byte)
DRAM	4 GB
Flash Memory	4 GB
VLAN Support	Yes
Max VLANs Supported	1-4094
NIM Slot	1
Stackable	Yes
Layer Support	Layer 3
Connector Type	RJ-45,SFP+

Performance
Latency	~2.3 microseconds (64-byte frames, typical)
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	32000

Management and Configuration
Routing Protocols	Static, RIP, OSPF, OSPFv3, VRRP
Remote Protocols	Yes
Security	Yes
Routing Protocol	Static,OSPF

Power & Cooling
Fans	2 (field-replaceable, front-to-back airflow)
Power	AC 100-240V, 50-60Hz

Physical Characteristics
Dimensions	1.73 x 17.5 x 15.0 in (44.45 x 444.5 x 381 mm)
Weight	3.00
Operating Temperature	0°C to 40°C

Miscellaneous
Eco Friendly	Yes
Assembly Required	Yes
Compliance Standards	WEEE, RoHS, CE, FCC, UL, cULus, CSA
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3at (PoE+)

Product Description
The Cisco Catalyst 9200-24P is a robust managed switch designed to handle demanding network environments. It’s often found in medium to large business settings where reliable power over Ethernet and advanced network management are essential. Built for IT teams that require scalable and secure network infrastructure, this switch integrates well into existing network architecture. Key Features Offers 24 PoE+ ports delivering flexible power and data over a single cable Supports Layer 3 capabilities for routing and improved traffic management Enables seamless integration with Cisco's networking software for simplified management Designed to fit standard rack sizes, optimizing space in server rooms Provides robust security features to protect network integrity Typically deployed in enterprise wiring closets or campus networks, the C9200-24P helps maintain consistent network performance. Its ability to provide power to connected devices like IP phones and wireless access points reduces the need for additional power sources, simplifying setup and maintenance.

Use Cases
The Cisco Catalyst 9200-24P-E switch is ideal for enterprise campus networks requiring reliable power delivery and data connectivity in a compact form factor. IT teams managing mid-sized office buildings and branch locations benefit from its Layer 3 capabilities and PoE+ support to streamline network infrastructure. How It's Used: Deploying in branch office environments to support VoIP phones and wireless access points with centralized power and data management. Integrating into enterprise wiring closets to enable segmented VLANs and Layer 3 routing for efficient traffic management. Utilizing in education campuses to provide reliable, high-speed connections for classrooms and administrative systems. Implementing in retail store networks to power IP surveillance cameras and point-of-sale systems with simplified network topology. Supporting edge computing nodes where localized switching with PoE+ is essential for IoT device connectivity and management. This switch enhances operational efficiency by consolidating power and data delivery while enabling scalable network segmentation and routing. Its rack-mountable design and advanced features suit evolving enterprise environments demanding resilient and manageable infrastructure.
