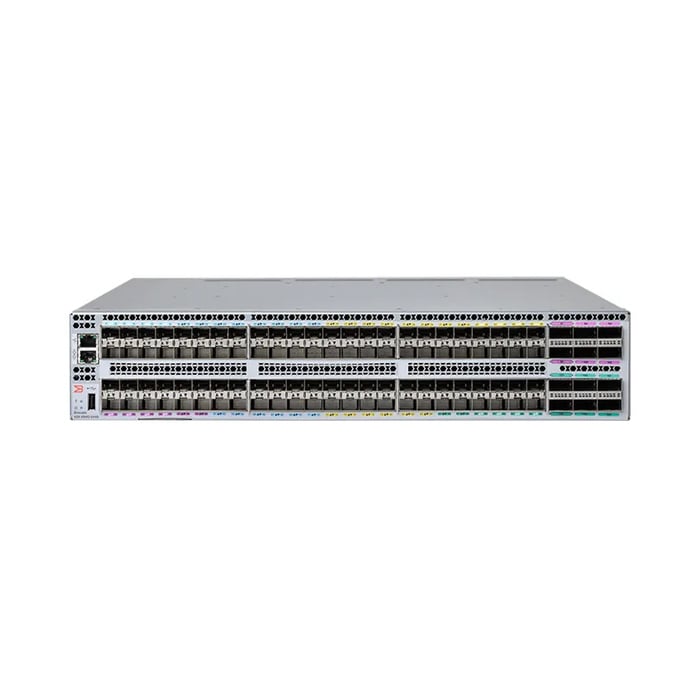

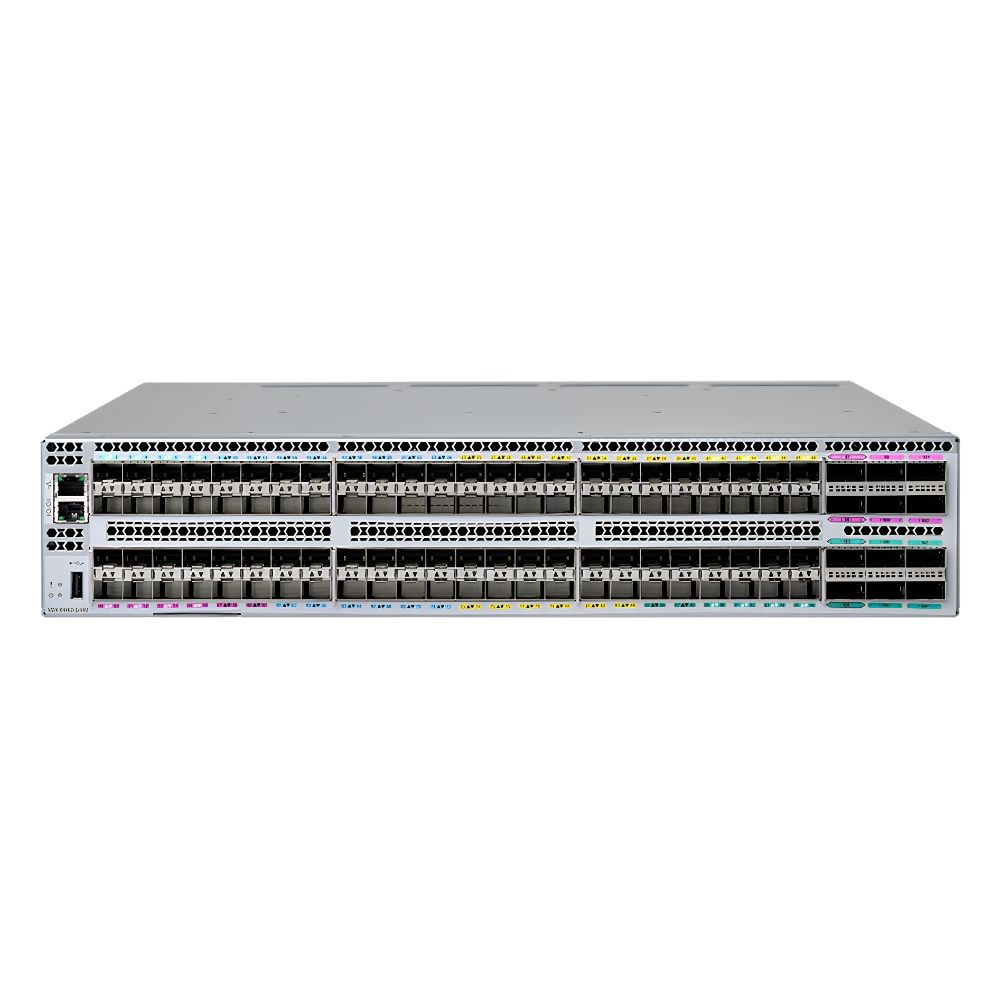

Name: BR-VDX6940-144S-AC-F Brocade 96 SFP+ 10GbE 12 QSFP+ 1U Rack Switch
Brand: Brocade
SKU: BR-VDX6940-144S-AC-F
Price: 2219.78 USD
Availability: InStock
Rating: 4.8 (116 reviews)

Product Overview
The BR-VDX6940-144S-AC-F offers dense 10GbE connectivity with a mix of SFP+ and QSFP+ ports, allowing flexible high-speed uplink configurations. It fits into standard 1U racks and features front-to-back airflow to align with data center cooling strategies. This switch is engineered to meet the demands of network environments that prioritize port density, speed, and efficient thermal management.

General Information
Brand	Brocade
Condition	Refurbished

Technical Information
Switch Type	Layer 2, Layer 3, Managed Switch, Stackable Switch, Gigabit Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Switch Ports	SFP+,QSFP+
Number of Ports	96-Ports
Port Type	10G SFP+, QSFP / QSFP+, USB Console, Serial Console (RJ-45)
Port Speed	10 Gbps,40 Gbps
UpLink Ports	12 x QSFP+
POE Support	No
Switching Capacity	2.88 Tbps
Switch Forwarding Rate	5,625,000,000 packets per second (64-byte frames)
DRAM	8 GB
Flash Memory	16 GB
VLAN Support	Yes
Max VLANs Supported	1-4094
Stackable	Yes
Layer Support	Layer 2, Layer 3
Connector Type	SFP+,QSFP+

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	160000

Management and Configuration
Routing Protocols	Static, RIP, OSPF, OSPFv3, BGP, VRRP, HSRP, PIM-SM, IGMP
Remote Protocols	Yes
Management Interfaces	CLI (Console/SSH), Web GUI, SNMP v1/v2c/v3, RMON, Out-of-band management (RJ-45), USB
Security Features	ACLs, RADIUS, TACACS+, SSH, IP Source Guard, DHCP Snooping, Dynamic ARP Inspection, Storm Control, BPDU Guard
Management Type	Managed
Remote Management Protocol	SSH,SNMPv1/v2c/v3,Telnet,HTTPS,REST
Routing Protocol	Static,OSPF,BGP

Power & Cooling
Fans	Front-to-back hot-swappable redundant fans
Power	AC 100-240V, 50-60Hz
Power Supply	Hot-swappable AC power supply (redundant capable)

Physical Characteristics
Dimensions	1.72 x 17.3 x 18.9 in
Weight	3.00
Operating Temperature	0°C to 40°C (32°F to 104°F)

Miscellaneous
Eco Friendly	Yes
Assembly Required	No
Compliance Standards	WEEE, RoHS, CE, FCC, UL, TUV, cULus
Compliant Standards	IEEE 802.1Q, IEEE 802.1D, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.1s

Product Description
The BR-VDX6940-144S-AC-F is a high-capacity Ethernet switch built to deliver robust 10GbE and 40GbE connectivity. Often found in data centers and enterprise network infrastructures, it caters to environments requiring dense port configurations and efficient airflow management. Network engineers and IT administrators commonly use this switch to support demanding network loads and scalable deployments. Key Features High-density 10GbE connectivity across 96 SFP+ ports Flexible uplink options with 12 QSFP+ ports providing 40GbE bandwidth Front-to-back airflow engineered for effective cooling in rack environments 1U form factor designed for space-efficient rack integration Designed to handle heavy data traffic with low latency and high throughput This switch serves as a critical component in networks that require reliable and scalable Ethernet switching capacity. Its design supports continuous operation under intense workloads, maintaining network stability and performance. The airflow and compact form factor also contribute to maintaining optimal operating temperatures and efficient use of rack space.

Use Cases
The BR-VDX6940-144S-AC-F is typically deployed in data centers and enterprise networks where high port density and fast uplink speeds are critical. It supports environments that require compact, efficient rack-mounted switches with effective cooling for continuous operation. IT teams managing virtualization platforms and storage clusters find this switch valuable for scalable network architectures. How It's Used: Provides core switching in data centers with dense 10GbE and 40GbE connectivity needs Supports aggregation layers in enterprise IT networks requiring high throughput Integrates into virtualized environments to handle east-west traffic efficiently Facilitates edge computing setups demanding compact and reliable switches Enables high-speed connections for storage clusters and backup systems This switch enhances operational efficiency by delivering consistent performance under heavy loads while fitting into standard rack deployments. Its design promotes scalability and reliability, which are essential for evolving network infrastructures.
