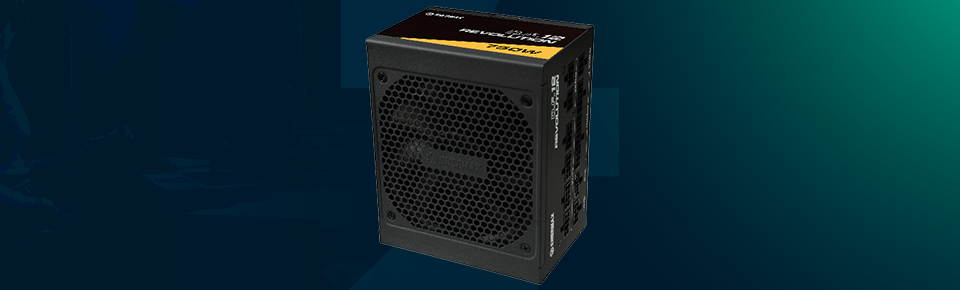

Enermax Revolution D.F. 12 750W ATX 3.1 PSU Review | Compact Powerhouse

Power supplies don’t usually grab attention, yet the Enermax Revolution D.F. 12 750W ATX 3.1 quietly makes a case for itself. It’s compact, forward-ready, and surprisingly refined for a midrange PSU. With ATX 3.1 compliance, solid efficiency, and a no-nonsense design, it’s aimed squarely at builders who want something that just works - no fuss, no fanfare. Enermax seems to have built this one for those who prefer reliable engineering over shiny marketing. Let’s see if this unit really earns its “revolution” title.

Before we dive into how it performs, here’s what’s under the hood. The Revolution D.F. 12 750W follows Intel’s ATX 3.1 and PCIe 5.1 standards, which means it’s ready for modern GPUs that use the safer 12V-2x6 connector - the refined version of the old 12VHPWR plug that gave a few people headaches. Some key details worth noting:

·         It delivers 750 W continuously at up to 50 °C.

·         It’s 80 PLUS Gold certified; users feedback reveals ~92.1 % peak efficiency at 230 V and ~90.0 % average across loads at 115 V.

·         Fully modular with flat black cables, so your build stays clean.

·         115 mm Dust Free Rotation [D.F.R.] fan using industrial dual-ball bearings.

·         Primarily uses industrial-grade Japanese capacitors, with reputable brands like Rubycon and Nippon Chemi-Con in key locations.

·         At only 122 mm in depth, it is currently the smallest ATX 3.1 PSU on the market.

·         Add in a full set of protections [OVP, OCP, OPP, SCP, OTP] and a 10‑year warranty.

For a midrange PSU, this is a feature-rich package. On paper, it comfortably goes toe-to-toe with competitors from Corsair, be quiet! and Seasonic.

The Revolution D.F. 12 shows that Enermax still knows how to build a durable PSU. Because it’s an in-house design, the quality control stays tight. You’ll notice a clean PCB layout, solid soldering, and good airflow paths. In teardowns, users observed well-spaced components and clever thermal routing-no clutter or hot spots.

All capacitors mainly use industrial-grade Japanese technology, with reputable brands like Rubycon and Nippon Chemi-Con in key locations, which boosts reliability. The transformer and polymer caps on the secondary side help keep ripple low, ensuring your connected parts get smooth power. It’s not over the top, but every component feels intentional, solid, and meant to last.

When it comes to performance, this PSU really holds its own. Efficiency hovers around 91–92% at half load [230V] and stays above 89% at 115V, which lines up nicely with its Cybenetics Gold rating. Voltage control is solid too-the 12V rail stays within ±0.8 % variation.

From what real users have reported, the hold-up time averages about 12ms, well within ATX standards. More essentially, it maintains a stable output even during heavy GPU spikes-especially with power-hungry cards like the RTX 4080 or RX 7900 XT. That’s primarily due to the ATX 3.1 design updates, which manage those sudden power swings much more smoothly.

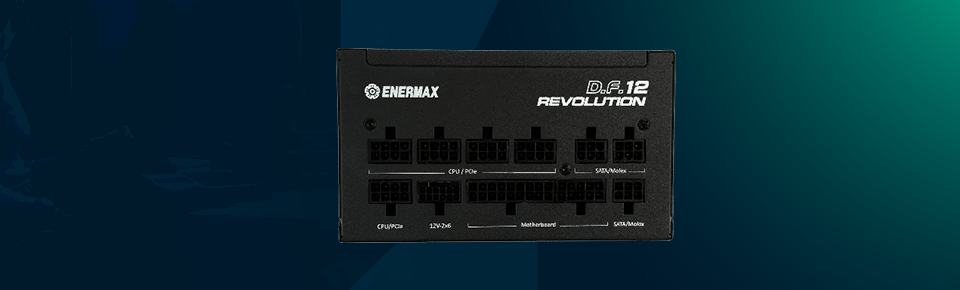

Enermax clearly had system builders in mind. A fully modular design means you only plug in what you need. Flat black cables bend easily and fit cleanly in tight cases, and all connectors click in securely. Cable bundle includes:

• 1 × 24-pin ATX
• 2 × 8-pin EPS [CPU)
• 3 × PCIe 6+2 [8-pin] connectors, plus 1 × native 12V-2×6 GPU connector [native 12V-2×6 avoids adapters)
• 8 × SATA
• 3 × Molex

The lengths are generous, even for large E-ATX builds. Because the PSU is short [122 mm), it gives you extra room for airflow behind it. Including a native 12V-2×6 connector [instead of adapters]is a smart move — it aligns with NVIDIA’s guidance for native high-power GPU connectors and reduces the risk of cable stress or overheating. All in all, setup feels smooth and cable management ends up easier than many units.

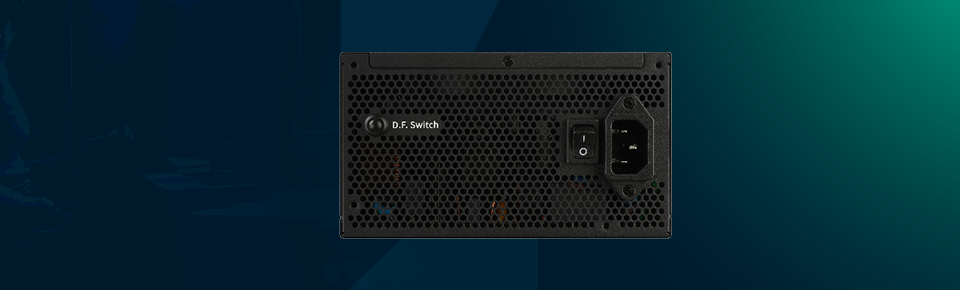

Enermax’s Dust-Free Rotation [D.F.R.] fan is one of the more underrated features here. At startup, the fan spins backward briefly to expel dust before returning to normal direction-a simple but effective idea for keeping things clean over time.

In everyday use, the PSU stays whisper-quiet. Under light to moderate loads [below 300W), the fan remains off under lighter loads; in practice, it begins spinning near ~300 W depending on ambient conditions. When it does kick in, it’s nearly silent, typically around 28–30 dB[A]during gaming-barely audible in most setups. Even at 80% load, internal temperatures hover around 45°C, with less than a 1% drop in efficiency.

Under full synthetic load the fan becomes audibly loud – practical users share in their feedback that it approaches high noise levels [exact dB depends on ambient). Overall, the thermal performance and acoustic profile strike a great balance for quiet, high-efficiency builds.

Safety-wise, Enermax checked all the right boxes. The Revolution D.F. 12 includes OVP, OCP, OPP, SCP, and OTP, protecting against power surges, shorts, and overheating.

Reports from users and feedback data suggest that OPP is configured to tolerate excursions well above nominal [up to 235 %] before shutting down, with clean cut-off behavior Once triggered, recovery is immediate with no lingering voltage-proof of a well-calibrated protection system. This kind of safety precision is what makes a PSU not just good on paper but trustworthy in real-world conditions.

With a price tag hovering around $129–$139, the Revolution D.F. 12 750W sits right in the sweet spot between budget and premium. It competes directly with units like the Corsair RM750e, ASUS TUF 750W, and be quiet! Pure Power 12M - but with a few quality-of-life perks those sometimes skip. This PSU feels built for users who think ahead - the kind of people who upgrade GPUs every few years but don’t want to replace their PSU each time.

It’s strong enough for setups with RTX 4070-4080 cards or high-end Ryzen and Intel chips. It runs quiet, runs cool, and the 10-year warranty seals the deal. If Tech Atlantix had to sum it up, we’d call it “smart engineering with purpose.”

When you line up everything this PSU offers, the trade-offs become clear. The Revolution D.F. 12’s efficiency, safety, and build quality make it an excellent mid-tier choice, though it’s not perfect.

Pros:

·                     High efficiency [Cybenetics Gold]

·                     Fully modular and compact 122mm design

·                     Native 12V-2x6 connector [safe for next-gen GPUs]

·                     Quiet operation under moderate loads

·                     Quality Japanese capacitors and 10-year warranty

Cons:

·                     Limited availability in some regions

·                     Fan becomes audible near full load

·                     Slightly pricier than older Gold-rated models

Overall, the pros easily outweigh the cons, especially for builders who value a clean setup, reliability, and next-gen readiness in one unit.

The Enermax Revolution D.F. 12 750W doesn’t try to oversell-it just delivers. It’s compact, efficient, and well thought out to support modern hardware with quiet confidence. For gamers, creators, and serious system builders alike, it strikes a rare balance: solid performance, silence, and long life. You don’t buy it to show off. You buy it because it works-and keeps working. In a market full of flashy gear, its quiet dependability might be the most impressive trait of all.
