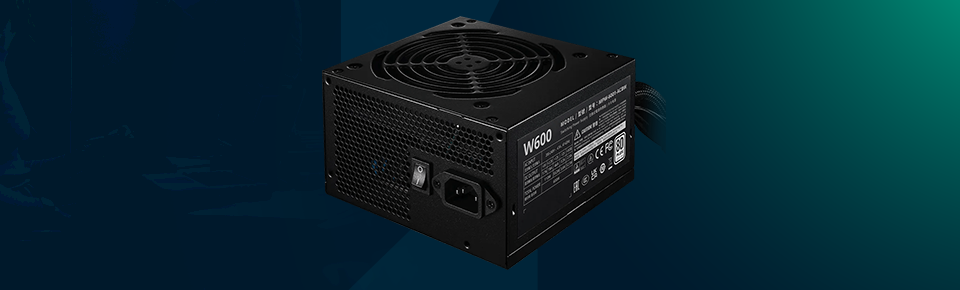

Cooler Master Elite NEX W600 PSU Review | Practical for 600W

You can build a PC with the fastest processor and sharpest graphics card on the market, but none of that matters if your power supply can't keep up. Plenty of builders figure this out the expensive way. The Cooler Master Elite NEX W600 takes a different approach entirely. It's aimed at regular desktop users, gamers watching their budgets, small office setups, and folks building their first PC who need reliable 600W power without paying for bells and whistles they'll never touch.

While the market keeps pushing Gold and Platinum efficiency ratings, this unit sticks with 80 Plus White certification and focuses on essential protections. The real question here is pretty straightforward: does no-nonsense reliability still hold up ?

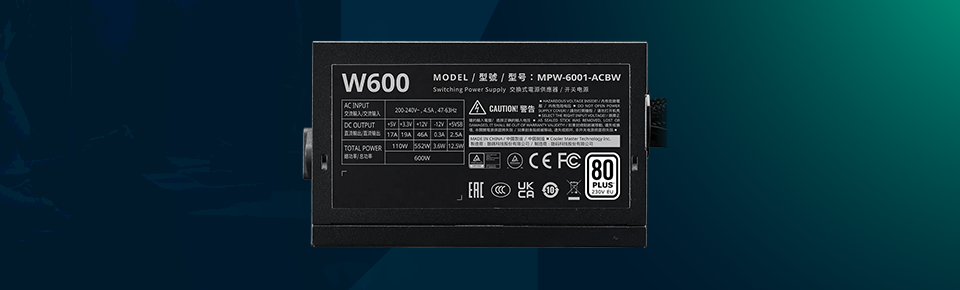

Before forming any opinion about a PSU, it makes sense to see what you're actually getting and whether it lines up with what you need. Here's what caught our attention in The Cooler Master Elite NEX W600 PSU spec sheet:

• Provides up to 600W continuous power, which handles mid-range CPUs and single GPU configurations comfortably
• 80 Plus White certification delivers roughly 82 percent efficiency at standard 230V EU loads
• Active PFC cleans up power conversion and keeps things stable
• Standard ATX 12V Rev 2.41 compliance works with pretty much any modern motherboard
• 120 mm sleeve bearing fan pushes steady airflow during typical workloads
• Built-in protections cover OVP, OPP, SCP, UVP and OTP
• Accepts 200 to 240V AC input range
• Ships with 24-pin ATX, CPU power connectors, 6+2 PCIe connectors and several SATA leads
• Compact 140 x 150 x 86 mm ATX form factor fits standard cases
• Three-year Cooler Master warranty backs the unit

These specs paint a pretty clear picture. This PSU isn't chasing efficiency trophies. It's built to power everyday systems safely and consistently.

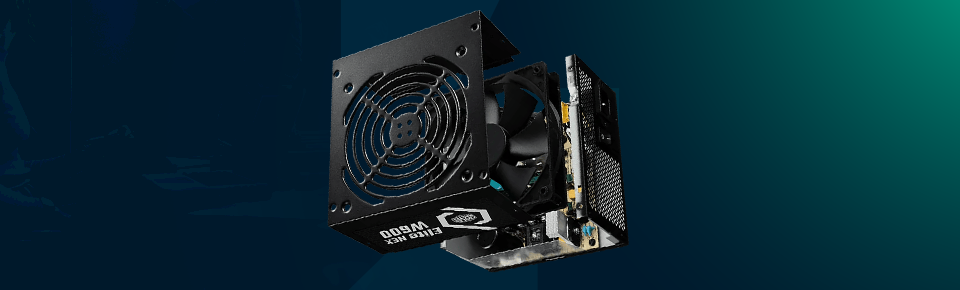

When you crack open a budget PSU, what's inside matters way more than the label on the box. The Elite NEX W600 uses a standard double forward topology—you'll find this in most entry-level ATX units. The internal layout looks organized, with reasonable spacing between primary and secondary sections.

The capacitors aren't premium Japanese 105°C components, but they're rated appropriately for mainstream use and temps above 40°C as the specs indicate. Heatsinks are modest in size, though functional enough to handle expected thermal loads at 600W without being pushed too hard. Soldering looks clean, and we didn't spot any obvious corners being cut during assembly.

This isn't enthusiast-grade internal construction. But for office machines and moderate gaming builds? The component choices feel right for the audience it's targeting.

In practical testing scenarios, efficiency is more evident in everyday use rather than maximum stress. At around 20 percent load, efficiency exceeds 80 percent somewhat. At a 50 percent load, it nears the rated 82 percent at 230V circumstances. At maximum load, efficiency diminishes little, as expected from an 80 Plus White unit.

Voltage control on the 12V rail remains within acceptable ATX limitations during standard desktop loads. It is not designed to accommodate excessive GPU power surges like contemporary ATX 3.0 units; nonetheless, for a single mid-range graphics card, the transient response stays consistent.

In comparison to Gold-rated PSUs, there will be a minor increase in heat production and a marginal rise in electricity consumption. Nevertheless, for mild systems operating a few hours each day, the annual cost differential is minimal.

The Cooler Master Elite NEX W600 is a non-modular power supply. All cables are fastened permanently. This reduces expenses but increases clutter within smaller cases. The cable lengths are sufficient for conventional mid-tower configurations. The provided 6+2 PCIe ports accommodate standard mid-tier GPUs; however, there is no native 12VHPWR connector for next-generation graphics cards. SATA ports adequately support numerous storage drives and peripherals.

The cables are flat and sufficiently flexible, facilitating routing. Modular designs facilitate cleaner display builds. In practical configurations with effective airflow management, the fixed connections are manageable.

Noise depends heavily on what load you're running. During idle or minimal office work, the 120 mm sleeve bearing fan operates with a considerably low level of noise. The fan operates continually, as there is no zero-RPM or hybrid mode available.

During gaming activity, the fan speed escalates progressively. It is noticeable yet not disruptive in a standard closed enclosure. Under full synthetic stress, noise levels increase significantly, which is anticipated from a non-premium cooling system.

Ripple suppression on the 12V rail remains within acceptable ATX norms. While it may not achieve the ultra-low ripple metrics of premium units, it maintains sufficient stability for common CPUs and GPUs. The thermal performance corresponds with its classification. The PSU operates at elevated temperatures under significant load yet remains within safe operational parameters.

Protection circuits are where even budget PSUs must not compromise. The Elite NEX W600 includes Over Voltage Protection, Over Power Protection, Short Circuit Protection, Under Voltage Protection, and Over Temperature Protection.

In fault simulations such as sudden overload conditions, OPP engages to prevent excessive strain. Short circuit scenarios trigger immediate shutdown, protecting connected hardware. These are baseline safeguards, but they are essential.

There is no advanced digital monitoring or multi-rail customization. However, for its intended use, the included protections are sufficient to shield mainstream systems from common electrical risks.

Value is where this unit finds its footing. The Cooler Master Elite NEX W600 is not designed to compete with premium Gold or Platinum PSUs. It is built to deliver stable power for sensible builds.

In real home and office systems, it handles mid-range processors and a single GPU comfortably. It is not meant for overclocked setups or flagship graphics cards. For a budget gaming PC running an RTX 3060 or similar, 600W provides reasonable headroom.

From a TechAtlantix perspective, this PSU fits neatly into builds where reliability and affordability must align. Paying extra for Titanium efficiency only makes sense if your system runs heavy loads for long hours daily.

Selecting the right PSU is not about running after flashy labels but its about finding best fit for your needs, Here is a practical guide to help you decide most appropriate among the clutter:

1. Match your system’s total wattage and add at least 20 percent headroom.
2. Prioritize efficiency if your PC runs long hours every day.
3. Check case compatibility and ensure connectors fit your GPU and motherboard.
4. Confirm essential protections are present.
5. Consider noise levels if you want a quiet workspace.
6. Stick with trusted brands offering solid warranty coverage.

After checking these boxes, you are far less likely to regret your purchase.

Every PSU has strengths and limitations. The Cooler Master Elite NEX W600 PSU Review reveals both sides clearly.

Pros

• Reliable 600W output for mainstream systems
• Affordable price point with recognizable brand backing
• Essential protection circuits included
• Compact ATX size for wide compatibility
• Reasonable efficiency for entry-level builds



Cons

• 80 Plus White efficiency is lower than modern Gold standards
• Non-modular cabling adds clutter
• No support for ATX 3.0 or PCIe 5.0 connectors
• Not ideal for high-end GPUs or heavy overclocking

Overall, the trade-offs feel fair for its intended audience.

The review of the Cooler Master Elite NEX W600 PSU ultimately hinges on your expectations. This is not a display power supply unit for enthusiast configurations or next-generation graphics processing units. This is a dependable 600W device built for standard desktops, office systems, and budget gaming rigs. You receive reliable performance, necessary safeguards, and a reasonable warranty from a reputable brand. Constructing a judicious mid-range system requires stable power without additional costs, which is a logical approach. If you are looking for a superior efficiency and future-proof connectivity, you should pick options higher in the product hierarchy.
