Product Overview |
|---|

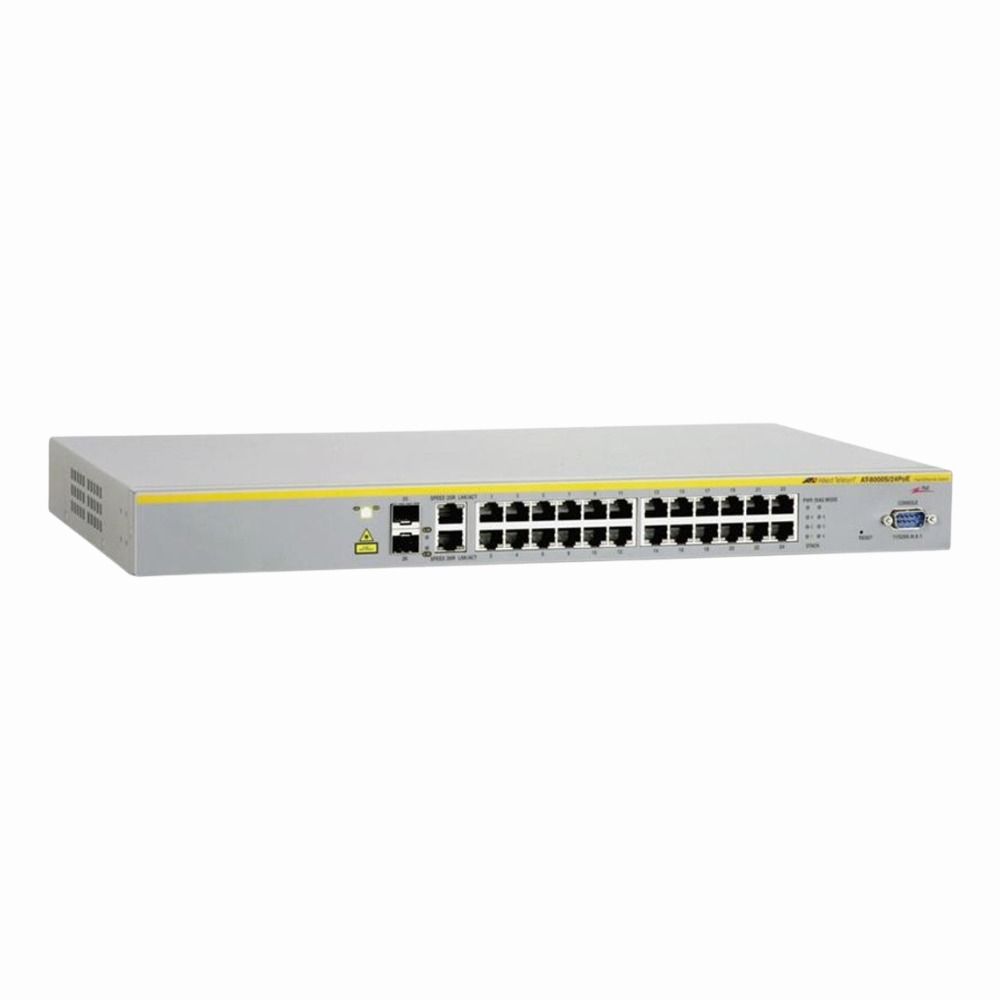

The AT8000S/24POE Allied Telesis switch acts as a centralized hub providing 24 Ethernet ports with Power over Ethernet capabilities, suited for environments needing to connect multiple powered devices efficiently. It fits well in small to medium-sized networks, offering both data connectivity and power supply over a single cable, which eases installation and management tasks. |
General Information |
|
|---|---|
| Brand | Allied Telesis |
| Part Number | AT8000S/24POE |
| Condition | Refurbished |
Technical Information |
|
|---|---|
| Switch Type | Managed Switch |
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack |
| Switch Ports | 24 |
| Number of Ports | 24-Ports |
| Port Type | 10/100Base-T |
| Port Speed | 10/100 Mbps |
| UpLink Ports | 2 |
| POE Support | PoE |
| Switching Capacity | 12.8 Gbps |
| Switch Forwarding Rate | 9.52 Mpps |
| DRAM | 64 MB RAM |
| Flash Memory | 16 MB Flash |
| VLAN Support | Yes |
| Max VLANs Supported | Up to 4,096 VLANs |
| Stackable | No |
| Layer Support | Layer 2 |
| Connector Type | RJ-45, SFP Combo |
Performance |
|
|---|---|
| MAC Address Table Size | 8000 entries |
Management and Configuration |
|
|---|---|
| Remote Protocols | Web GUI, CLI, SNMPv1/v2c/v3 |
| Management Interfaces | Web (HTTP/HTTPS),CLI (Telnet/SSH),SNMP |
| Security Features | 802.1x, RADIUS, Port Security, MAC Filtering |
| Security | 802.1X,Port Security,ACLs,RADIUS |
| Remote Management Protocol | SNMP,HTTP,HTTPS,SSH,Telnet |
Physical Characteristics |
|
|---|---|
| Dimensions | 43 x 440 x 257 mm |
| Weight | 4.00 |
| Operating Temperature | 0°C to 45°C |
Miscellaneous |
|
|---|---|
| Compliance Standards | WEEE, RoHS, CE, FCC, UL |
| Compliant Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.1Q,IEEE 802.1p,IEEE 802.3af |
Product Description |
|---|
The AT8000S/24POE is an Ethernet switch designed to connect multiple devices within a network, delivering both data and power through its PoE-enabled ports. Often found in office environments or small business setups, it simplifies network infrastructure by reducing the need for separate power cables. Built for network administrators and IT professionals managing devices like IP phones, wireless access points, or security cameras, this switch helps streamline deployment and maintenance. Key Features
This model is typically deployed in office networks, retail environments, or any location where multiple PoE devices need centralized management. Its capability to supply power along with data helps reduce clutter and simplifies network setups. Users benefit from easier expansion and reliable performance without the complexity of running additional power lines, making network upgrades or expansions more straightforward. |
