| Product Overview |
|---|

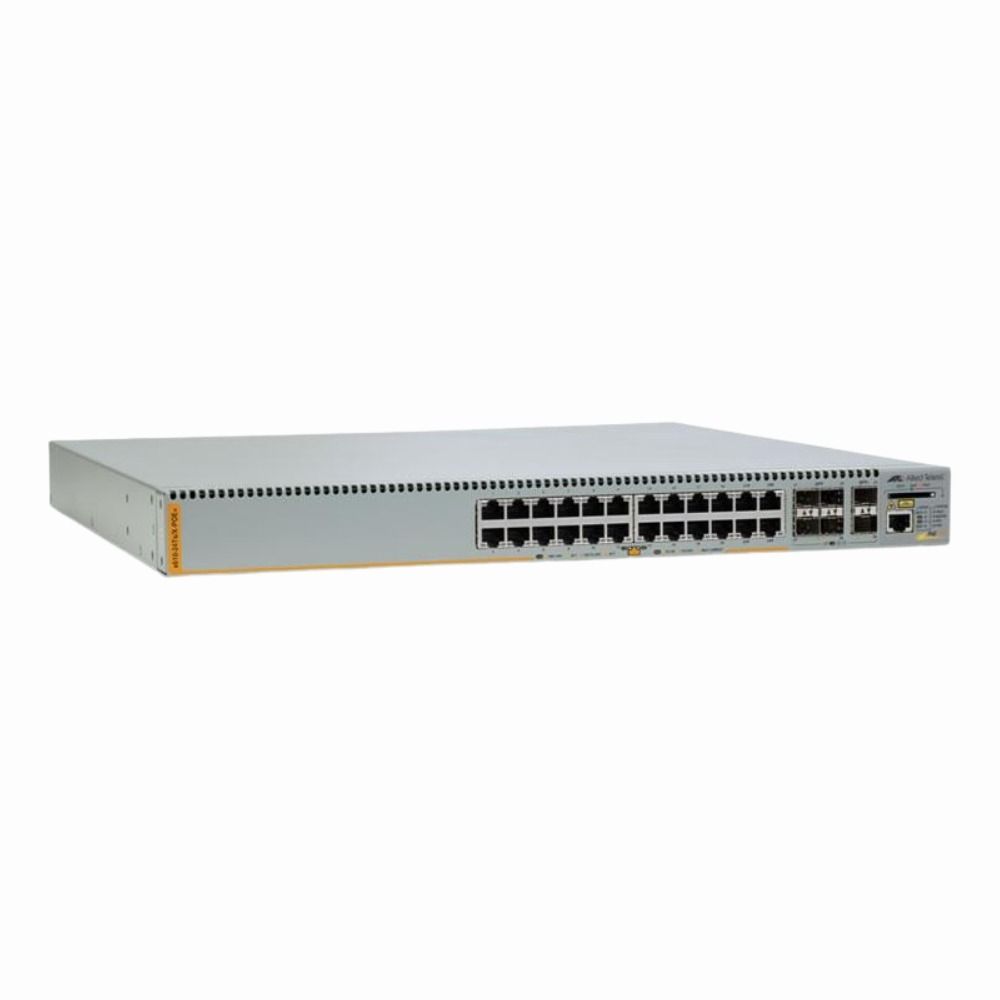

The Allied Telesis AT-X610-24TS is a stackable Layer 3 managed switch designed to provide reliable gigabit connectivity with PoE+ power delivery. It's commonly used in business networks that require flexible and scalable solutions, offering advanced routing and management features to support a growing number of connected devices while maintaining network performance and control. |
| General Information | |
|---|---|
| Brand | Allied Telesis |
| Part Number | AT-X610-24TS |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Type | Managed Switch |
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack |
| Switch Ports | No |
| Number of Ports | 28-Ports |
| Port Type | 10/100/1000Base-T, SFP |
| Port Speed | 10/100/1000 Mbps |
| UpLink Ports | 4 x combo SFP |
| POE Support | PoE+ |
| Switching Capacity | 128 Gbps |
| Switch Forwarding Rate | 95.2 Mpps |
| DRAM | 1 GB |
| Flash Memory | 128 MB |
| VLAN Support | Yes |
| Max VLANs Supported | Supports up to 4,094 VLANs |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | RJ‑45, SFP |
| Performance | |
|---|---|
| Latency | <5µs |
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 16,000 entries |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, BGP, VRRP |
| Remote Protocols | SNMP v1/v2c/v3, Telnet, SSH, HTTP/HTTPS, Allied Telesis Management Framework |
| Management Interfaces | CLI, Web GUI, SNMP |
| Security Features | IEEE 802.1X, RADIUS, TACACS+, ACLs, Storm Control |
| Security | 802.1X, ACLs, RADIUS, TACACS+, SSH, HTTPS/SSL, Port Security, DHCP Snooping, IP Source Guard, Storm Control |
| Remote Management Protocol | SNMPv1/v2c/v3, RMON, SSH, Telnet, HTTP/HTTPS, Syslog, SNTP |
| Routing Protocol | Static Routing, RIP v1/v2 |
| Power & Cooling | |
|---|---|
| Fans | Yes (variable-speed, front-to-back) |
| Power | AC 100-240V, 50-60Hz; PoE budget ~370 W |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.72 x 17.32 x 13.19 inches |
| Weight | 13.00 |
| Operating Temperature | 0°C to 45°C |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Compliance Standards | RoHS, CE, FCC, UL, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at |
| Product Description |
|---|
The AT-X610-24TS is a versatile managed switch designed to handle demanding network environments. It delivers 24 high-speed ports with Power over Ethernet Plus (PoE+) to power devices like IP phones, cameras, and access points directly through the network cable. Often found in medium to large business networks, this switch provides robust Layer 3 routing to support complex traffic flows and VLAN segmentation. It's built for IT teams that need reliable performance and flexible network architecture. Key Features
This switch is typically deployed in enterprise offices, data centers, or campus environments where multiple devices require both data and power connections. It helps reduce cabling complexity and keeps critical network infrastructure running smoothly with built-in redundancy and monitoring tools. |
