| Product Overview |
|---|

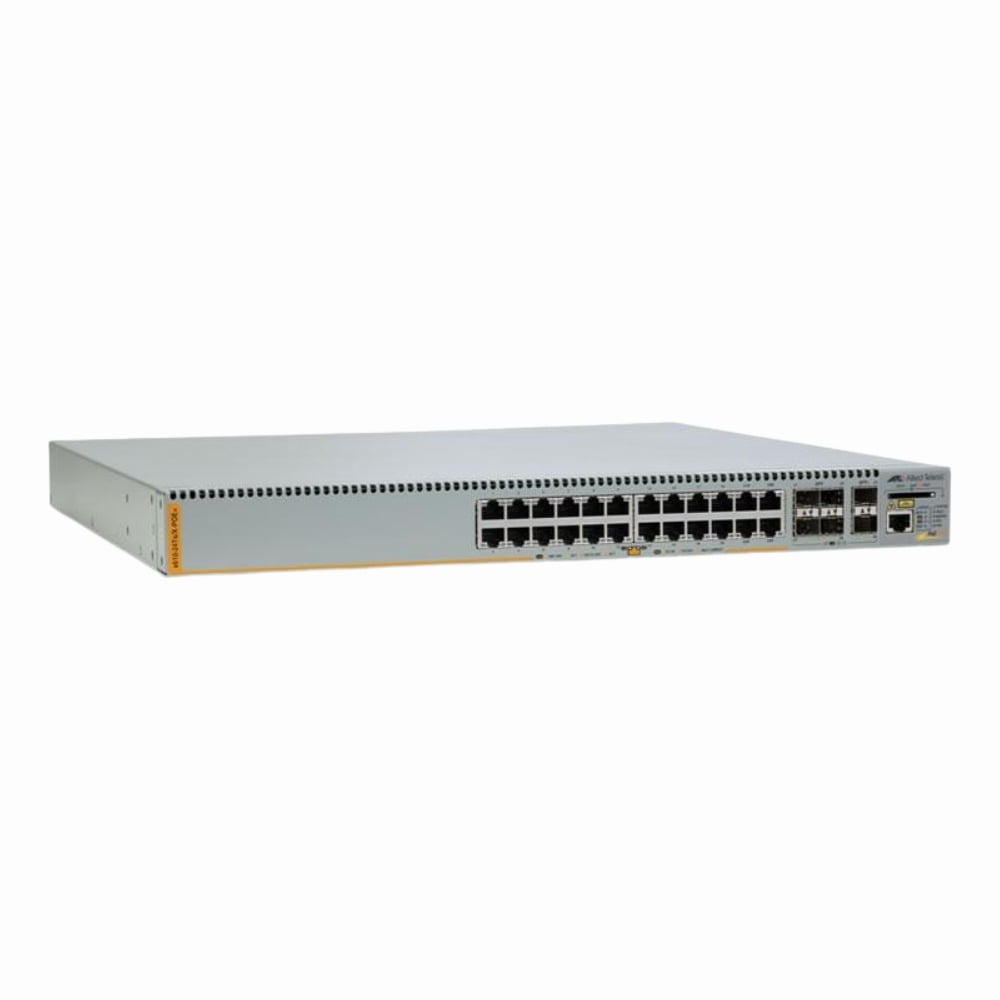

The Allied Telesis X610-24TS/X-POE is a versatile Layer 3 managed switch that combines PoE+ support and stacking features. It fits well in environments needing reliable power delivery to network devices alongside advanced routing and scalable infrastructure options. |
| General Information | |
|---|---|
| Brand | Allied Telesis |
| Part Number | AT-X610-24TS/X-POE |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Type | Managed Switch |
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack |
| Switch Ports | Yes |
| Number of Ports | 28-Ports |
| Port Type | 10/100/1000Base-T, SFP+ |
| Port Speed | 10/100/1000 Mbps |
| UpLink Ports | 4 x SFP+ (1G/10G) |
| POE Support | PoE+ |
| Switching Capacity | 128 Gbps |
| Switch Forwarding Rate | 95.2 Mpps |
| DRAM | 1 GB |
| Flash Memory | 256 MB |
| VLAN Support | Yes |
| Max VLANs Supported | Supports up to 4,094 VLANs |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | RJ‑45, SFP+ |
| Performance | |
|---|---|
| Latency | <5µs |
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 16,000 entries |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, BGP, VRRP, PIM-SM |
| Remote Protocols | SNMP v1/v2c/v3, Telnet, SSH, HTTP/HTTPS, Allied Telesis Management Framework |
| Management Interfaces | CLI, Web GUI, SNMP, Allied Telesis AMF |
| Security Features | IEEE 802.1X, MAC filtering, ACLs, DoS protection, RADIUS, TACACS+ |
| Remote Management Protocol | SNMP v1/v2c/v3,RMON,Web GUI (HTTP/HTTPS),CLI (Console/SSH/Telnet),Syslog |
| Routing Protocol | Static Routing,RIP,OSPF |
| Power & Cooling | |
|---|---|
| Fans | Dual front-accessible variable-speed fans |
| Power | 370W PoE+ budget |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.72 x 17.32 x 16.14 inches |
| Weight | 12.00 |
| Operating Temperature | 0°C to 45°C |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Compliance Standards | RoHS, CE, FCC, UL, TUV |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad, IEEE 802.3x |
| Product Description |
|---|
This Allied Telesis X610 switch combines high-power PoE+ with advanced Layer 3 features, making it suitable for demanding network environments. It's commonly found in medium to large enterprise networks where both data and power delivery to devices like IP cameras and access points are required. Built for network administrators who need robust management and scalability, this switch supports stacking to simplify network expansion and enhance redundancy. Key Features
This switch often appears in access or distribution layers within campus or enterprise networks, powering devices and handling complex routing tasks. Its stackable design helps organizations grow their networks smoothly without replacing existing hardware. |
