| Product Overview |
|---|

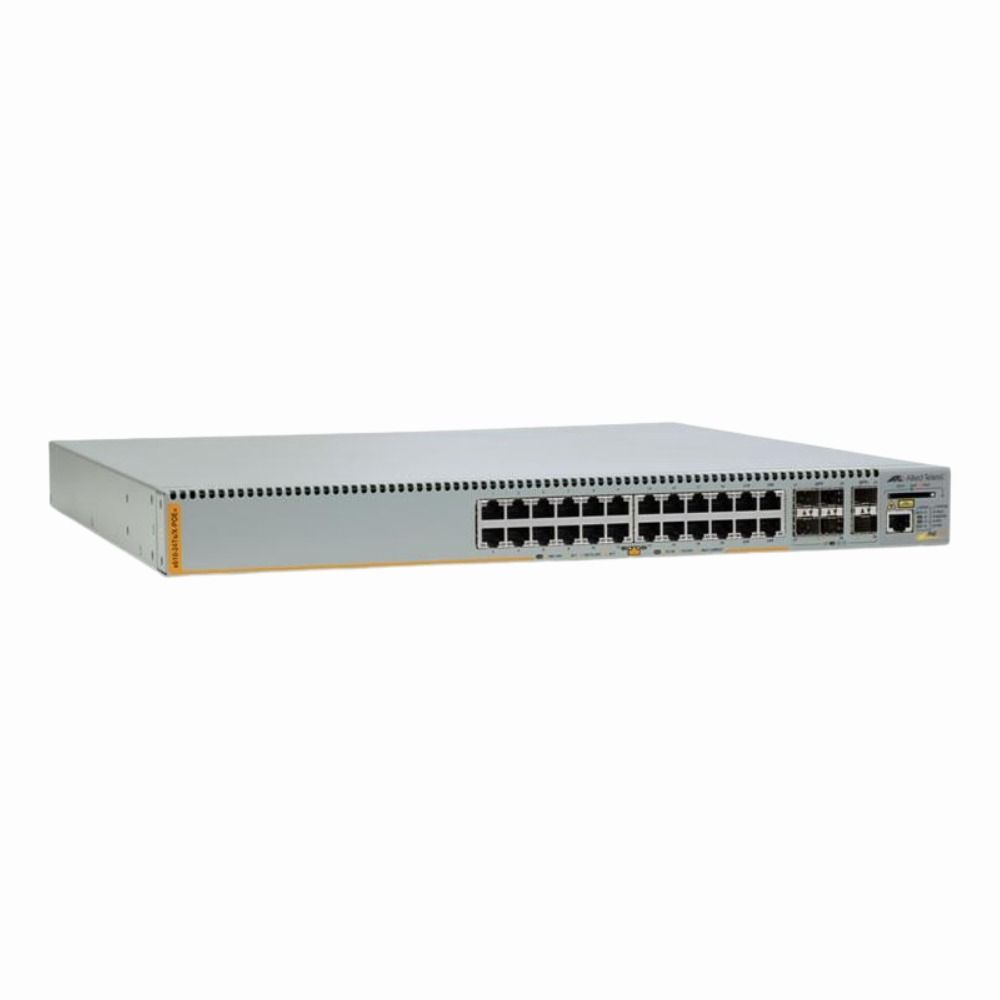

The Allied Telesis x610-24TS-POE is a versatile Layer 3 managed Gigabit switch that combines PoE+ power delivery with flexible fiber options. It fits well in environments where network speed, device powering, and routing capabilities are all required, such as enterprise offices and campus networks. |
| General Information | |
|---|---|
| Brand | Allied Telesis |
| Part Number | AT-X610-24TS-POE |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Type | Managed Switch |
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack |
| Switch Ports | 20 x 10/100/1000Base-T PoE+ ports, 4 x combo SFP (1000Base-X) ports |
| Number of Ports | 24-Ports |
| Port Type | 10/100/1000Base-T |
| Port Speed | 10/100/1000 Mbps |
| UpLink Ports | 4 x Combo SFP |
| POE Support | PoE+ |
| Switching Capacity | 128 Gbps |
| Switch Forwarding Rate | 95.2 Mpps |
| DRAM | 512 MB |
| Flash Memory | 64 MB |
| VLAN Support | Yes |
| Max VLANs Supported | Supports up to 4,094 VLANs |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | RJ-45, SFP Combo |
| Performance | |
|---|---|
| Latency | <5µs |
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 16,000 entries |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, BGP, VRRP |
| Remote Protocols | SNMP v1/v2c/v3, Telnet, SSH, HTTP/HTTPS, Allied Telesis Management Framework |
| Management Interfaces | CLI, Web GUI, SNMP |
| Security Features | IEEE 802.1X, RADIUS, TACACS+, Port Security, ACLs |
| Security | 802.1X, ACLs, RADIUS, TACACS+, SSH, SNMPv3 |
| Remote Management Protocol | SNMPv1/v2/v3, RMON, SSH, Telnet, HTTP/HTTPS, CLI (console) |
| Routing Protocol | Static Routing, RIP |
| Power & Cooling | |
|---|---|
| Fans | 2 (variable-speed, front-to-back airflow) |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.72 x 17.32 x 16.14 inches |
| Weight | 12.00 |
| Operating Temperature | 0°C to 45°C |
| Miscellaneous | |
|---|---|
| Compliance Standards | RoHS, CE, FCC, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at |
| Product Description |
|---|
The Allied Telesis x610-24TS-POE is a network switch designed to handle demanding enterprise environments. It provides high-speed Gigabit Ethernet connections combined with Power over Ethernet Plus (PoE+) capabilities to power devices such as IP cameras, phones, and wireless access points directly through the network cable. Often found in medium to large business networks, this switch supports Layer 3 management, allowing IT teams greater control over their routing and traffic segmentation. It is built for network administrators who need reliable performance and flexibility in deploying network infrastructure. Key Features
This switch is typically deployed in enterprise settings where both data and powered endpoints need to be supported reliably. Its combination of PoE+ capability and Layer 3 features makes it a solid choice for growing networks requiring stable connectivity and efficient traffic management. |
