| Product Overview |
|---|

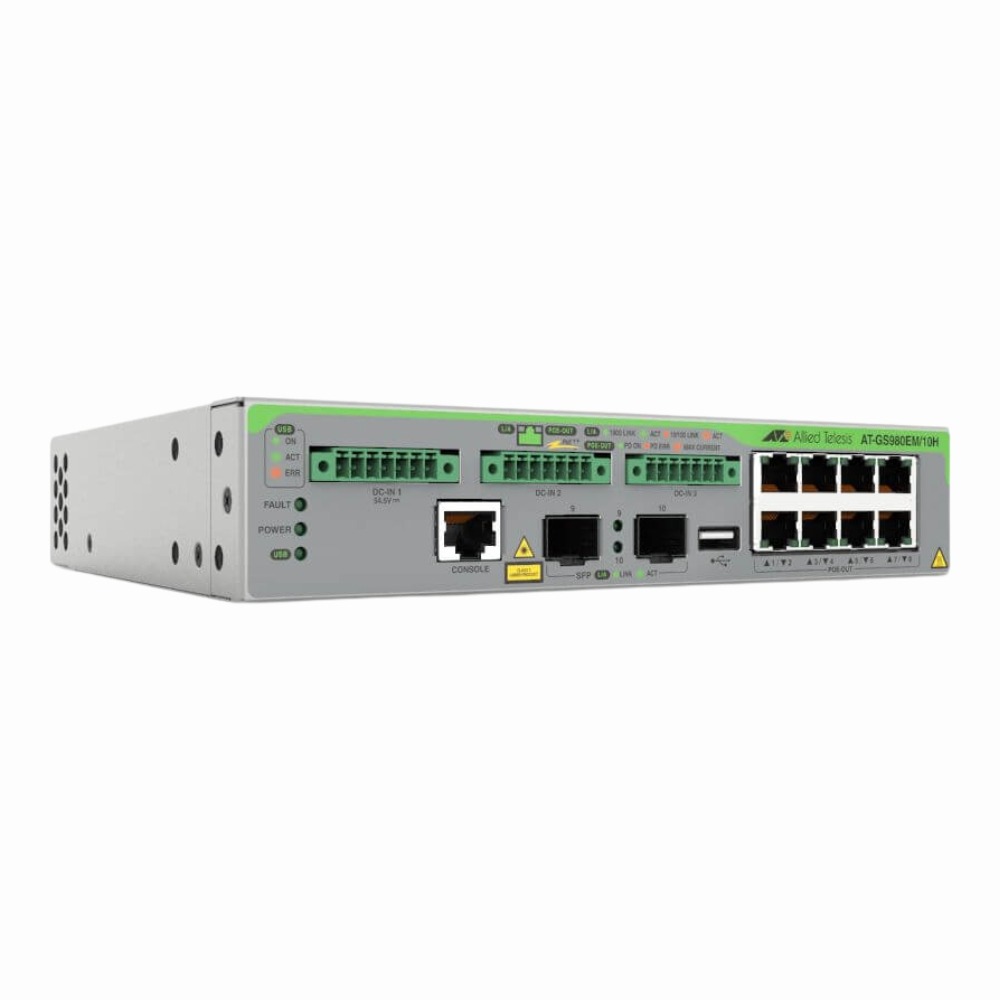

The Allied Telesis CentreCOM GS980EM is a Layer 3 rack-mountable switch that combines high-power PoE++ ports with fiber connectivity options. It fits into enterprise networks needing reliable gigabit Ethernet performance alongside flexible routing and power delivery for devices like IP cameras and WAPs. |
| General Information | |
|---|---|
| Brand | Allied Telesis |
| Part Number | AT-GS980EM/10H |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Type | Managed Switch |
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack, DIN Rail |
| Switch Ports | 8 |
| Number of Ports | 8-Ports |
| Port Type | 1000Base-T, 1000Base-X |
| Port Speed | 10/100/1000 Mbps |
| UpLink Ports | 2 x 100/1000Base-X SFP |
| POE Support | PoE++ |
| Switching Capacity | 24Gbps |
| Switch Forwarding Rate | 14.9Mpps |
| DRAM | 512MB |
| Flash Memory | 128MB |
| VLAN Support | Yes |
| Max VLANs Supported | Supports up to 4094 VLANs |
| Stackable | No |
| Layer Support | Layer 3 |
| Connector Type | RJ‑45, SFP |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 16,000 entries |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF |
| Remote Protocols | AMF Plus, SNMP v1/v2c/v3, SSH, Telnet, HTTP/HTTPS, CLI, REST/YANG |
| Management Interfaces | Web GUI (HTTP/HTTPS), CLI (Console), SSH, Telnet, SNMP |
| Security Features | 802.1x, MAC filtering, ACL, RADIUS, SSHv2, HTTPS, SSL, DHCP snooping, port security, more |
| Security | 802.1X, RADIUS, TACACS+, ACLs, Port Security, Storm Control |
| Remote Management Protocol | SNMPv1/v2c/v3, SSH, Telnet, HTTP/HTTPS, Syslog |
| Routing Protocol | Static Routing, RIP |
| Physical Characteristics | |
|---|---|
| Dimensions | 42.5 mm x 210 mm x 180 mm |
| Weight | 4.00 |
| Operating Temperature | 0°C to 40°C |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Compliance Standards | WEEE, RoHS, CE, FCC, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1D, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3az |
| Product Description |
|---|
The Allied Telesis CentreCOM GS980EM is a robust Layer 3 Gigabit Ethernet switch designed to handle demanding network environments. It offers high-power PoE++ ports capable of powering devices such as high-end wireless access points, IP cameras, and VoIP phones without the need for additional power supplies. Often found in medium to large enterprise networks, this switch is built for IT professionals who require reliable routing capabilities combined with flexible connectivity options. Its rack-mountable form factor makes it ideal for organized network setups in server rooms or communication closets. Key Features
This switch typically anchors critical network segments where power delivery and data throughput are essential. You'll find it deployed in corporate offices, campus networks, or anywhere robust, managed connectivity is a priority. Its combination of PoE++ power and Layer 3 functionality helps simplify infrastructure while supporting a range of connected devices. |
