| Product Overview |
|---|

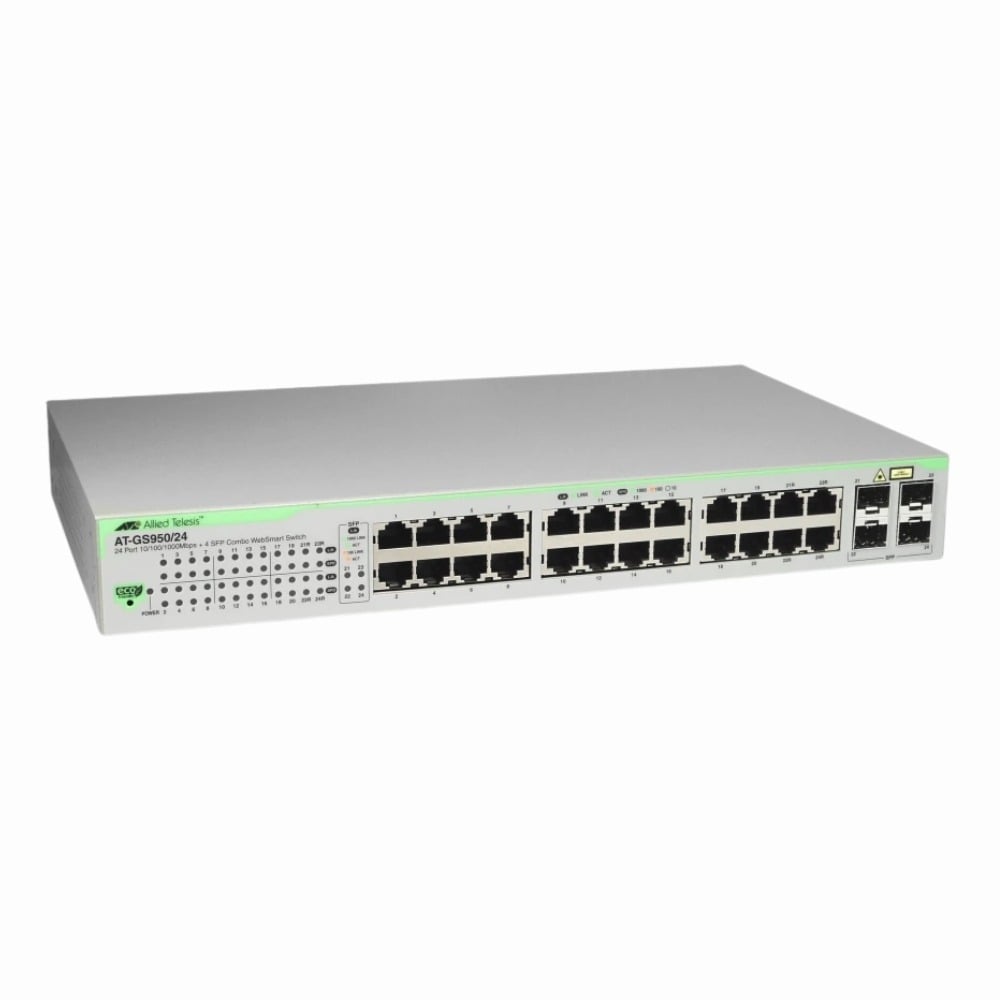

The AT-GS950/24 Allied Telesis switch combines 24 gigabit copper ports with 4 flexible combo SFP slots, providing a practical solution for business networks that need both speed and connection versatility. Its Layer 2 managed capabilities and Websmart interface make it approachable for network teams looking to maintain an efficient Ethernet infrastructure without extensive configuration overhead. |
| General Information | |
|---|---|
| Part Number | AT-GS950/24 |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Type | Managed Switch |
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack, Wall Mount, Desktop |
| Switch Ports | 24 x 10/100/1000Base-T (RJ-45) |
| Number of Ports | 24-Ports |
| Port Type | 10/100/1000Base-T, 1000Base-X |
| Port Speed | 10/100/1000 Mbps |
| UpLink Ports | 4 x 1000Base-X |
| POE Support | No |
| Switching Capacity | 48 Gbps |
| Switch Forwarding Rate | 35.71 Mpps |
| DRAM | 512 KB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | No |
| Layer Support | Layer 2 |
| Connector Type | RJ‑45, SFP |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 8,000 Entries |
| Management and Configuration | |
|---|---|
| Remote Protocols | Web GUI (Websmart), SNMP, CLI, RMON |
| Management Interfaces | HTTP/HTTPS, SNMP, SSH, Telnet |
| Security Features | 802.1x, MAC filtering, RADIUS, ACLs, IP access lists |
| Security | 802.1X, Port security, Access Control Lists (ACLs), MAC filtering, Storm control |
| Remote Management Protocol | HTTP, HTTPS, SNMP v1/v2c, RMON, SSH, Telnet |
| Power & Cooling | |
|---|---|
| Fans | Fanless |
| Power | AC 100-240V, 50/60 Hz |
| Physical Characteristics | |
|---|---|
| Dimensions | 44 x 330 x 200 mm |
| Weight | 6.00 |
| Operating Temperature | 0°C to 50°C |
| Miscellaneous | |
|---|---|
| Compliance Standards | WEEE, RoHS, CE, FCC |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w (RSTP), IEEE 802.1p, IEEE 802.1Q |
| Product Description |
|---|
The AT-GS950/24 is a versatile network switch designed to handle demanding Ethernet environments with ease. It offers 24 Gigabit ports alongside 4 combo SFP slots, which makes it suitable for mixed media deployments where both copper and fiber connections are needed. Often found in small to medium-sized business networks, this switch serves as a reliable workhorse to manage traffic efficiently and ensure smooth data flow. Network administrators appreciate its Websmart management system, which simplifies setup and monitoring tasks without requiring deep command-line expertise. Key Features
This switch is commonly deployed in office networks, data closets, and wiring rooms where reliable wired connectivity is critical. It helps keep devices connected with minimal latency and offers network segmentation options to improve security and performance. The AT-GS950/24 fits well in environments that require a balance of flexibility, performance, and manageable complexity. |
