| Product Overview |
|---|

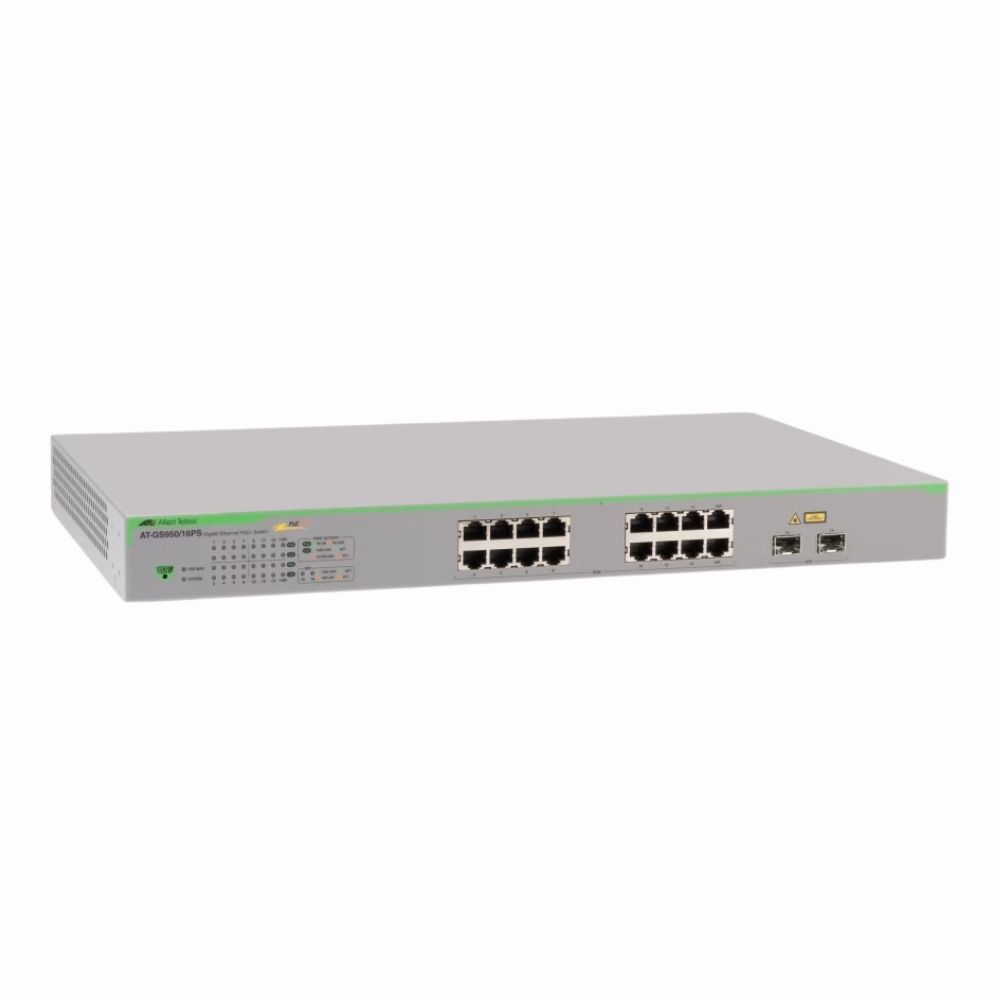

The AT-GS950/16 Allied Telesis switch provides a practical solution for businesses that need a mix of copper and fiber connectivity in a manageable, rack-mountable package. It fits well in setups requiring core gigabit connections with straightforward management capabilities and flexible uplink options. |
| General Information | |
|---|---|
| Part Number | AT-GS950/16 |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Type | Managed Switch |
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack, Desktop |
| Switch Ports | 16 x 10/100/1000Base-T (RJ-45) |
| Number of Ports | 16-Ports |
| Port Type | 10/100/1000Base-T, 1000Base-X, RJ-45 |
| Port Speed | 10/100/1000 Mbps |
| UpLink Ports | 2 x 1000Base-X SFP (combo) |
| POE Support | No |
| Switching Capacity | 32 Gbps |
| Switch Forwarding Rate | 23.80 Mpps |
| DRAM | 8 MB |
| Flash Memory | 2 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | No |
| Layer Support | Layer 2 |
| Connector Type | RJ‑45, SFP |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 8,000 Entries |
| Management and Configuration | |
|---|---|
| Remote Protocols | Web interface, HTTP, SNMP v1/v2c/v3 |
| Management Interfaces | Web, SNMP, (RS-232 DB-9 serial port) |
| Security Features | 802.1x, port mirroring, access control, DHCP snooping, etc. |
| Management Type | Web-based (Allied Telesis WebSmart), SNMP (v1/v2c), CLI (console) |
| Security | 802.1X, MAC-based access control / Port security, ACLs, DHCP Snooping, BPDU Guard, Storm Control |
| Remote Management Protocol | HTTP, HTTPS, SNMP, Telnet, SSH, RMON, TFTP |
| Power & Cooling | |
|---|---|
| Fans | Fanless |
| Power | AC 100-240V, 50/60Hz |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.7” x 13.9” x 8.5” |
| Weight | 6.00 |
| Operating Temperature | 0°C to 50°C |
| Miscellaneous | |
|---|---|
| Compliance Standards | WEEE, RoHS, CE, FCC |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad (LACP) |
| Product Description |
|---|
The AT-GS950/16 is a network switch providing reliable gigabit connectivity with a mix of copper and fiber options. Built for small to medium-sized business networks, it's often found in office wiring closets or server rooms where efficient traffic management is needed. This switch supports essential Layer 2 features to help administrators manage and segment network traffic without complexity. Typical users include IT teams seeking a straightforward web interface to configure VLANs, monitor ports, or set up QoS rules. Key Features
In practice, this switch is typically deployed in environments where reliable gigabit connections and basic network segmentation are needed. It plays a key role in organizing office networks, allowing multiple devices to communicate efficiently while maintaining manageable network traffic. |
