| Product Overview |
|---|

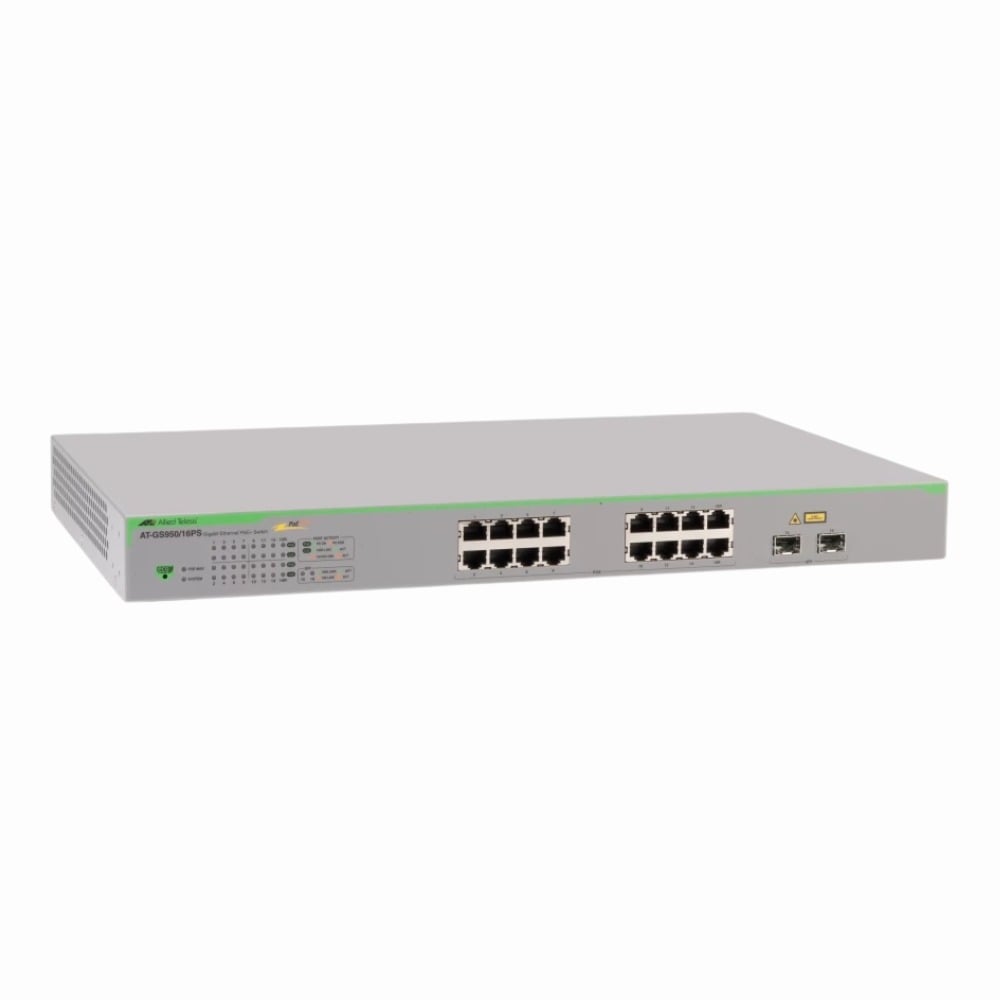

The Allied Telesis AT-GS950/16-10 is a managed gigabit switch offering a balance between ease of use and flexible connectivity options. It fits into network setups where 16 fast Ethernet ports and a couple of fiber or copper uplink options are needed, often found in business or institutional environments supporting wired devices. |
| General Information | |
|---|---|
| Part Number | AT-GS950/16-10 |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Type | Managed Switch |
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack, Desktop |
| Switch Ports | 16 x 10/100/1000Base-T (RJ-45) |
| Number of Ports | 16-Ports |
| Port Type | 10/100/1000Base-T, 1000Base-X, RJ-45, SFP |
| Port Speed | 10/100/1000 Mbps |
| UpLink Ports | 2 x Combo SFP 1 Gbps (combo with RJ-45) |
| POE Support | No |
| Switching Capacity | 32 Gbps |
| Switch Forwarding Rate | 23.8 Mpps |
| DRAM | 64 MB |
| Flash Memory | 16 MB |
| VLAN Support | Yes |
| Max VLANs Supported | Supports up to 256 VLANs |
| Stackable | No |
| Layer Support | Layer 2 |
| Connector Type | RJ-45 |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 8,000 Entries |
| Management and Configuration | |
|---|---|
| Remote Protocols | Yes |
| Management Interfaces | Web, SNMP, CLI (PS variants) |
| Security Features | 802.1X, MAC-based access, IP ACL, RADIUS, Port-based security |
| Management Type | Web GUI (WebSmart), SNMP, CLI (Telnet/SSH) |
| Security | 802.1X, Access Control Lists (ACLs), Port Security, DHCP Snooping, BPDU Guard, MAC filtering |
| Remote Management Protocol | HTTP, HTTPS, SNMPv1/v2/v3, SSH, Telnet, RMON |
| Power & Cooling | |
|---|---|
| Fans | Fanless |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.7 x 13.9 x 8.5 inches |
| Weight | 6.00 |
| Operating Temperature | 0°C to 40°C |
| Miscellaneous | |
|---|---|
| Compliance Standards | WEEE, RoHS, CE, FCC, UL |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.3az |
| Product Description |
|---|
The Allied Telesis AT-GS950/16-10 is a Layer 2 managed switch designed to handle gigabit Ethernet traffic efficiently. It is commonly used in small to medium-sized business networks to provide reliable, high-speed wired connectivity. Built with 16 copper ports and two combo SFP slots, this switch offers flexibility in connecting both standard Ethernet devices and fiber optics for uplinks or longer distance links. Network administrators often find it useful in environments where straightforward management and monitoring are required without the complexity of full enterprise features. Key Features
This switch is typically deployed in office wiring closets or data rooms where reliable gigabit performance is needed for workstations, servers, or access points. Its manageable features allow basic network segmentation and traffic control, helping maintain efficient network performance in day-to-day operations. |
