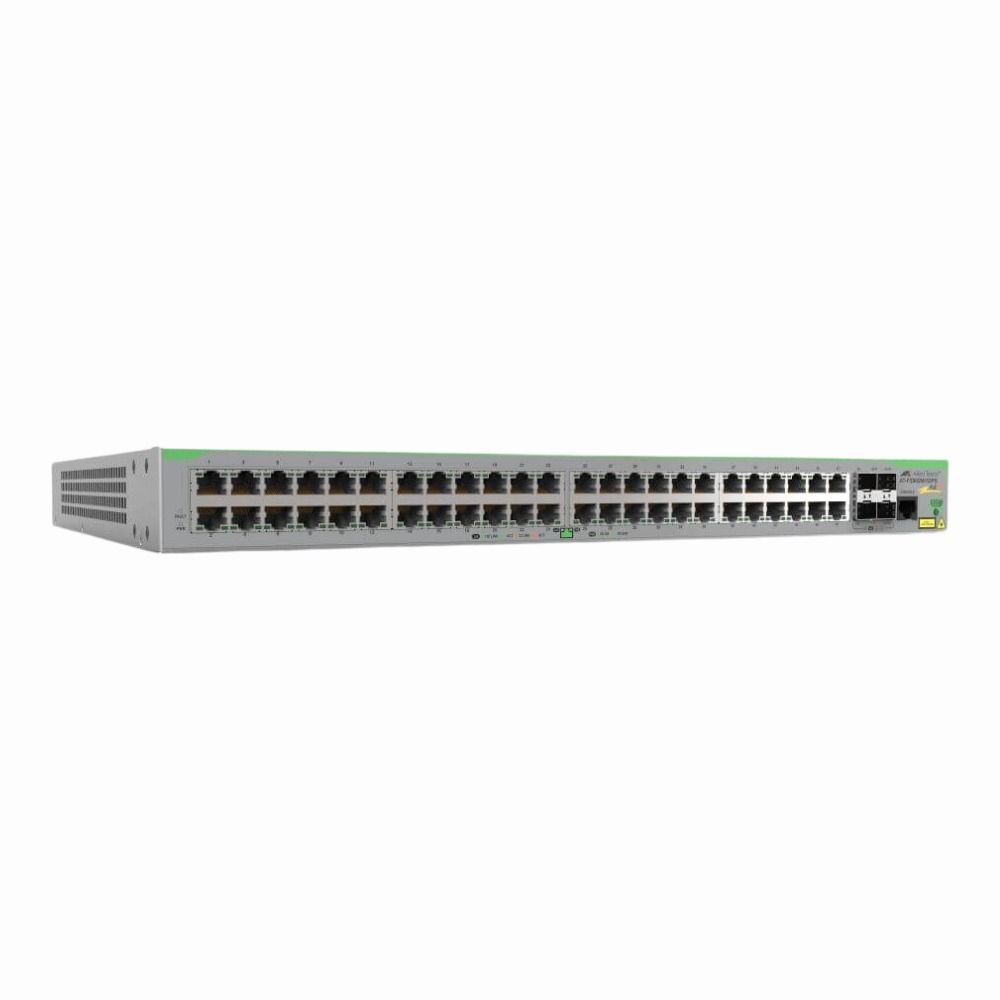

Name: AT-FS980M-52PS-50 Allied Telesis 48x10/100Base-TX PoE+ 4xSFP Layer 3 Switch
Brand: Allied Telesis
SKU: AT-FS980M-52PS-50
Price: 1868.00 USD
Availability: InStock
Rating: 4.8 (118 reviews)

Product Overview
The Allied Telesis CentreCOM FS980M Series switch combines 48 PoE+ Fast Ethernet ports and 4 SFP uplinks, designed for environments requiring reliable power and network management. It fits into enterprise and campus networks where devices need both data connectivity and power, supporting routing tasks while maintaining a compact rack footprint.

General Information
Brand	Allied Telesis
Part Number	AT-FS980M-52PS-50
Condition	Refurbished

Technical Information
Switch Type	Managed Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Switch Ports	48 x 10/100Base-TX PoE+
Number of Ports	48-Ports
Port Type	RJ-45
Port Speed	10/100 Mbps
UpLink Ports	4 x SFP
POE Support	PoE+
Switching Capacity	17.6 Gbps
Switch Forwarding Rate	13.09 Mpps
VLAN Support	Yes
Max VLANs Supported	1-4094
Stackable	No
Layer Support	Layer 3
Connector Type	RJ‑45, SFP

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	16,000 entries

Management and Configuration
Routing Protocols	Static, RIP
Remote Protocols	Yes
Management Interfaces	CLI, Web GUI, SNMP, RMON, Telnet, SSH
Security Features	ACLs L2/L3, SSH, RADIUS, STP/RSTP/MSTP, EPSRing, UDLD, root guard
Security	802.1X, ACLs, Port Security, MAC Authentication, DHCP Snooping
Remote Management Protocol	SNMPv1/v2c/v3, SSH, Telnet, HTTP/HTTPS
Routing Protocol	Static Routing, RIP

Physical Characteristics
Dimensions	1.7 x 17.3 x 13.6 in
Weight	12.00

Miscellaneous
Compliance Standards	RoHS, CE, FCC
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X, IEEE 802.3af, IEEE 802.3at

Product Description
The Allied Telesis CentreCOM FS980M Series switch offers robust Layer 3 management and PoE+ power delivery across 48 Fast Ethernet ports. It's built for networks that require reliable connectivity and power over Ethernet for devices like IP phones, cameras, and wireless access points. Often found in mid-sized enterprise networks, this switch handles the demands of converged voice, video, and data traffic while allowing flexible uplink options through SFP ports. Network administrators benefit from its managed features to optimize traffic flow and security. Key Features Provides Power over Ethernet Plus across 48 ports, supporting devices with higher power needs Four SFP uplinks facilitate easy connection to fiber networks or higher-speed switches Layer 3 routing capabilities help segment networks and improve traffic management Compact, rack-mountable chassis fits well in standard data center racks Supports fast Ethernet speeds suitable for many existing network devices This switch tends to be deployed in office buildings, school campuses, and other environments where PoE devices are common. Its balance of port density, power delivery, and management features offers a practical solution for growing networks.

Use Cases
The Allied Telesis CentreCOM FS980M Series switch is ideal for medium to large enterprise networks requiring simultaneous data and power delivery over Ethernet. It is particularly suited for environments where network devices such as IP phones, wireless access points, and security cameras must be powered and managed efficiently within a centralized rack infrastructure. How It's Used: Powering and connecting IP telephony systems in corporate office buildings where centralized PoE+ simplifies infrastructure. Supporting wireless LAN deployments in campus networks by providing both data and power to multiple access points. Enabling secure video surveillance by powering IP cameras and aggregating traffic for real-time monitoring in managed facilities. Integrating with fiber uplinks in data center edge switches to facilitate high-speed routing and segmentation. Providing Layer 3 routing capabilities in branch office networks to optimize inter-VLAN traffic and simplify management. This switch enhances operational efficiency by consolidating power and network connectivity into a single platform, enabling scalable deployments with robust Layer 3 features. Its rack-mountable design and fiber uplink options support growing enterprise needs while maintaining performance and manageability.
