R2H28A

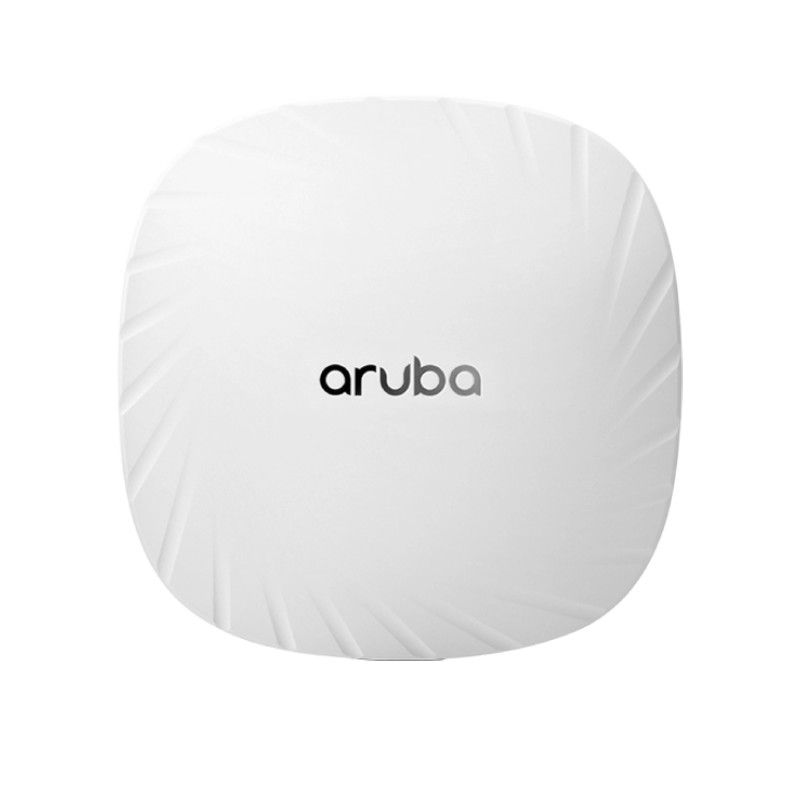

The Aruba AP-505 (RW) is an advanced indoor wireless access point designed for high-performance wireless networks. With dual-radio support (2.4 GHz and 5 GHz) and the latest 802.11ax (Wi-Fi 6) technology, the AP-505 delivers impressive speeds and capacity. The access point achieves a combined maximum data rate of 1.77 Gbps, ensuring efficient data transmission for high-density environments. It supports Single User (SU) MIMO technology with two spatial streams for both 5 GHz (up to 1.2 Gbps) and 2.4 GHz (up to 574 Mbps) frequencies. The AP-505 is equipped with integrated, dual-band omnidirectional antennas, offering high coverage and performance.

Its flexible power options include PoE (802.3af/at) and a separate 12V DC power supply, making it adaptable to different installations. The AP-505 supports a variety of modulation types for seamless connectivity and can handle up to 256 client devices per radio. Ideal for indoor applications, this access point is an excellent choice for businesses looking to improve their wireless network performance and capacity.

Key Features

• Dual-radio design supporting both 2.4 GHz and 5 GHz frequencies with 802.11ax technology
• Maximum combined data rate of 1.77 Gbps, ideal for high-demand environments
• Supports up to 256 client devices per radio for high-density connectivity
• Integrated dual-band downtilt omnidirectional antennas with peak antenna gain of 4.9 dBi (2.4 GHz) and 5.7 dBi (5 GHz)
• Configurable transmit power with a maximum of +21 dBm per band
• Power over Ethernet (PoE) and 12V DC power supply options
• Maximum power consumption of 13.5W, idle power consumption of 7.7W
• Mounting bracket pre-installed, compatible with additional mounting kits
