| Product Overview |
|---|

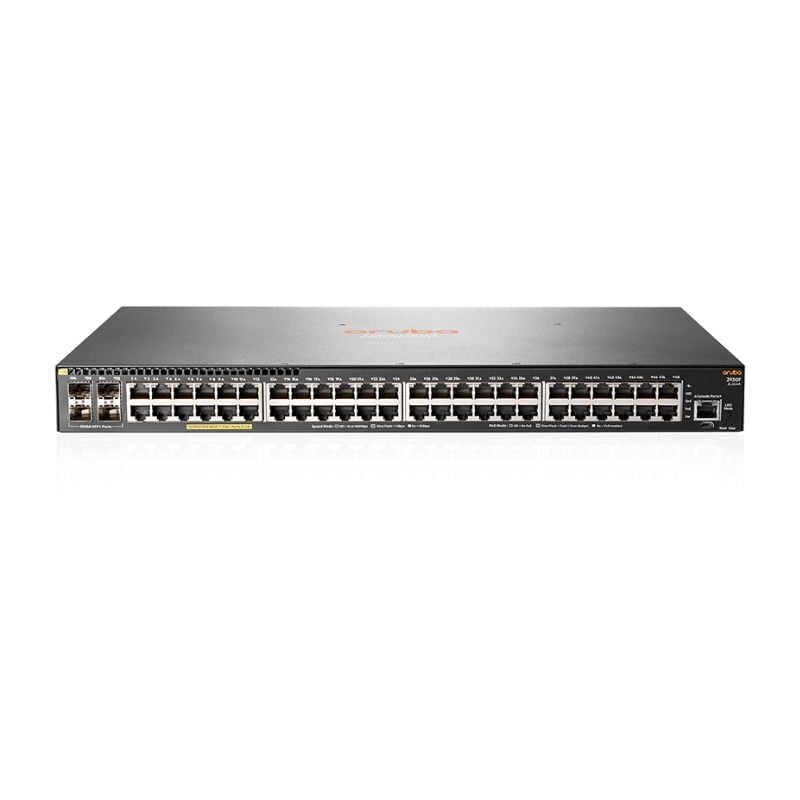

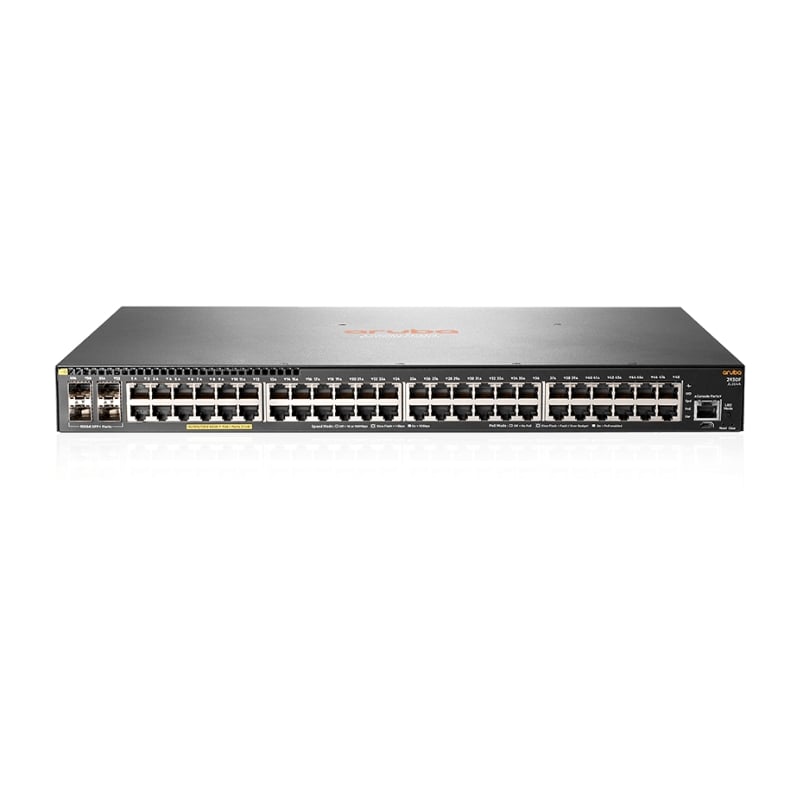

The HP Aruba 2930F 48G 4SFP+ switch is a Layer 3 managed Ethernet device built to deliver reliable and scalable network connectivity. It fits into enterprise setups where both high-density Gigabit access and fast uplinks are necessary, supporting network routing and management needs in one device. |
| General Information | |
|---|---|
| Brand | HP |
| Part Number | JL254A |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 48 |
| Number of Ports | 48-Ports |
| Port Type | 10/100/1000Base-T, SFP+, USB Console, Serial Console (RJ-45) |
| Port Speed | 10/100/1000 Mbps |
| UpLink Ports | 4 |
| POE Support | No |
| Switching Capacity | 176 Gbps |
| Switch Forwarding Rate | 343.75 Mpps |
| DRAM | 512 MB |
| Flash Memory | 128 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 4094 |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP+ |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 32,000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP |
| Remote Protocols | Yes |
| Management Interfaces | Web GUI,Command-Line Interface (CLI) via SSH/Console,SNMP,RMON |
| Security Features | 802.1X,Access Control Lists (ACLs),RADIUS,TACACS+,SSH,SSL,MAC-based authentication,DHCP Snooping (feature dependent) |
| Security | 802.1X authentication, RADIUS, Access Control Lists (ACLs), MAC authentication, DHCP Snooping, IP Source Guard |
| Remote Management Protocol | SNMPv1/v2c/v3,SSH,HTTPS,Telnet |
| Routing Protocol | Static,RIP |
| Physical Characteristics | |
|---|---|
| Dimensions | 44 x 440 x 353 mm (1.73 x 17.32 x 13.90 in) |
| Weight | 5.00 |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Compliance Standards | WEEE, RoHS, cURus, CE, FCC, UL, TUV, cULus, CSA |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE 802.3ad, IEEE 802.3x |
| Product Description |
|---|
The HP Aruba 2930F Series 48G 4SFP+ switch offers robust networking solutions suitable for midsize to large enterprise networks. It handles high-density Gigabit connections on 48 RJ-45 ports, while providing four 10Gbps SFP+ uplink ports for fast and flexible network expansion. Often found in office wiring closets, data centers, and campus networks, this switch supports advanced Layer 3 management features that help simplify network routing and segmentation. IT professionals and network administrators rely on it for building scalable and secure network infrastructures. Key Features
This switch is commonly deployed in business environments requiring dependable connectivity and streamlined network management. Its combination of high port count and Layer 3 capabilities makes it a versatile choice for handling diverse network traffic and maintaining smooth communication between devices. |
