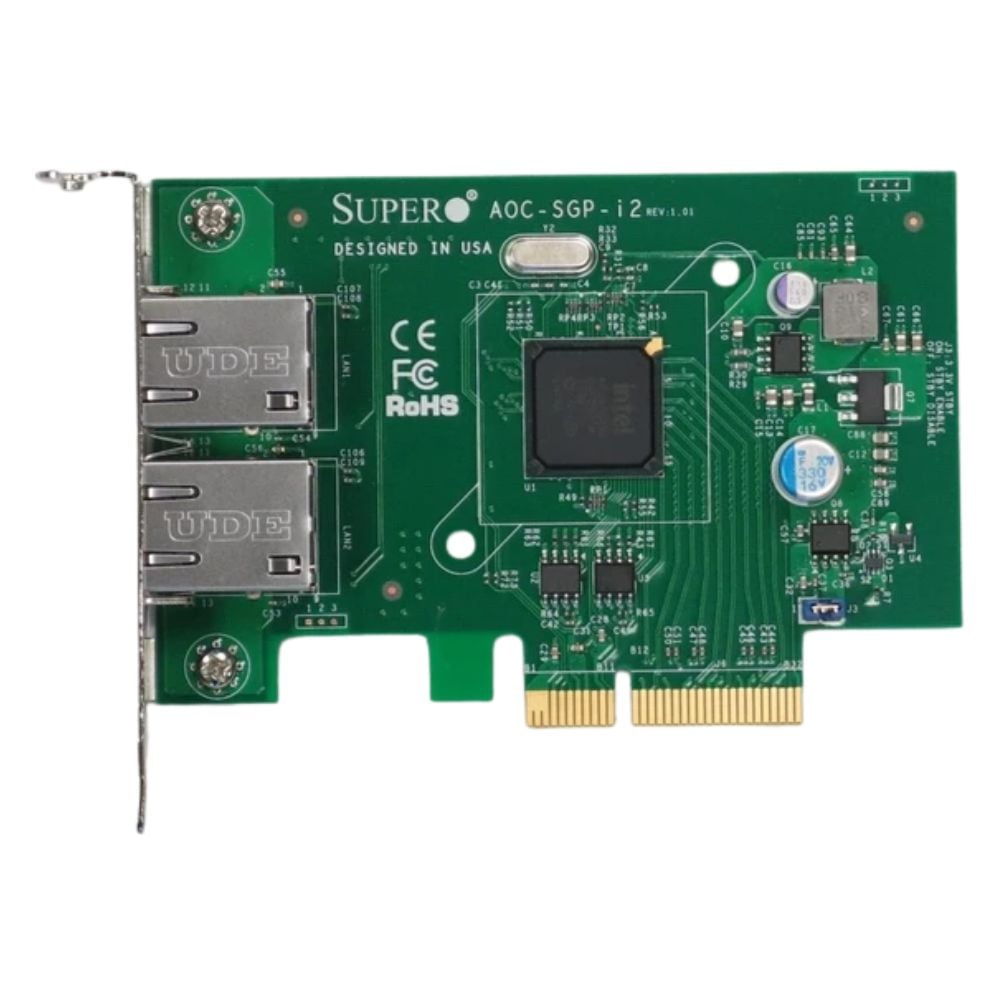

Name: AOC-SGP-I2 Supermicro Dual 1G RJ-45 PCIe Network Card 1GBase-T
Brand: Supermicro
SKU: AOC-SGP-I2
Price: 146.54 USD
Availability: InStock
Rating: 4.8 (124 reviews)

Product Overview
The Supermicro AOC-SGP-I2 is a dual-port 1 Gigabit RJ-45 network card designed to provide additional Ethernet connectivity through a PCI Express interface. It supports the widely adopted 1GBase-T standard and is intended for use in servers or workstations that require improved network port availability.

General Information
Brand	Supermicro

Technical Information
Product Type	Network Interface Card
Virtualization Support	SR-IOV
Data Rate (Speed)	1GbE
Data Center Bridging	No
Interface (Bus)	PCIe 2.0 x4
Number of Ports	2-Port (Dual)
OS Compatibility	RHEL, VMware ESXi
Offload Support	PXE Boot, Wake-on-LAN (WoL), Jumbo Frames
Bracket Height	Both Brackets Included

Connectivity & Physical
Form Factor	Low Profile
Port Type	RJ-45 (Copper)
Weight	3.00
Condition	Refurbished

Miscellaneous
Assembly Required	No
Compliance Standards	WEEE, RoHS, CE, FCC

Product Description
The AOC-SGP-I2 Network Card from Supermicro provides two 1 Gigabit Ethernet ports through RJ-45 connectors, enabling reliable wired network connections. It is designed to fit into a PCI Express slot, commonly found in servers and high-performance workstations. Typically used in data center or enterprise environments, this card allows IT professionals to add or upgrade network connectivity on compatible systems. It supports the 1GBase-T standard, which is widely used for Ethernet networking at 1 Gigabit per second speeds. Key Features Two RJ-45 1Gbps Ethernet ports PCI Express interface for server integration Compliance with 1GBase-T networking standard Designed and manufactured by Supermicro Suitable for expanding network connections on compatible servers This network card serves as a practical solution for expanding or upgrading network ports on servers, supporting standard Ethernet infrastructure. Its compatibility with PCIe slots makes it straightforward to install in appropriate systems requiring additional 1 Gigabit networking capabilities.

Use Cases
The AOC-SGP-I2 is typically used in enterprise server environments and data centers where additional 1 Gigabit Ethernet connections are needed. IT administrators and system integrators often deploy this card to enhance network interface capabilities on Supermicro or compatible systems. How It's Used: Adding dual 1GbE ports to servers lacking sufficient network interfaces Upgrading existing server network capabilities to support 1GBase-T Ethernet Deploying in data centers for standard wired network connectivity Integrating with Supermicro server platforms for ensured compatibility Supporting network segmentation or redundancy setups in enterprise networks Overall, this network card plays a key role in expanding network access points in server hardware, enabling organizations to tailor network configurations to their operational needs without changing the entire system infrastructure.

FAQ's
What type of interface does the AOC-SGP-I2 use? The AOC-SGP-I2 uses a PCI Express (PCIe) interface to connect to the host system, allowing it to fit into compatible server or workstation expansion slots. What Ethernet standard does this network card support? This card supports the 1GBase-T standard, meaning it provides 1 Gigabit per second Ethernet speeds over RJ-45 copper cabling. How many network ports are available on the AOC-SGP-I2? The network card includes two RJ-45 ports, each capable of 1 Gigabit Ethernet connections. Is the AOC-SGP-I2 compatible with non-Supermicro servers? The card is designed primarily for Supermicro systems but may be compatible with other servers featuring suitable PCIe slots and driver support. Confirm compatibility before deployment. What type of cable is required for this network card? The card uses standard RJ-45 connectors and requires Cat5e or better Ethernet cables to achieve 1 Gigabit speeds. Does the AOC-SGP-I2 support link aggregation? Specific support for link aggregation depends on the network drivers and operating system rather than the card hardware alone. Check system capabilities for this feature.
