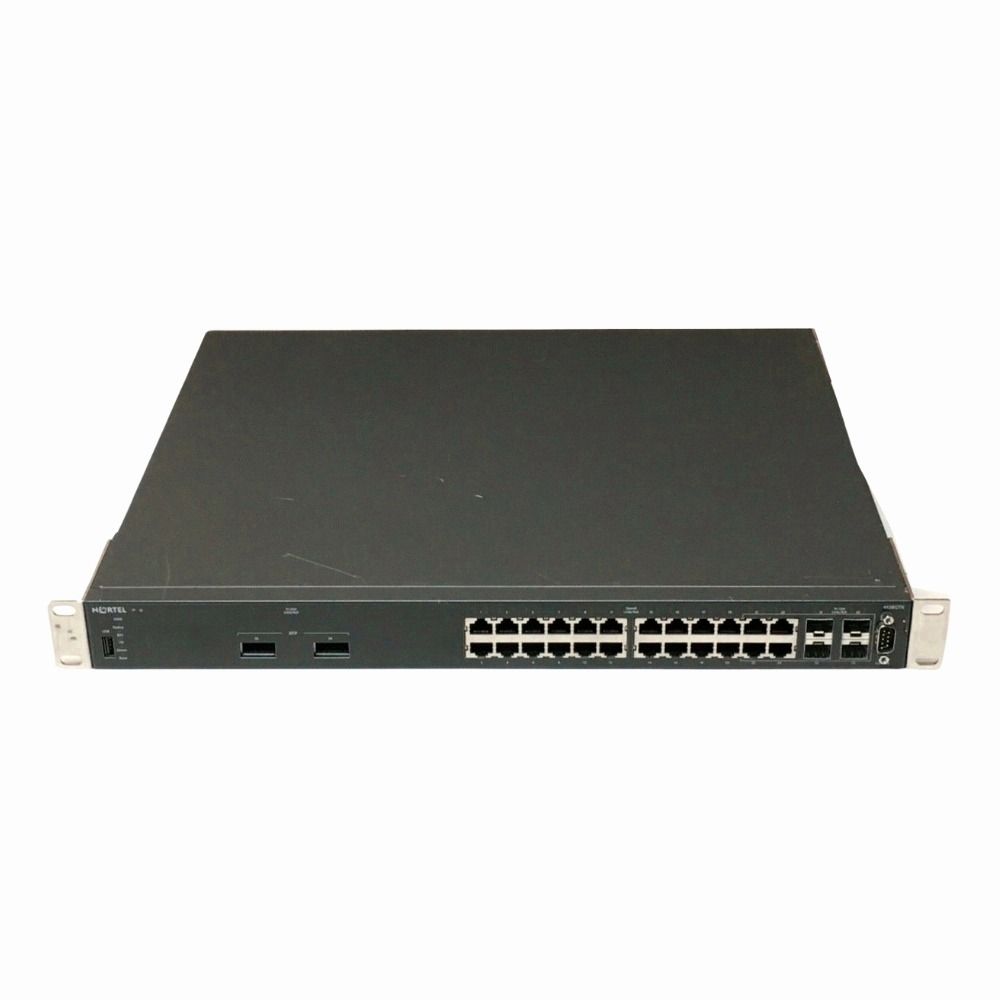

Name: AL4500A06-E6 Nortel ERS 4526GTX 24 x Ports 1000Base-T + 4 x Ports Shared SFP + 2 x Ports XFP Managed Stackable 1U Rack-Mountable Gigabit Ethernet Routing Switch
Brand: Nortel
SKU: AL4500A06-E6
Price: 372.24 USD
Availability: InStock
Rating: 4.8 (114 reviews)

Product Overview
The Nortel ERS 4526GTX switch combines 24 gigabit copper ports with shared fiber options and high-speed XFP connections, making it a flexible choice for enterprise networks. It fits into rack environments and supports stacking, allowing organizations to expand their network capacity in a controlled way.

General Information
Brand	Nortel
Part Number	AL4500A06-E6
Condition	Refurbished

Technical Information
Switch Type	Managed Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Switch Ports	24 x 1000Base-T (RJ-45)
Number of Ports	24-Ports
Port Type	10/100Base-T, 1000Base-X
Port Speed	1 Gbps on all copper: RJ-45 ports; 10 Gbps on XFP
UpLink Ports	4 shared SFP (1G) + 2 XFP (10G) uplink slots
POE Support	No
Switching Capacity	48.8 Gbps
Switch Forwarding Rate	36 Mpps
VLAN Support	Yes
Max VLANs Supported	Supports up to 1,024 VLANs
Stackable	Yes
Layer Support	Layer 2, Layer 3
Connector Type	RJ-45, SFP cage, XFP cage

Performance
Jumbo Frame Support	Up To 9216 Bytes

Management and Configuration
Routing Protocols	Static, RIP, OSPF, VRRP
Remote Protocols	CLI, SNMP, EDM/web GUI)
Security Features	802.1X, ACLs, SSH, RADIUS, TACACS+, DoS prevention
Security	802.1x,ACLs,SSH,SSL,RADIUS/TACACS+
Remote Management Protocol	SNMPv1/v2c/v3,SSH,Telnet,HTTP,HTTPS
Routing Protocol	Static routing,RIP

Power & Cooling
Fans	Yes
Power	100-240 VAC, 50-60 Hz

Physical Characteristics
Dimensions	1.75 x 17.5 x 10.5 inches
Weight	14.00
Operating Temperature	0°C to 40°C

Miscellaneous
Compliance Standards	WEEE, RoHS, CE, FCC, UL
Compliant Standards	IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1x

Product Description
This Nortel ERS 4526GTX switch provides robust gigabit Ethernet routing with a focus on flexibility and scalability. It’s built for environments that require a mix of copper and fiber connections, allowing network managers to optimize link types based on distance and speed needs. Often found in enterprise data centers or mid-sized network closets, it supports network teams looking to manage traffic efficiently while maintaining room for future expansion. The managed capabilities let IT staff monitor and configure traffic to maintain smooth operations. Key Features 24 copper ports deliver reliable, high-speed connections for end devices Shared SFP slots enable quick adaptation to different fiber modules XFP ports allow for longer distance links or higher bandwidth connections Stackable design supports growing network demands without adding complexity Rack-mountable form factor fits standard server racks neatly The ERS 4526GTX is typically installed in office networks or campus setups where a blend of fiber and copper connections is common. It plays a crucial role in managing local network traffic and linking multiple switches together smoothly. Its scalability and versatile port options help accommodate changing network requirements over time.

Use Cases
The Nortel ERS 4526GTX is ideally suited for mid-sized enterprise networks requiring robust gigabit connectivity with flexible fiber integration. It benefits network administrators managing scalable rack-mounted environments and those needing to aggregate diverse link types while ensuring high throughput and reliable routing capabilities. How It's Used: Enterprise campus networks deploying high-density gigabit ports to connect workstations and IP devices within office floors. Data center access layer switching where a mix of copper and fiber uplinks is necessary to support virtualization and storage traffic. Branch office networks requiring stackable switches for simplified management and seamless capacity expansion. Service provider edge environments leveraging XFP ports for long-distance fiber connectivity to customer premises equipment. Industrial or manufacturing facilities integrating networked control systems with diverse media requirements in a rack-mounted infrastructure. This switch enhances operational efficiency by allowing flexible port configurations and stacking in high-density deployments, supporting network growth without major redesigns. Its managed capabilities enable precise control over traffic flows, essential for maintaining performance in demanding enterprise and service provider contexts.
