| Product Overview |
|---|

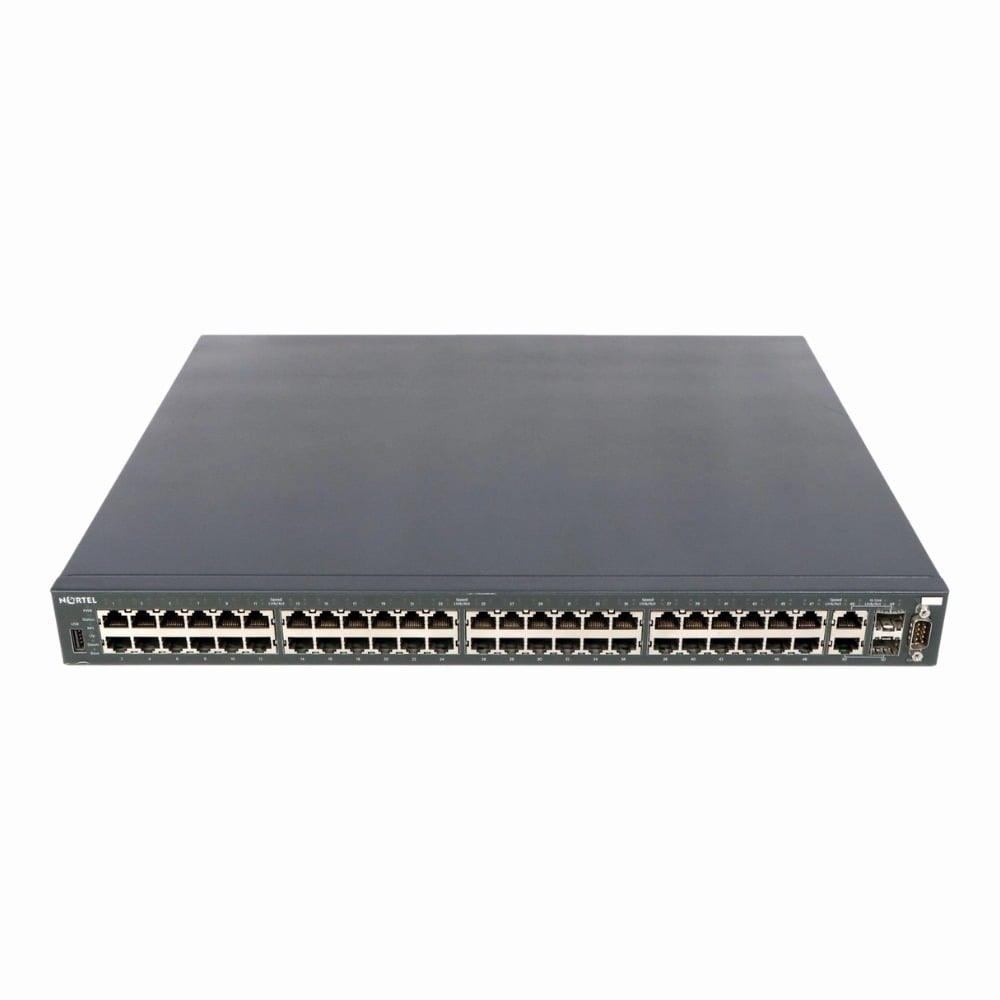

The Avaya ERS 4550T 48-Port Ethernet Switch is designed to provide reliable, high-capacity network switching for enterprise environments. It fits into network cores or aggregation layers, delivering fast connections and power to multiple devices while supporting complex routing and security needs. |
| General Information | |
|---|---|
| Brand | Avaya |
| Part Number | AL4500A02-E6 |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Type | Managed Switch |
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack |
| Switch Ports | 48 x 10/100 (RJ-45) |
| Number of Ports | 48-Ports |
| Port Type | 10/100Base-T |
| Port Speed | 10/100 Mbps |
| POE Support | No |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | Yes |
| Layer Support | Layer 2, Layer 2+ |
| Connector Type | RJ-45, SFP, USB, RS-232 console |
| Performance | |
|---|---|
| MAC Address Table Size | 8000 entries |
| Management and Configuration | |
|---|---|
| Remote Protocols | Yes |
| Management Interfaces | SNMP v1/v2/v3, RMON, Telnet, SSH, HTTP, HTTPS |
| Security Features | IEEE 802.1x, SSH, RADIUS, MAC filtering, ACLs |
| Security | 802.1X, RADIUS, ACLs |
| Remote Management Protocol | SNMP, HTTP, HTTPS, SSH, Telnet |
| Power & Cooling | |
|---|---|
| Power | 100-240 VAC, 50/60 Hz |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.7" x 17.2" x 14.5" |
| Weight | 20.00 |
| Operating Temperature | 0°C to 40°C |
| Miscellaneous | |
|---|---|
| Compliance Standards | WEEE, RoHS, CE, FCC |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.3x |
| Product Description |
|---|
The Avaya ERS 4550T is a 48-port Ethernet switch built to handle demanding network traffic with reliable performance. It’s commonly found in enterprise networks where multiple devices require high-speed connections and efficient data routing. Often deployed in data centers or large office environments, this switch is ideal for network administrators who need flexibility and advanced features in their infrastructure. It supports Power over Ethernet Plus (PoE+) to power devices like IP phones and access points directly through the network cable. Key Features
This switch is typically deployed in corporate networks, campus backbones, and data centers where consistent performance and power delivery are needed. Its real-world benefits include streamlined network management and reduced cabling complexity thanks to integrated PoE+ and stacking options. |
