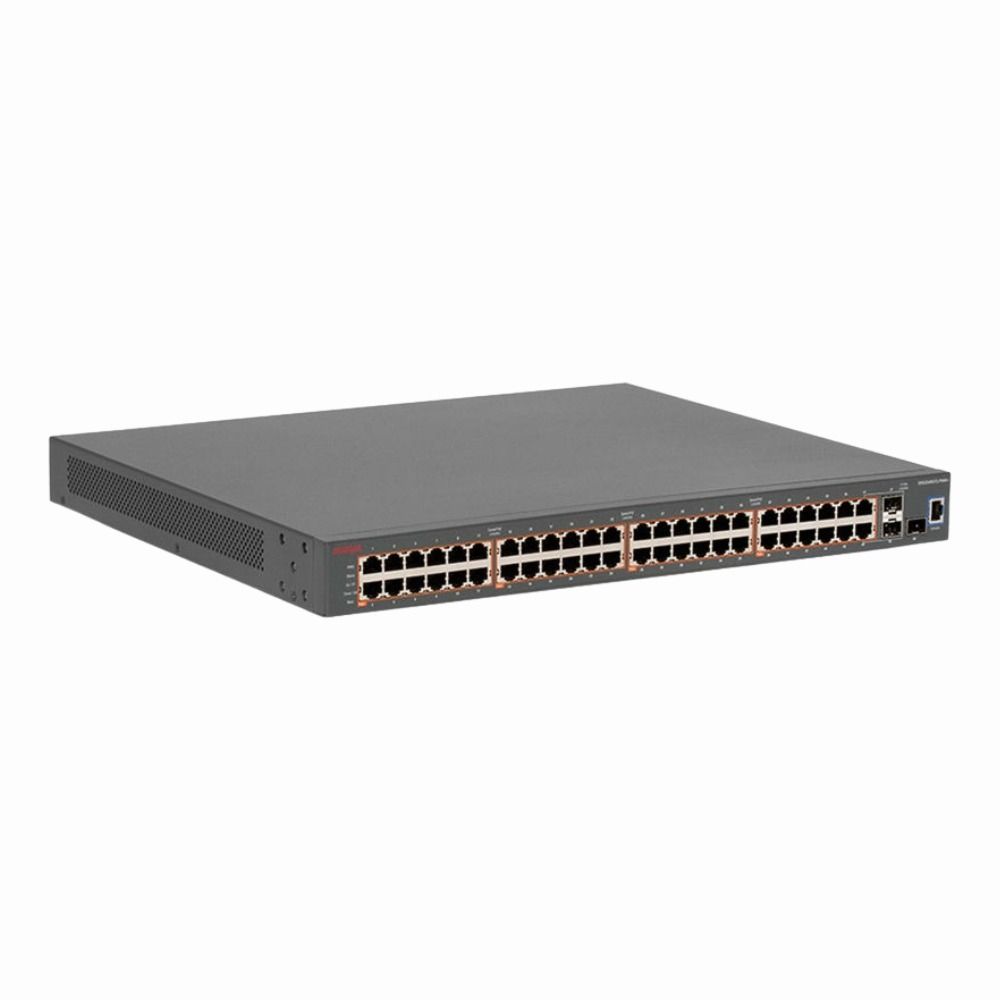

Name: AL3500E16-E6 Avaya ERS 3549GTS-PWR+ 48-Port Ethernet Switch
Brand: Avaya
SKU: AL3500E16-E6
Price: 1115.88 USD
Availability: InStock
Rating: 4.9 (108 reviews)

Product Overview
The Avaya ERS 3549GTS-PWR+ 48-Port Ethernet Switch offers a solid mix of performance and flexibility, fitting well into business networks that require reliable connectivity and power for numerous devices. It handles data traffic efficiently while supporting advanced networking features, making it a practical choice for enterprise environments that need both capacity and control.

General Information
Brand	Avaya
Part Number	AL3500E16-E6
Condition	Refurbished

Technical Information
Switch Type	Managed Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Switch Ports	48 x 10/100/1000Base-T RJ-45 ports (Gigabit)
Number of Ports	48-Ports
Port Type	10/100/1000Base-T
Port Speed	1 Gbps (RJ-45/SFP), 10 Gbps (SFP+), 2.5 Gbps (rear SFP)
UpLink Ports	1 x SFP+ (10 Gbps), plus rear 2 x 2.5 Gbps SFP stacking
POE Support	PoE+
Switching Capacity	120 Gbps
Switch Forwarding Rate	89.3 Mpps
DRAM	128 MB
Flash Memory	32 MB
VLAN Support	Yes
Max VLANs Supported	up to 1,024 VLANs
Layer Support	Layer 3
Connector Type	RJ-45, SFP, SFP+

Performance
Latency	Wire-speed switching; typical latency ≤ 10 µs (depending on packet size)
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	16,000 entries

Management and Configuration
Routing Protocols	Static, RIP, VRRP, IGMP
Remote Protocols	SNMP v1/2/3, RMON, Telnet, HTTP/S, SSH
Management Interfaces	Console (RJ-45), Web GUI (HTTP/HTTPS), CLI, SSH, Telnet, SNMP v1/v2c/v3, RMON, Syslog
Security Features	RADIUS, TACACS+, 802.1x, SSL, SSH, ACLs
Security	802.1X (port-based authentication), RADIUS, TACACS+, Port Security, Access Control Lists (ACLs), DHCP Snooping, Storm Control
Remote Management Protocol	SNMPv1,v2c,v3,HTTP,HTTPS,SSH,Telnet,RMON
Routing Protocol	Static,RIP,VRRP

Power & Cooling
Power	AC 100-240V, 50/60Hz; PoE+ budget ~370W (supports IEEE 802.3at)

Physical Characteristics
Dimensions	1.75" x 17.5" x 15.9"
Weight	4.00
Operating Temperature	0°C to 45°C

Miscellaneous
Eco Friendly	Yes
Compliance Standards	WEEE, RoHS, CE, FCC, UL, TUV, cULus
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at

Product Description
The Avaya ERS 3549GTS-PWR+ 48-Port Ethernet Switch delivers reliable and efficient network performance, ideal for medium to large business environments. It's commonly used in office networks, data centers, and campus infrastructures where high port density and power delivery to devices like IP phones and wireless access points are essential. Built for network administrators seeking scalable and manageable solutions, this switch supports a mixture of data, voice, and video traffic. Its PoE+ capability makes it convenient to power connected devices without needing separate power supplies. Key Features 48 Gigabit Ethernet ports with PoE+ support for powering devices directly Layer 2 and Layer 3 capabilities for flexible network configuration Advanced security features to protect network traffic Energy-efficient design to reduce operational costs Easy integration with existing network infrastructure This model is often found deployed in enterprise floors and wiring closets, providing dependable network access where multiple devices connect simultaneously. It helps streamline network management while delivering the power and bandwidth needed for modern office technologies.
