| Product Overview |
|---|

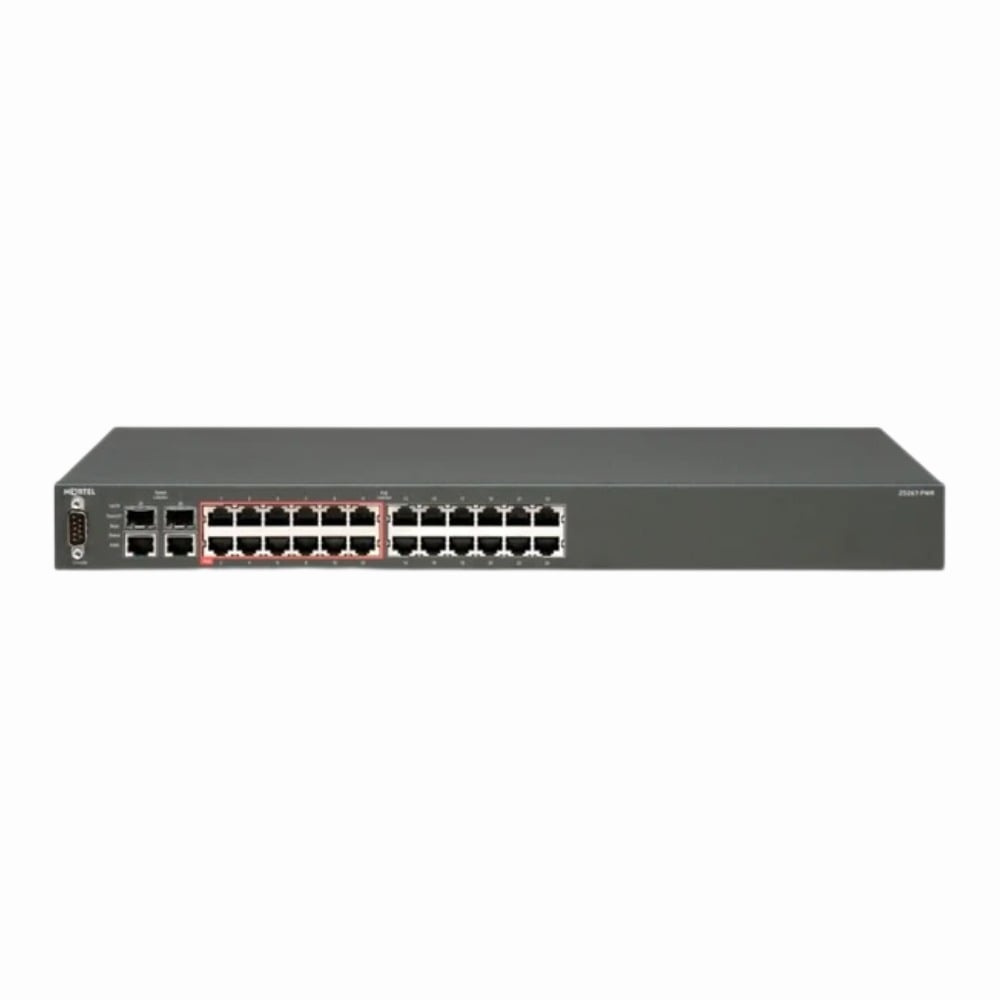

The Avaya 2526T-PWR is a versatile Ethernet switch with 26 gigabit ports, many of which support Power over Ethernet. It fits well in environments where stable wired connections and device powering are needed simultaneously, such as small business networks or branch offices. The switch balances performance and practical features, making it a straightforward addition to typical enterprise setups. |
| General Information | |
|---|---|
| Brand | Avaya |
| Part Number | AL2515A11-E6 |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Type | Managed Switch |
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack |
| Switch Ports | 24 x 10/100 Mbps RJ45 ports, 2 x Gigabit uplink ports (RJ45/SFP combo) |
| Number of Ports | 26-Ports |
| Port Type | 10/100Base-T, 1000Base-T, SFP |
| Port Speed | 10/100 Mbps |
| UpLink Ports | 2 combo 10/100/1000 SFP + 2 rear 1000Base-T |
| POE Support | PoE |
| Switching Capacity | 15.6 Gbps |
| Switch Forwarding Rate | 11.9 Mpps |
| DRAM | 128 MB |
| Flash Memory | 16 MB |
| VLAN Support | Yes |
| Max VLANs Supported | Supports up to 256 VLANs |
| Stackable | No |
| Layer Support | Layer 2 |
| Connector Type | RJ45, SFP (combo) |
| Performance | |
|---|---|
| Latency | <5 μs |
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 16,000 entries |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static |
| Remote Protocols | SNMP 1/2/3, RMON, Telnet, HTTP, SSH |
| Management Interfaces | Web GUI (HTTP/HTTPS), CLI (console/SSH/Telnet), SNMP v1/v2/v3, RMON |
| Security Features | 802.1X authentication, Port security (MAC), Access Control Lists (ACLs), RADIUS/TACACS+ support, BPDU protection |
| Remote Management Protocol | SNMP, SSH, Telnet, HTTP, HTTPS |
| Routing Protocol | Layer 2 switching with limited Layer 3 (static routing), IGMP snooping |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.73″ × 17.36″ × 12.17" |
| Weight | 10.00 |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Compliance Standards | WEEE, RoHS, CE, FCC, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1X, IEEE 802.3af (PoE) |
| Product Description |
|---|
The Avaya 2526T-PWR is a 26-port Ethernet switch designed to provide stable and efficient network connectivity. Often found in office environments, it supports both data transfer and power supply over the same cable, simplifying infrastructure and reducing clutter. Built for small to medium businesses, this switch is ideal for network administrators needing dependable connections for devices like IP phones, wireless access points, and computers. Its integrated PoE capabilities make it especially useful where separate power sources are limited or inconvenient. Key Features
The Avaya 2526T-PWR switch is commonly deployed in office spaces, retail settings, and conference rooms where multiple networked devices require both power and connectivity. It plays a crucial role in keeping communications and data services running smoothly while minimizing cable complexity. |
