| Product Overview |
|---|

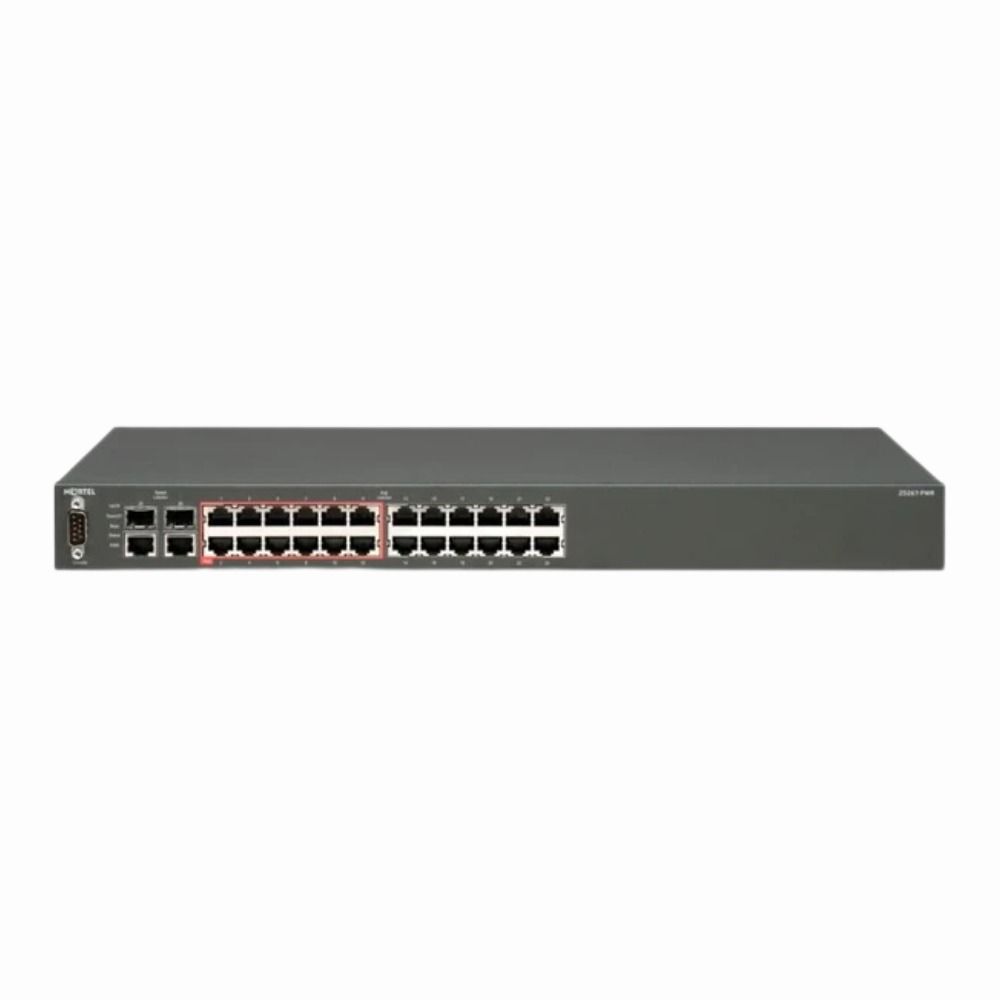

The Avaya 2526T-PWR switch provides a managed 24-port Gigabit Ethernet solution that includes Power over Ethernet Plus capabilities. It fits well in business networks needing to connect and power multiple devices while supporting key features like VLANs and QoS to maintain organized and efficient traffic flow. |
| General Information | |
|---|---|
| Brand | Avaya |
| Part Number | AL2500A11-E6 |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Type | Managed Switch |
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack, Desktop |
| Switch Ports | 24 x 10/100Base-TX PoE (RJ-45) |
| Number of Ports | 24-Ports |
| Port Type | 10/100Base-T, SFP |
| Port Speed | 10/100 Mbps; Gigabit |
| UpLink Ports | 2 x Gigabit SFP (mini-GBIC) uplinks |
| POE Support | PoE |
| Switching Capacity | 12.8 Gbps |
| Switch Forwarding Rate | 11.606 Mpps |
| DRAM | 128 MB |
| Flash Memory | 16 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | No |
| Layer Support | Layer 3 |
| Connector Type | RJ-45, SFP |
| Performance | |
|---|---|
| Latency | 9μs |
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 16,000 MAC addresses |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static |
| Remote Protocols | Telnet, SSH, SNMP v1/v2/v3, RMON, Web GUI |
| Management Interfaces | Console (RJ-45), Web GUI (HTTP/HTTPS), CLI, SNMP v1/v2/v3, Telnet, SSH |
| Security Features | MAC filtering, 802.1x, RADIUS, ACLs, SNMPv3, SSH2 |
| Security | 802.1X, RADIUS, TACACS+, ACLs, Port Security, BPDU Guard, DHCP Snooping, SSL, SSH |
| Remote Management Protocol | SNMP,SSH,Telnet,HTTP,HTTPS |
| Routing Protocol | Static |
| Power & Cooling | |
|---|---|
| Fans | Fanless |
| Power | Switch consumption ~60W; PoE budget up to 370W (max total PoE power) |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.73 x 17.36 x 12.17 in |
| Weight | 10.00 |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Miscellaneous | |
|---|---|
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.3x |
| Product Description |
|---|
The Avaya 2526T-PWR Ethernet switch is built for delivering reliable and fast network connections in business environments. It is commonly used in office networks to connect computers, IP phones, and other network devices while supplying power through PoE+ to compatible equipment. Often found in setups where efficient power management and network segmentation are needed, this switch benefits network administrators aiming to simplify infrastructure while maintaining performance and security. Key Features
This switch is typically deployed in small to medium business networks, where it handles both data and power needs for connected devices. Its balance of managed features and straightforward setup makes it a solid choice for environments requiring dependable, scalable network infrastructure. |
