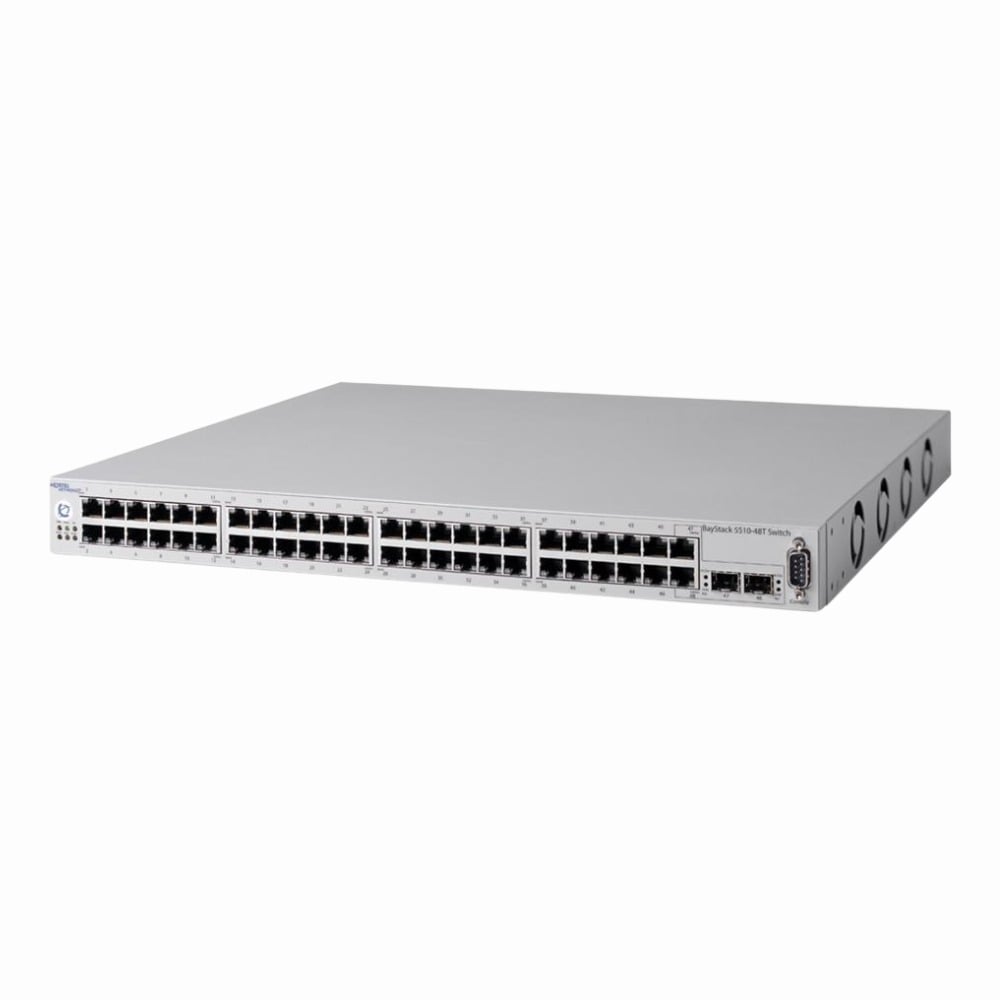

AL1001E01 Avaya BayStack 5510-48T 48 x Ports 1000Base-T + 2 x Expansion Slots Rack-mountable Layer 3 Managed Gigabit Ethernet Network Switch
SKU:
AL1001E01
Weight: 4.00 lbs
Condition: Refurbished
- 48 Gigabit Ethernet 1000Base-T ports for high-speed connectivity
- 2 expansion slots for flexible network upgrades
- Layer 3 managed switch offering routing capabilities
- Rack-mountable design suitable for data center and enterprise environments
In stock
$219.00
| Product Overview |
|---|
The Avaya BayStack 5510-48T delivers managed Layer 3 switching with 48 gigabit Ethernet ports and two expansion slots for additional modules. It fits into rack-mounted network setups commonly seen in enterprise environments, providing both high-speed connectivity and routing capabilities to manage complex network demands. |
| General Information | |
|---|---|
| Brand | Avaya |
| Part Number | AL1001E01 |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Type | Managed Switch |
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack |
| Switch Ports | 48 x 1000Base-T (RJ-45) |
| Number of Ports | 48-Ports |
| Port Type | 1000Base-T |
| Port Speed | 1Gbps |
| UpLink Ports | 2 x mini-GBIC (SFP) expansion slots |
| POE Support | No |
| Switching Capacity | 176Gbps |
| Switch Forwarding Rate | 130Mpps |
| DRAM | 128MB |
| Flash Memory | 32MB |
| VLAN Support | Yes |
| Max VLANs Supported | Supports up to 4,096 VLAN IDs |
| NIM Slot | 2 |
| Layer Support | Layer 2, Layer 3 |
| Connector Type | RJ-45,SFP |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9000 Bytes |
| MAC Address Table Size | 8000 entries |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF |
| Remote Protocols | Yes |
| Management Interfaces | CLI, Web GUI, SNMP |
| Security Features | 802.1X, MAC Filtering, Access Control Lists (ACLs) |
| Management Type | Web GUI (HTTP/HTTPS), Command-line (CLI via Telnet/SSH), SNMP |
| Security | 802.1X,Access Control Lists (ACL),RADIUS,TACACS+,SSH |
| Remote Management Protocol | HTTP,HTTPS,Telnet,SSH,SNMP v1/v2/v3,RMON |
| Routing Protocol | Static routing,RIP |
| Power & Cooling | |
|---|---|
| Power | 100-240VAC, 50-60Hz |
| Physical Characteristics | |
|---|---|
| Dimensions | 44.45 x 440 x 260 mm (H x W x D) |
| Weight | 4.00 |
| Operating Temperature | 0°C to 45°C |
| Miscellaneous | |
|---|---|
| Compliance Standards | WEEE, RoHS, CE, FCC, UL |
| Compliant Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.1Q,IEEE 802.1p,IEEE 802.3x,IEEE 802.1D |
| Product Description |
|---|
The Avaya BayStack 5510-48T is a robust Layer 3 managed switch that provides reliable gigabit connectivity through its 48 ports. It's commonly found in medium to large enterprise networks where performance and scalability are important. Built for IT professionals and network administrators, this switch supports advanced network functions while maintaining ease of management. Its two expansion slots allow integration with additional modules to meet evolving network demands. Key Features
This switch is typically deployed in enterprise campuses, data centers, and large office networks where reliable gigabit performance is essential. It plays a key role in handling traffic efficiently and supporting network growth without frequent hardware replacement. |
