| Product Overview |
|---|

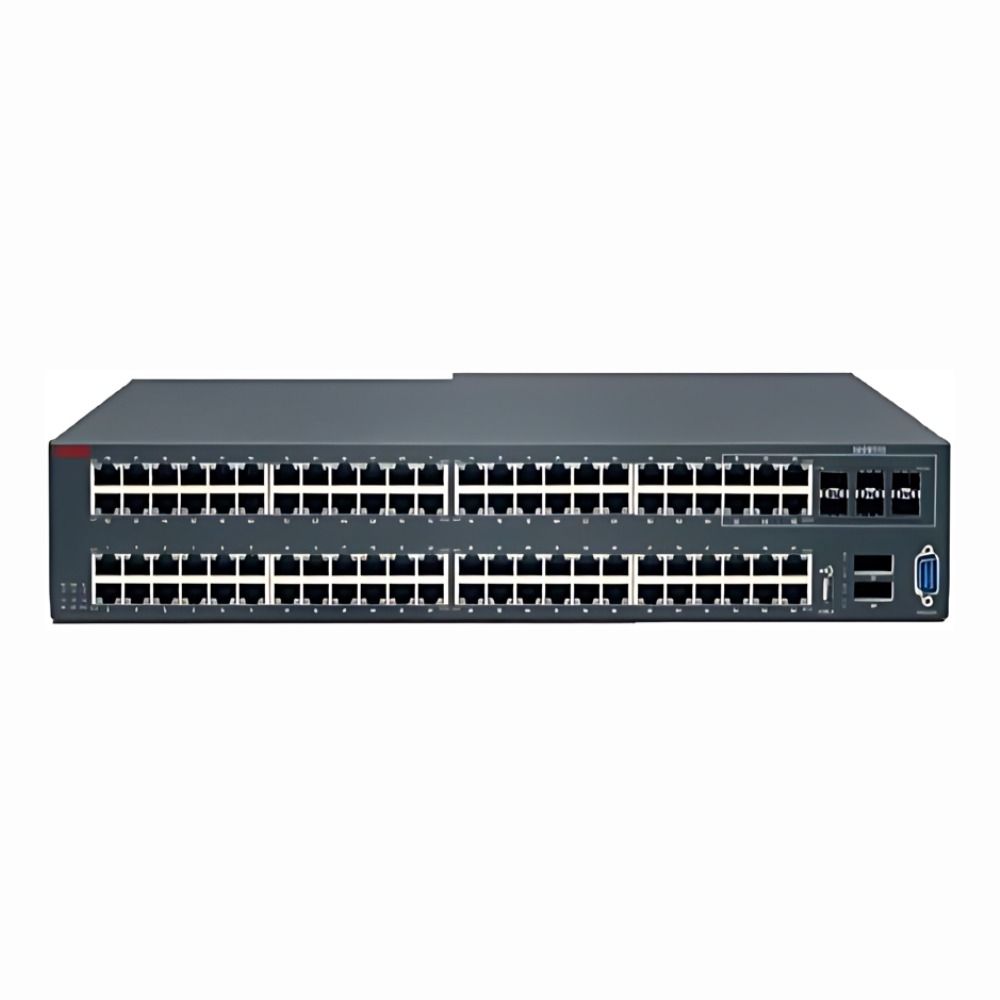

The AL1001A12-E5 Avaya 5698-Tfd is a 96-port Ethernet switch designed to combine high-density connectivity with integrated IP routing. It's a solid choice for organizations needing reliable layer 3 switching to manage complex networks in office buildings or data centers. |
| General Information | |
|---|---|
| Brand | Avaya |
| Part Number | AL1001A12-E5 |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Type | Managed Switch |
| Form Factor | Rack-Mountable |
| Mount Type | 2U Rack |
| Switch Ports | 96 x 10/100BASE-TX |
| Number of Ports | 96-Ports |
| Port Type | 10/100/1000Base-T, RJ-45 |
| Port Speed | 10/100/1000 Mbps; |
| UpLink Ports | 6 shared SFP + 2 XFP |
| POE Support | PoE |
| VLAN Support | Yes |
| Max VLANs Supported | 4094 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | RJ-45, SFP, XFP |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| Management and Configuration | |
|---|---|
| Routing Protocols | RIP, OSPF, VRRP, PIM-SM, IGMP |
| Remote Protocols | CLI, SNMPv2/v3, RMON, HTTP/HTTPS, Telnet |
| Management Interfaces | Serial console, Ethernet management port, web UI, SNMP |
| Security Features | 802.1X, RADIUS, TACACS+, ACLs, SSH, SSL, MAC authentication, Port security, DHCP snooping |
| Management Type | CLI (SSH/Telnet), Web-based GUI, SNMP v1/v2/v3, RMON |
| Remote Management Protocol | SNMPv1/v2/v3, SSH, Telnet, HTTP/HTTPS, RMON |
| Routing Protocol | Static routing, RIP v1/v2 |
| Physical Characteristics | |
|---|---|
| Dimensions | 3.5" x 19.2" x 14.5" |
| Weight | 12.00 |
| Operating Temperature | 0°C to 45°C |
| Miscellaneous | |
|---|---|
| Compliance Standards | RoHS, CE, FCC, UL |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1D, IEEE 802.1p, IEEE 802.1s (MSTP), IEEE 802.1X, IEEE 802.3ad (LACP) |
| Product Description |
|---|
The AL1001A12-E5 Avaya 5698-Tfd is a powerful 96-port Ethernet switch built for businesses that require robust network infrastructure. Often found in data centers and large enterprise networks, it manages extensive device connections with high throughput and reliability. Network administrators and IT professionals rely on this switch to streamline traffic and maintain smooth communication across complex systems. Key Features
This switch is typically deployed in environments where multiple devices and servers must be connected and managed efficiently, such as corporate campuses or data centers. It helps ensure data flows smoothly, minimizing bottlenecks and supporting a reliable network experience. |
