| Product Overview |
|---|

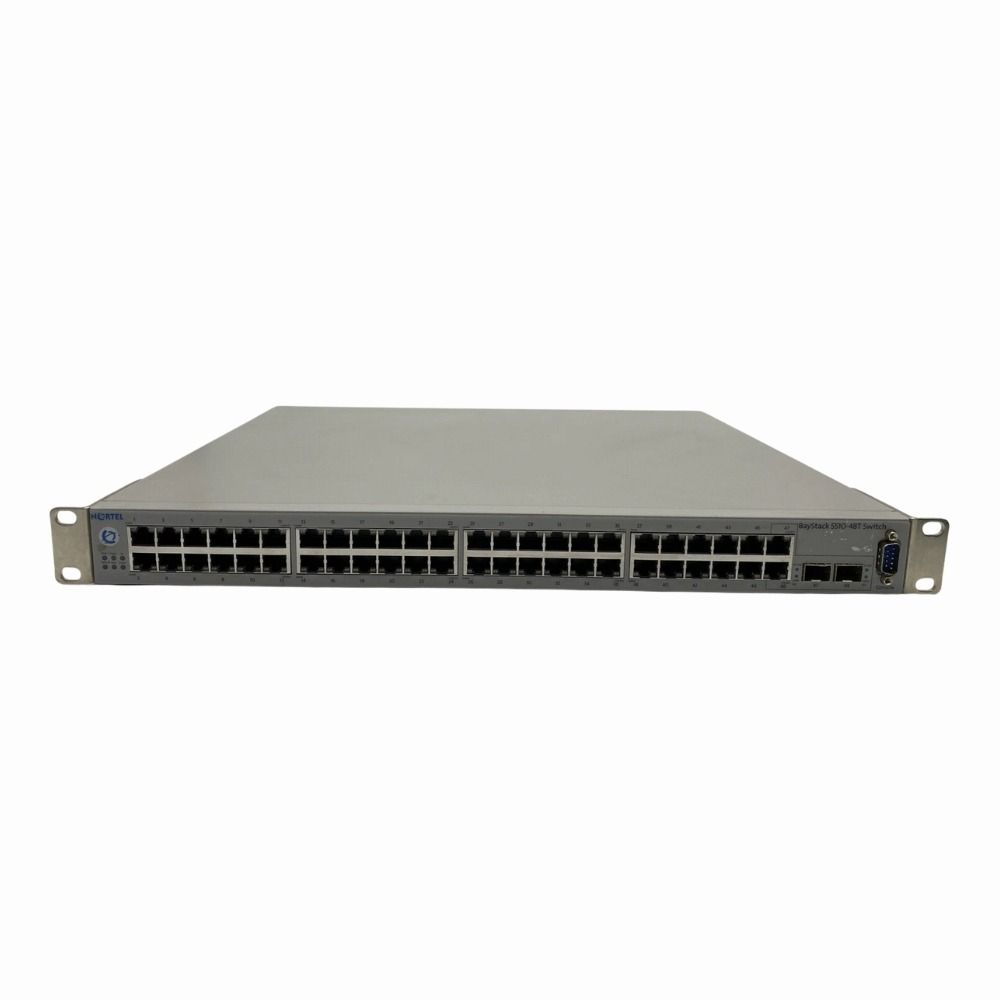

The Avaya 5510-48T 46-Port Ethernet Switch delivers dependable gigabit Ethernet connectivity across numerous devices in business networks. It fits well in setups that require solid Layer 2 switching with manageable options, providing a stable backbone for data traffic without unnecessary complexity. |
| General Information | |
|---|---|
| Brand | Avaya |
| Part Number | AL1001A03-E5 |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Type | Managed Switch |
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack |
| Switch Ports | 48 x 10/100Base-TX, 2 x 1000Base-X (SFP) uplink ports |
| Number of Ports | 48-Ports |
| Port Type | 10/100/1000Base-T, RJ-45 |
| Port Speed | 10/100/1000 Mbps |
| UpLink Ports | 2 x combo 1000Base-T/SFP (shared RJ-45/SFP) |
| POE Support | No |
| Switching Capacity | 192 Gbps |
| Switch Forwarding Rate | 71.4 Mpps |
| DRAM | 64 MB |
| Flash Memory | 32 MB |
| VLAN Support | Yes |
| Max VLANs Supported | Up to 1,024 VLANs |
| Layer Support | Layer 2, Layer 3, Layer 4 |
| Connector Type | RJ-45, SFP |
| Performance | |
|---|---|
| Latency | 9 μsec |
| Jumbo Frame Support | Up To 9000 Bytes |
| MAC Address Table Size | 16,000 entries |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, IGMP |
| Remote Protocols | Yes |
| Management Interfaces | Web (Enterprise Device Manager), SNMP v1/v2/v3, RMON, Telnet, RS-232 console, HTTP |
| Security Features | MAC filtering, 802.1X, STP/RSTP/MSTP, ACLs |
| Management Type | CLI, Web GUI (HTTP/HTTPS), SNMP |
| Security | 802.1X, RADIUS, TACACS+, Access Control Lists (ACL), Port security |
| Remote Management Protocol | SNMPv1/v2c/v3, HTTP, HTTPS, SSH, Telnet |
| Routing Protocol | Static |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.8 in x 17.3 in x 15.3 in |
| Weight | 4.00 |
| Operating Temperature | 0°C to 45°C |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Compliance Standards | WEEE, RoHS, CE, FCC |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w |
| Product Description |
|---|
The Avaya 5510-48T Ethernet Switch is designed to manage network traffic smoothly across various business environments. It is often found in office networks, data centers, and campus infrastructures where multiple devices need fast and reliable connectivity. This switch is built for IT professionals looking to optimize network performance while maintaining control over traffic flow. Key Features
This switch is typically deployed in medium-sized enterprise networks where reliable wired connections are essential. It plays a key role in maintaining steady communication between devices like servers, workstations, and IP phones. Users benefit from its consistent throughput and manageable feature set that suits a range of networking needs. |
