| Product Overview |
|---|

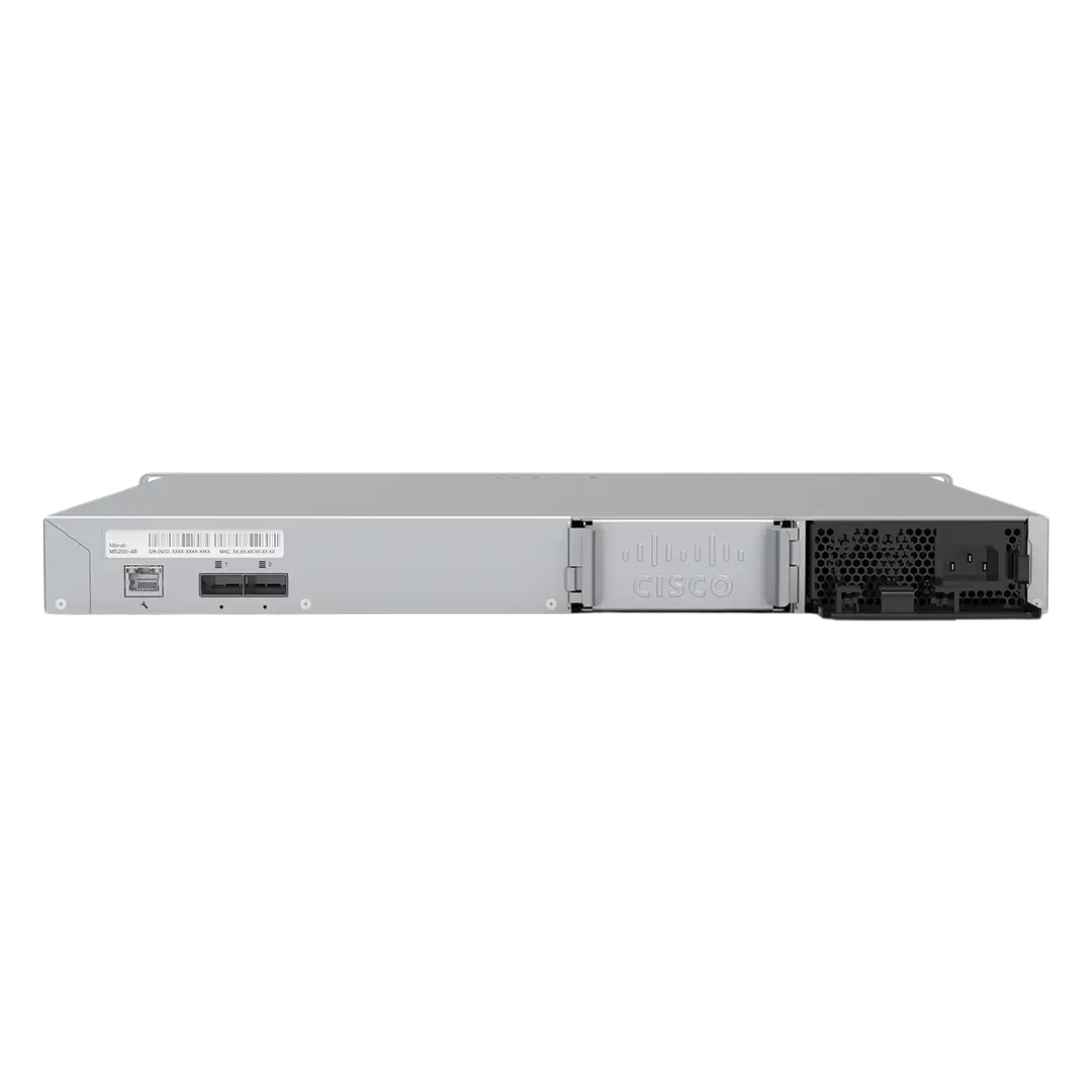

The Cisco Meraki MS120-8FP is an 8-port gigabit switch that integrates Power over Ethernet capabilities directly into a compact, easy-to-manage unit. It's designed to fit within small network setups that require both data connectivity and power delivery to devices like wireless access points or IP phones, making it a practical choice for businesses looking to streamline their infrastructure. |
| General Information | |
|---|---|
| Brand | Cisco Meraki |
| Part Number | A90-61300 |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 8 |
| Number of Ports | 8-Ports |
| Port Type | 10/100/1000Base-T, SFP |
| Port Speed | 10/100/1000 Mbps |
| UpLink Ports | 2 SFP |
| POE Support | PoE+ |
| Switching Capacity | 20 Gbps |
| Switch Forwarding Rate | 14.88 Mpps |
| DRAM | 512 MB |
| Flash Memory | 128 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | No |
| Layer Support | Layer 2 |
| Connector Type | RJ-45,SFP |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 8000 |
| Management and Configuration | |
|---|---|
| Management Interfaces | Meraki Cloud Dashboard, Web UI (local status), SNMP, REST API, Syslog |
| Security Features | 802.1X, RADIUS authentication, MAC-based access control, Access Control Lists (ACLs), DHCP snooping, Storm control |
| Remote Management Protocol | HTTPS (Dashboard), SNMP, REST API, Syslog |
| Power & Cooling | |
|---|---|
| Fans | Fanless |
| Power | Up to 130W (total power / PoE budget dependent on model/configuration) |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.02 x 8.50 x 5.12 in |
| Weight | 3.00 |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Miscellaneous | |
|---|---|
| Compliance Standards | RoHS, CE, FCC, UL |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X, IEEE 802.3af, IEEE 802.3at, IEEE 802.3ad |
| Product Description |
|---|
The Cisco Meraki MS120-8FP is a compact managed switch designed to provide reliable network connectivity with Power over Ethernet capabilities. It's often found in small to medium business environments where space is limited but network performance and device power delivery are essential. Built for IT teams and network administrators who need easy management and robust security, this switch supports a variety of connected devices including IP phones, wireless access points, and security cameras. Key Features
This switch is commonly deployed in office environments, retail stores, and branch locations where centralized control and power delivery to devices are needed. It helps simplify network setups by combining data and power over a single cable, reducing both clutter and installation complexity. |
