| Product Overview |
|---|

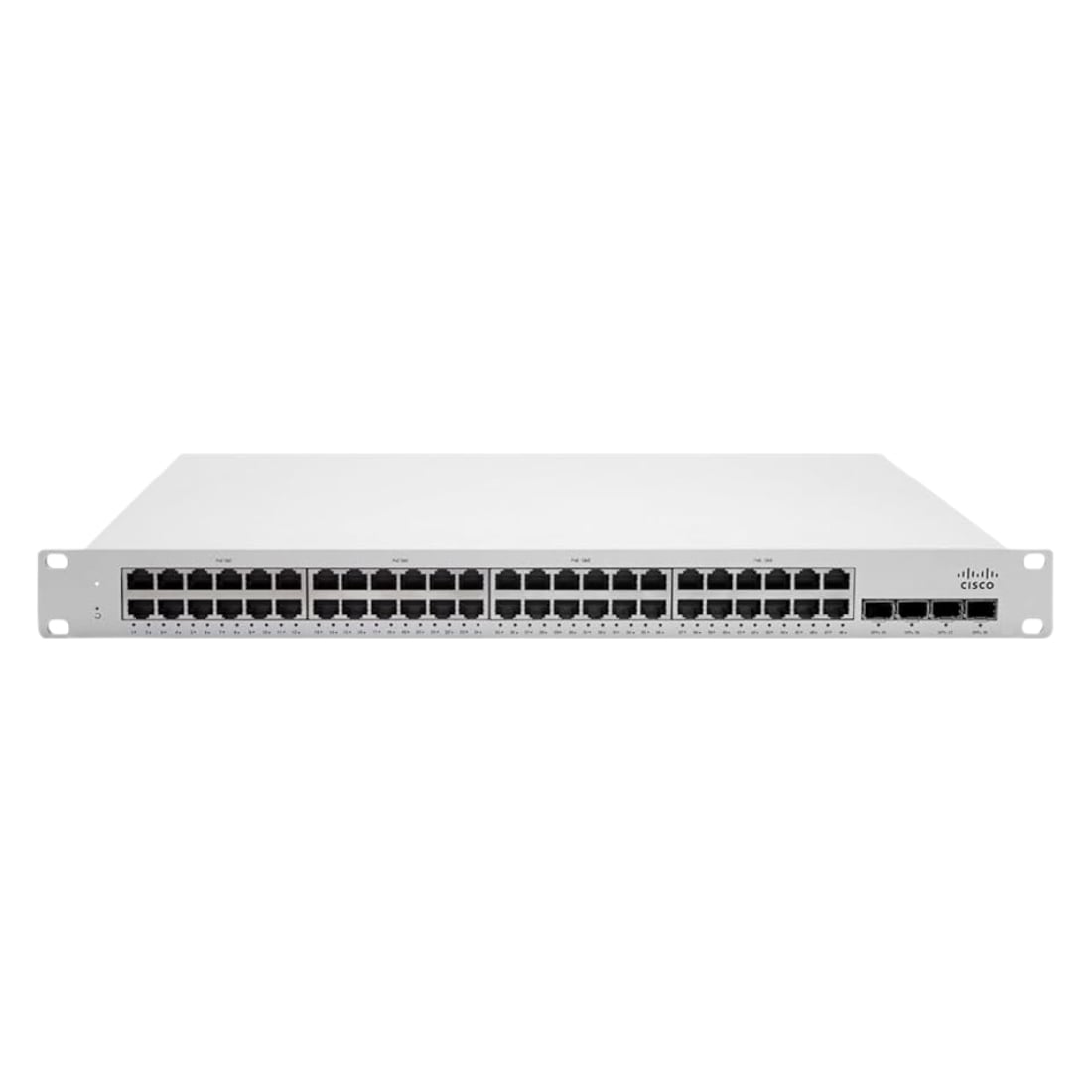

The Cisco Meraki MS250-48FP is a 48-port gigabit switch that integrates power delivery and cloud management for enterprise-grade networking. It fits well in office and campus environments where ease of use and solid performance are priorities, allowing IT teams to efficiently control network traffic and power connected devices through a single platform. |
| General Information | |
|---|---|
| Brand | Cisco Meraki |
| Part Number | A90-58900 |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 48 |
| Number of Ports | 48-Ports |
| Port Type | 10/100/1000Base-T, SFP, USB Console |
| Port Speed | 10/100/1000Base-T |
| UpLink Ports | 4 x SFP (1G) uplinks |
| POE Support | PoE+ |
| Switching Capacity | 104 Gbps |
| Switch Forwarding Rate | 77.38 Mpps |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 8192 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static |
| Remote Protocols | Yes |
| Management Interfaces | Meraki Cloud Dashboard (web), Meraki Dashboard API, SNMP, (limited) SSH, RADIUS |
| Remote Management Protocol | HTTPS, SNMP, Meraki Dashboard API, SSH |
| Routing Protocol | Static |
| Power & Cooling | |
|---|---|
| Power | PoE budget varies by model/configuration (typical 370W - 740W options) |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.73 x 17.5 x 15.0 inches |
| Weight | 3.00 |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Miscellaneous | |
|---|---|
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3af, IEEE 802.3at, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.3x |
| Product Description |
|---|
The Cisco Meraki MS250-48FP is a robust switch built to handle demanding enterprise environments. It provides 48 ports of gigabit connectivity with Power over Ethernet Plus (PoE+), making it ideal for organizations that need to power devices like IP phones, cameras, and wireless access points directly from the switch. Often found in office networks, data centers, and campus environments, this switch is favored by IT professionals seeking a combination of performance, security, and easy management. Its cloud-based dashboard lets administrators monitor and configure the network from anywhere without complex onsite setups. Key Features
This switch is commonly deployed in medium to large enterprise networks requiring reliable power delivery and flexible network segmentation. Its real-world benefit lies in reducing the complexity of network management while maintaining high performance and security standards. |
