| Product Overview |
|---|

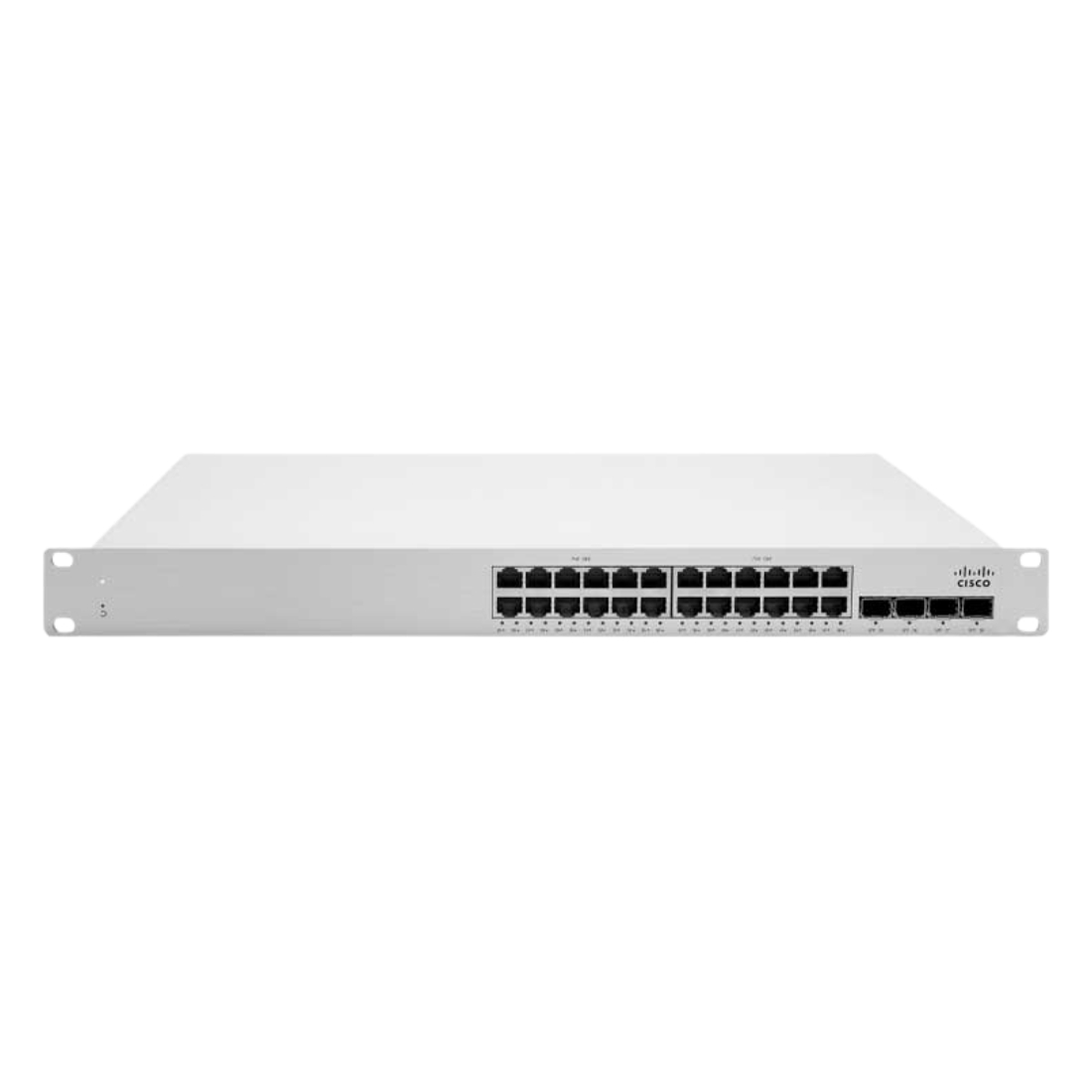

The Cisco Meraki MS210-24P is a 24-port switch that combines gigabit connectivity with Power over Ethernet, fitting well in networks needing both data and power delivery to endpoints. It simplifies network management through cloud-based controls, making it suitable for businesses aiming for straightforward setup and remote monitoring without the need for complex on-site equipment. |
| General Information | |
|---|---|
| Brand | Cisco |
| Part Number | A90-58250 |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 24 |
| Number of Ports | 24-Ports |
| Port Type | 10/100/1000Base-T, SFP |
| Port Speed | 10/100/1000 Mbps |
| UpLink Ports | 2 x 1G SFP |
| POE Support | PoE |
| Switching Capacity | 52 Gbps |
| Switch Forwarding Rate | 101.56 Mpps |
| DRAM | 256 MB |
| Flash Memory | 128 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | No |
| Layer Support | Layer 2 |
| Connector Type | RJ-45,SFP |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 8000 |
| Management and Configuration | |
|---|---|
| Management Interfaces | Meraki Dashboard (Cloud), Web (HTTPS), SSH, REST API |
| Security Features | 802.1X, RADIUS, ACLs, Port security, Storm control, BPDU Guard, Spanning Tree Protocol (STP) |
| Remote Management Protocol | HTTPS, SSH, Meraki Dashboard API |
| Physical Characteristics | |
|---|---|
| Weight | 3.00 |
| Operating Temperature | 0°C to 40°C |
| Miscellaneous | |
|---|---|
| Compliance Standards | RoHS, CE, FCC, UL |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X, IEEE 802.3x, IEEE 802.3af |
| Product Description |
|---|
The Cisco Meraki MS210-24P is a network switch designed to deliver reliable connectivity with the added benefit of Power over Ethernet. It commonly appears in small to mid-sized business networks where both data and power need to be delivered through a single cable to devices such as IP phones, wireless access points, and security cameras. Built for IT teams looking for simplified network management, this switch is often found in environments where centralized control from anywhere is essential. Its cloud-managed interface allows network administrators to configure settings, monitor traffic, and troubleshoot remotely without needing to be on-site. Key Features
This switch is typically deployed in office networks, retail stores, and other commercial settings where dependable wired connections and PoE support are necessary. It plays a key role in connecting and powering devices while offering easy network oversight. |
