| Product Overview |
|---|

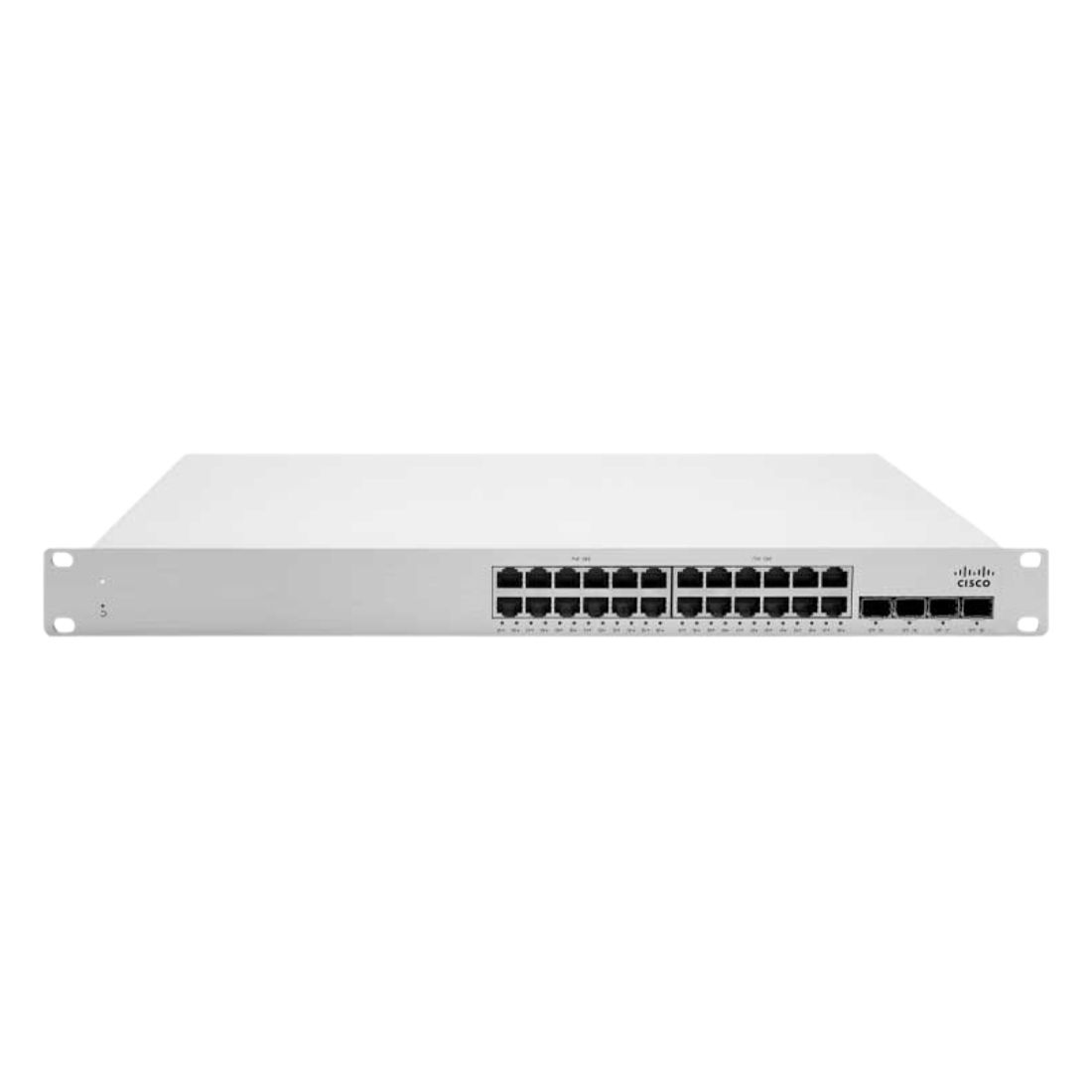

The Cisco Meraki MS225 Series 24-Port GigE switch provides a solid foundation for managing medium-sized networks, combining high-port density with a substantial PoE budget. It’s designed to fit seamlessly into environments where cloud-based management and straightforward scalability are priorities, offering both power to connected devices and centralized control in one package. |
| General Information | |
|---|---|
| Brand | Cisco Meraki |
| Part Number | A90-58200 |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 24 |
| Number of Ports | 24-Ports |
| Port Type | 10/100/1000Base-T, RJ-45, SFP |
| Port Speed | 10/100/1000Base-T |
| UpLink Ports | 2 |
| POE Support | PoE+ |
| Switching Capacity | 52 Gbps |
| Switch Forwarding Rate | 101.5625 Mpps |
| DRAM | 512 MB |
| Flash Memory | 128 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | No |
| Layer Support | Layer 3 Lite |
| Connector Type | RJ-45,SFP |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 8000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static |
| Management Interfaces | Meraki Cloud Dashboard (web), Meraki Dashboard API, SNMP |
| Security Features | 802.1X, RADIUS authentication, Access Control Lists (ACLs), Port security, Storm control |
| Remote Management Protocol | HTTPS, SNMP, Meraki Dashboard API |
| Routing Protocol | Static |
| Power & Cooling | |
|---|---|
| Power | 370W PoE budget; AC input 100-240V, 50-60Hz |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.72 x 17.24 x 10.79 in |
| Weight | 3.00 |
| Operating Temperature | 0°C to 40°C |
| Miscellaneous | |
|---|---|
| Compliance Standards | RoHS, CE, FCC, UL |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| Product Description |
|---|
The Cisco Meraki MS225 Series switch offers reliable network performance with 24 Gigabit Ethernet ports and a robust 370W Power over Ethernet (PoE) supply. This switch is commonly used in office environments, schools, and medium-sized networks where central management and power delivery to devices like IP phones and access points are essential. Built for network administrators who need straightforward cloud-based control, the MS225 makes it easier to maintain and configure the network without on-site intervention. Its stackable design allows businesses to expand their network smoothly as they grow. Key Features
This switch is often found in campus networks and branch offices where centralized management helps IT teams oversee multiple locations from one place. Its power budget supports powering Wi-Fi access points and other devices directly through Ethernet, reducing the need for separate power supplies. The MS225 fits well in settings where reliability and ease of management matter, making day-to-day network operations more efficient and less dependent on physical hardware adjustments. |
