| Product Overview |
|---|

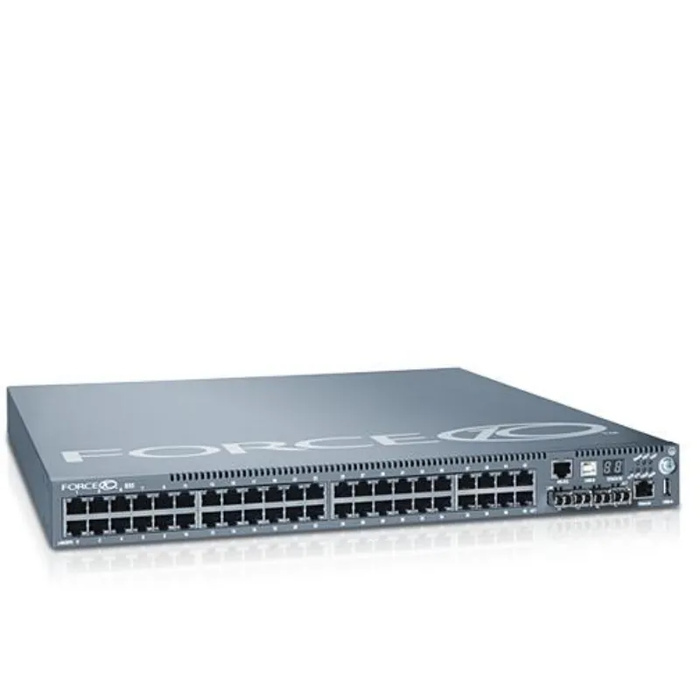

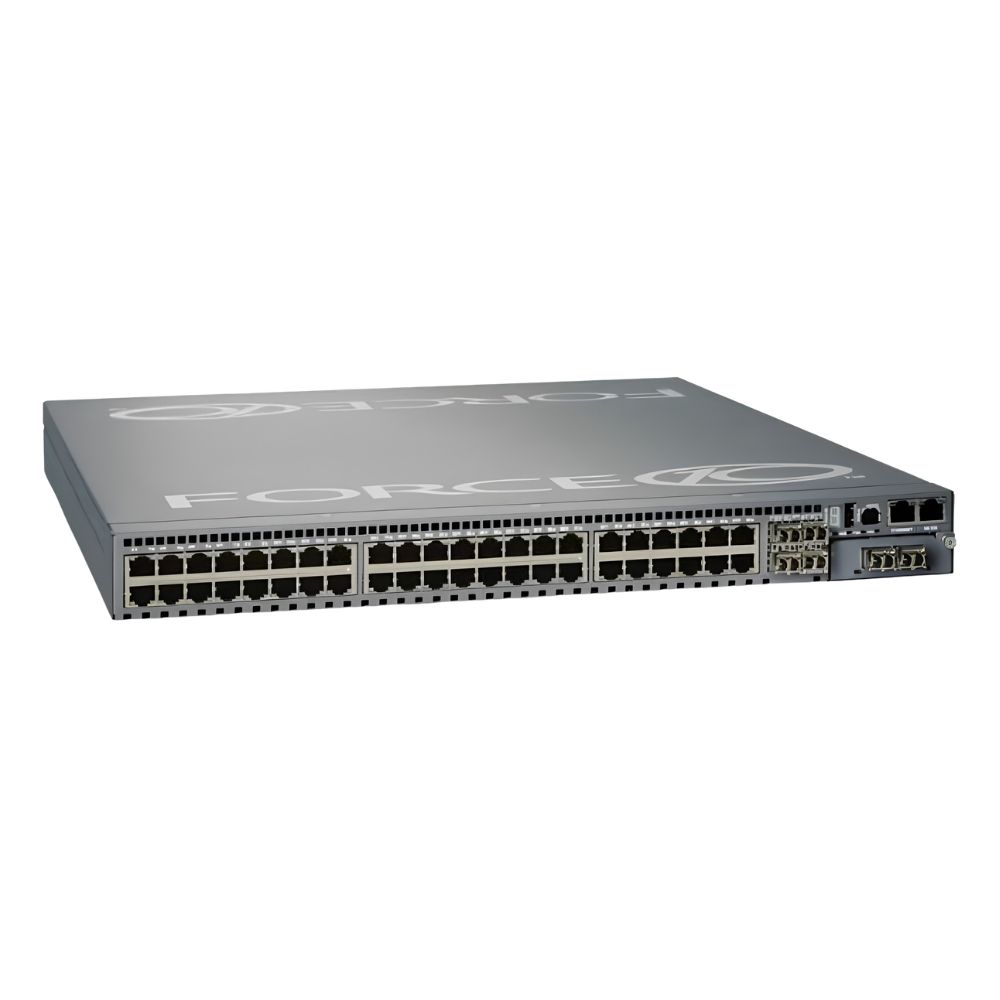

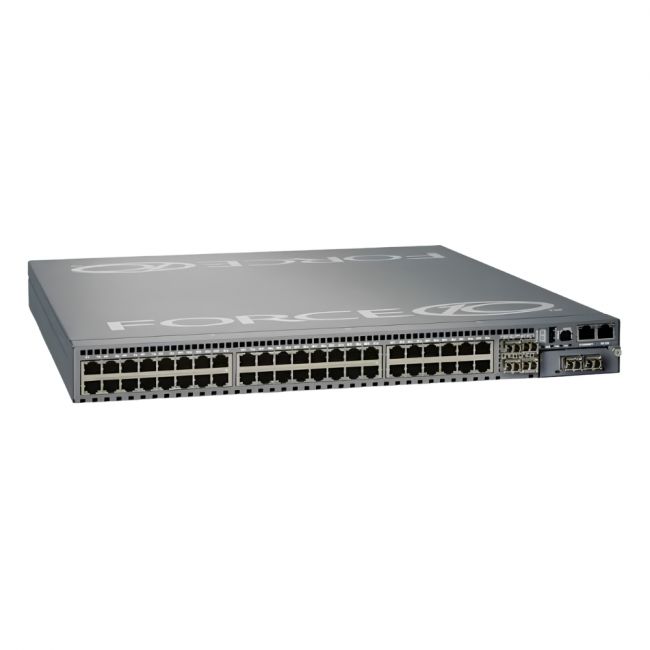

The 7VP2N Dell Force10 S-Series 44-Ports RJ-45 + 4-Ports SFP Switch combines extensive wired connectivity with flexible fiber uplink options. It fits into network environments requiring solid Layer 3 capabilities and scalable port density, addressing the needs of enterprise and data center infrastructures without overcomplicating network management. |
| General Information | |
|---|---|
| Brand | Dell |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Type | Layer 3, Managed Switch, Stackable Switch, Gigabit Switch |
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack |
| Switch Ports | 44 |
| Number of Ports | 48-Ports |
| Port Type | 10/100/1000Base-T, SFP |
| Port Speed | 10/100/1000 Mbps |
| UpLink Ports | 4 x SFP |
| POE Support | No |
| Switching Capacity | 176 Gbps |
| Switch Forwarding Rate | 130.95 Mpps |
| VLAN Support | Yes |
| Max VLANs Supported | 4094 |
| Stackable | Optional |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, BGP, VRRP, HSRP, PIM-SM, IGMP |
| Remote Protocols | Yes |
| Management Interfaces | CLI (SSH/Telnet),Web GUI,SNMP,Serial Console |
| Security Features | Access Control Lists (ACLs),802.1X,SSH,RADIUS/TACACS+ authentication,Port security |
| Management Type | Out-of-band Management,In-band Management |
| Security | 802.1X |
| Remote Management Protocol | SNMPv1/v2c/v3,SSH,Telnet,HTTP/HTTPS |
| Power & Cooling | |
|---|---|
| Fans | Redundant hot-swappable fans |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.73 x 17.3 x 16.5 in |
| Weight | 3.00 |
| Operating Temperature | 0°C to 40°C |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Assembly Required | No |
| Compliance Standards | RoHS, CE, FCC, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad, IEEE 802.3x |
| Product Description |
|---|
The 7VP2N Dell Force10 S-Series switch provides a combination of high port density and flexible uplink options, designed to manage demanding network traffic with its integrated Layer 3 functionality. Commonly found in data center and campus infrastructure, this switch supports both copper and fiber connections, offering versatility in deployment scenarios. Built for network professionals and IT teams requiring reliable, scalable switching, it handles complex routing and switching tasks efficiently. The device suits those prioritizing performance and adaptability in network design. Key Features
This switch plays a critical role in maintaining stable and efficient network operations, supporting high workloads without compromising performance. Its reliability and feature set contribute to streamlined network architecture and reduced complexity. |
| Use Cases |
|---|
The 7VP2N switch is commonly deployed in enterprise data centers and campus networks where diverse device connectivity and robust routing are essential. It benefits IT teams managing medium to large-scale networks needing reliable, high-capacity switching solutions. How It's Used:
This switch supports network scalability and operational efficiency, ensuring smooth traffic management across diverse workloads. Its balanced feature set allows for reliable network performance in demanding infrastructure setups. |
