| Product Overview |
|---|

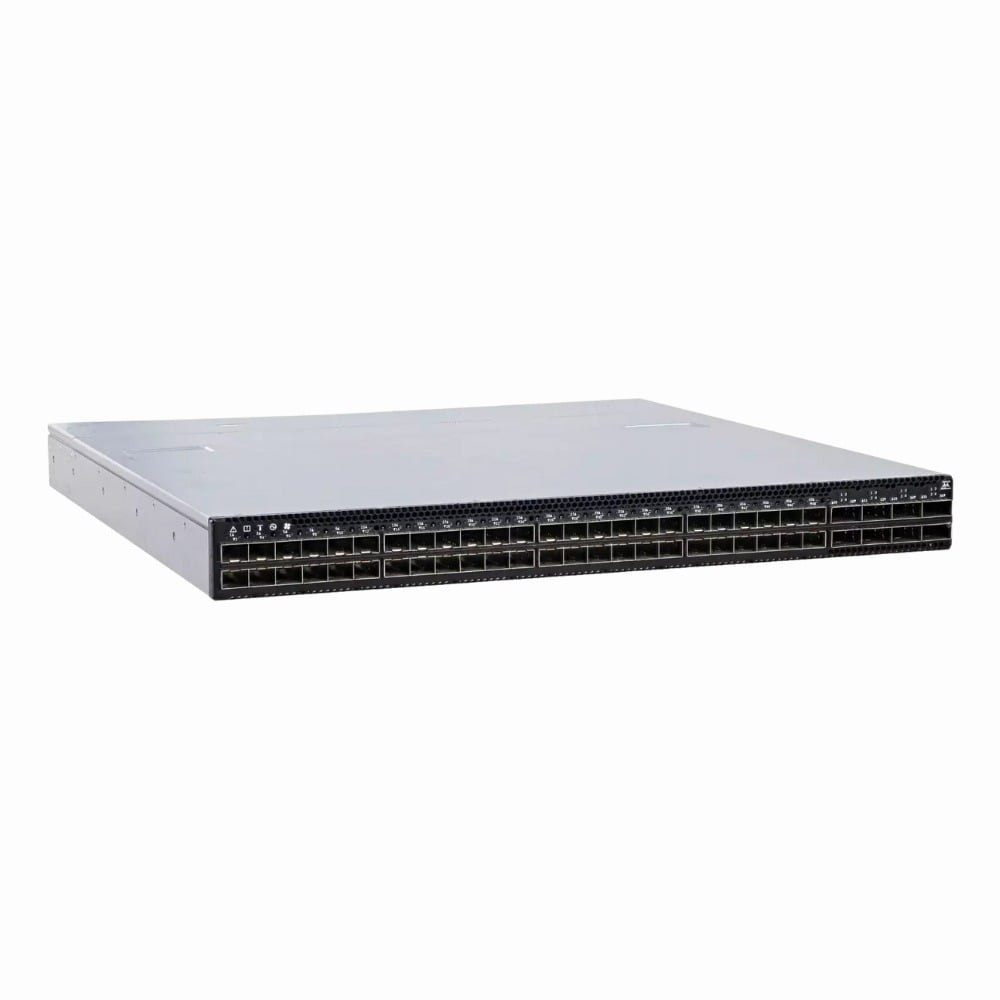

The Lenovo Mellanox SN2410 is a versatile network switch designed to deliver high-speed connections primarily through its 48 SFP28 and 8 QSFP28 ports. It fits well in data centers and enterprise environments that need scalable 25GbE and 100GbE networking solutions without taking up much rack space. |
| General Information | |
|---|---|
| Brand | Lenovo |
| Part Number | 7D5FCTO7WW |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Type | Managed Switch |
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack |
| Switch Ports | 48 x SFP28 (25G), 8 x QSFP28 (100G) |
| Number of Ports | 56-Ports |
| Port Type | 25G SFP28, 100G QSFP28, USB Console, Serial Console (RJ-45) |
| Port Speed | 25GbE |
| UpLink Ports | 8 × QSFP28 |
| POE Support | No |
| Switching Capacity | 4Tbps |
| Switch Forwarding Rate | 2.97Bpps |
| DRAM | 8GB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | No |
| Layer Support | Layer 2, Layer 3 |
| Connector Type | SFP28, QSFP28, RJ-45 (mgmt/console), USB |
| Performance | |
|---|---|
| Latency | 300µs |
| Jumbo Frame Support | Up To 9216 Bytes |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, OSPF, BGP, VRRP |
| Remote Protocols | SNMPv1/2/3, SSH‑2, Telnet, CLI, in-band Ethernet management |
| Management Interfaces | 1×RJ-45 OOB, 1×RJ-45 console, 1×USB, plus in-band |
| Security Features | RADIUS, TACACS+, ACLs, SSH, LDAP, IEEE 802.1x, LLDP, DCBX |
| Remote Management Protocol | SNMP,SSH,Telnet,HTTPS,Web UI,REST API |
| Routing Protocol | Static Routing,OSPF,BGP |
| Power & Cooling | |
|---|---|
| Fans | Hot-swappable front-to-back fan modules |
| Power | AC 100-240V, 50/60Hz |
| Power Supply | Hot-plug redundant AC power supply (model dependent) |
| Physical Characteristics | |
|---|---|
| Dimensions | 4.38 cm × 43.8 cm × 43.6 cm |
| Weight | 14.00 |
| Operating Temperature | 0°C to 40°C |
| Miscellaneous | |
|---|---|
| Compliance Standards | RoHS, CE, FCC, UL, TUV, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x |
| Product Description |
|---|
The Lenovo Mellanox SN2410 is built for high-performance networking environments that demand fast and reliable data transfer. It’s often found in data centers or enterprise networks where 25GbE and 100GbE speeds are essential for handling large volumes of traffic. This switch is commonly used by network engineers and IT teams looking for scalable, low-latency connections between servers, storage, and other network devices. Key Features
This switch is typically deployed in data centers where speed and reliability are vital. It helps maintain smooth communication between servers and storage systems, enabling efficient handling of workloads without bottlenecks. Users benefit from its combination of high port density and versatile management, making it a practical choice for growing networks that require strong performance and flexible configurations. |
