| Product Overview |
|---|

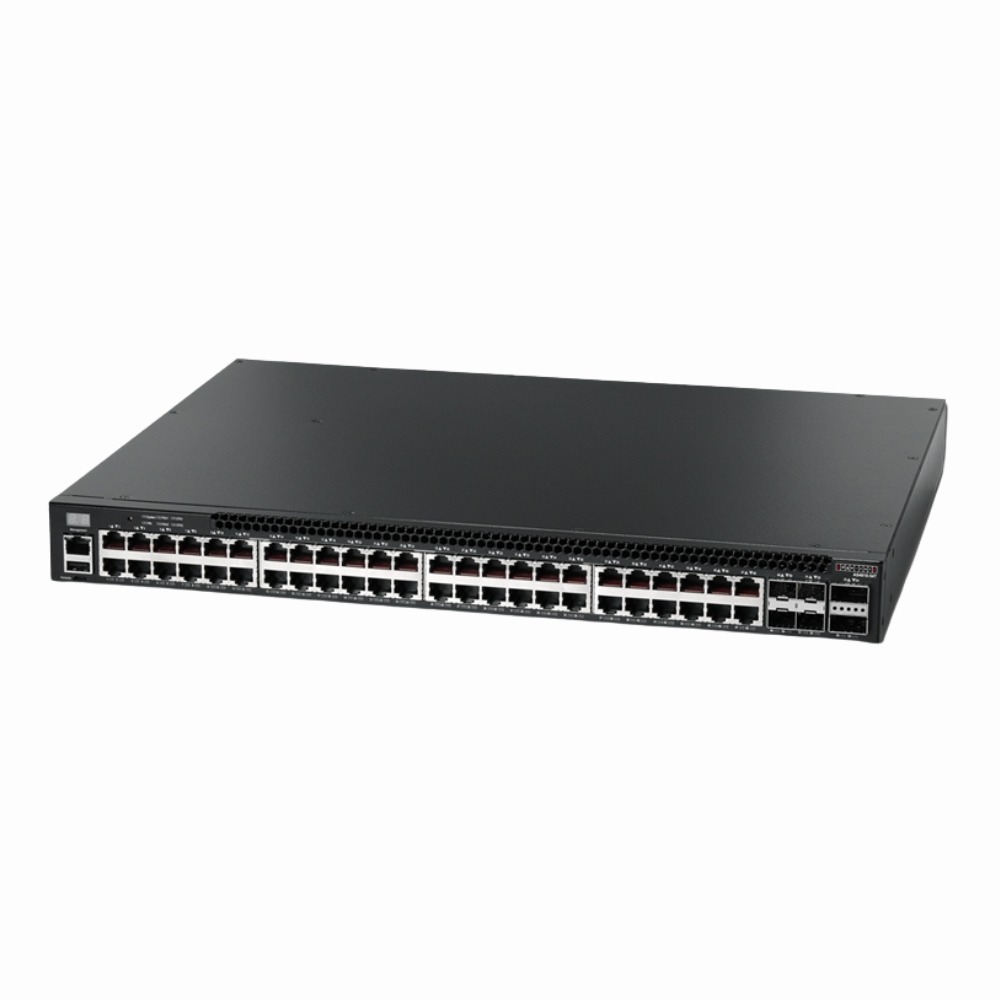

The Lenovo Mellanox AS4610 offers a solid combination of 1GbE access ports and 10GbE uplinks, fitting well in enterprise network racks. It handles Layer 3 routing tasks and comes in a compact 1U form factor, making it practical for standard data center racks. This switch bridges the gap between affordability and performance for organizations that need to manage both local and routed traffic effectively. |
| General Information | |
|---|---|
| Brand | Lenovo |
| Part Number | 7D5FCTO1WW-98-LV |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Type | Managed Switch |
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack |
| Switch Ports | 48 x 10/100/1000Base-T RJ-45,4 x 10Gb SFP+ |
| Number of Ports | 52-Ports |
| Port Type | 10/100/1000Base-T, RJ-45, SFP |
| Port Speed | 1GbE |
| UpLink Ports | 4 × SFP |
| POE Support | No |
| Switching Capacity | 128Gbps |
| Switch Forwarding Rate | 191Mpps |
| DRAM | 2GB |
| Flash Memory | 8GB NAND + 8MB SPI flash |
| VLAN Support | Yes |
| Max VLANs Supported | Supports up to 4,000 VLANs |
| Stackable | No |
| Layer Support | Layer 2, Layer 3 |
| Connector Type | RJ-45 ports |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 96K entries |
| Management and Configuration | |
|---|---|
| Routing Protocols | OSPF, BGP |
| Remote Protocols | SNMPv1/2/3, CLI (SSH/Telnet), HTTP/HTTPS, REST API (via NOS) |
| Management Interfaces | 1 × RJ-45 mgmt, 1 × micro-USB, 1 × RJ-45 serial console |
| Security Features | ACLs, RADIUS, TACACS+, role-based auth, VLAN segmentation |
| Remote Management Protocol | SNMPv1/v2c/v3, SSH, Telnet, HTTP, HTTPS, RMON, Syslog |
| Routing Protocol | Static Routing, RIP v1/v2, OSPF, VRRP |
| Power & Cooling | |
|---|---|
| Fans | 2 (hot-swappable system fans) |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.77″ × 17.32″ × 13.78″ |
| Weight | 12.00 |
| Operating Temperature | 0°C to 40°C |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Compliance Standards | WEEE, RoHS, CE, FCC, UL |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.3x |
| Product Description |
|---|
The Lenovo Mellanox AS4610 is a versatile network switch built for modern enterprise and data center environments. It offers 48 RJ-45 ports delivering 1GbE connections alongside 4 SFP+ ports that allow for 10GbE uplinks, making it suitable for both aggregation and access layers in network architectures. Often found in network rooms or server racks, this switch is commonly used by IT teams who require robust Layer 3 routing features to manage complex traffic flows efficiently. It is designed for organizations needing scalable connectivity with manageable network policies and high uptime. Key Features
This switch is typically deployed in mid-sized to large enterprise networks, data centers, or campus environments where reliable gigabit connectivity and routing are essential. It enables IT staff to maintain smooth network operations and supports growing traffic demands without frequent hardware upgrades. |
