| Product Overview |
|---|

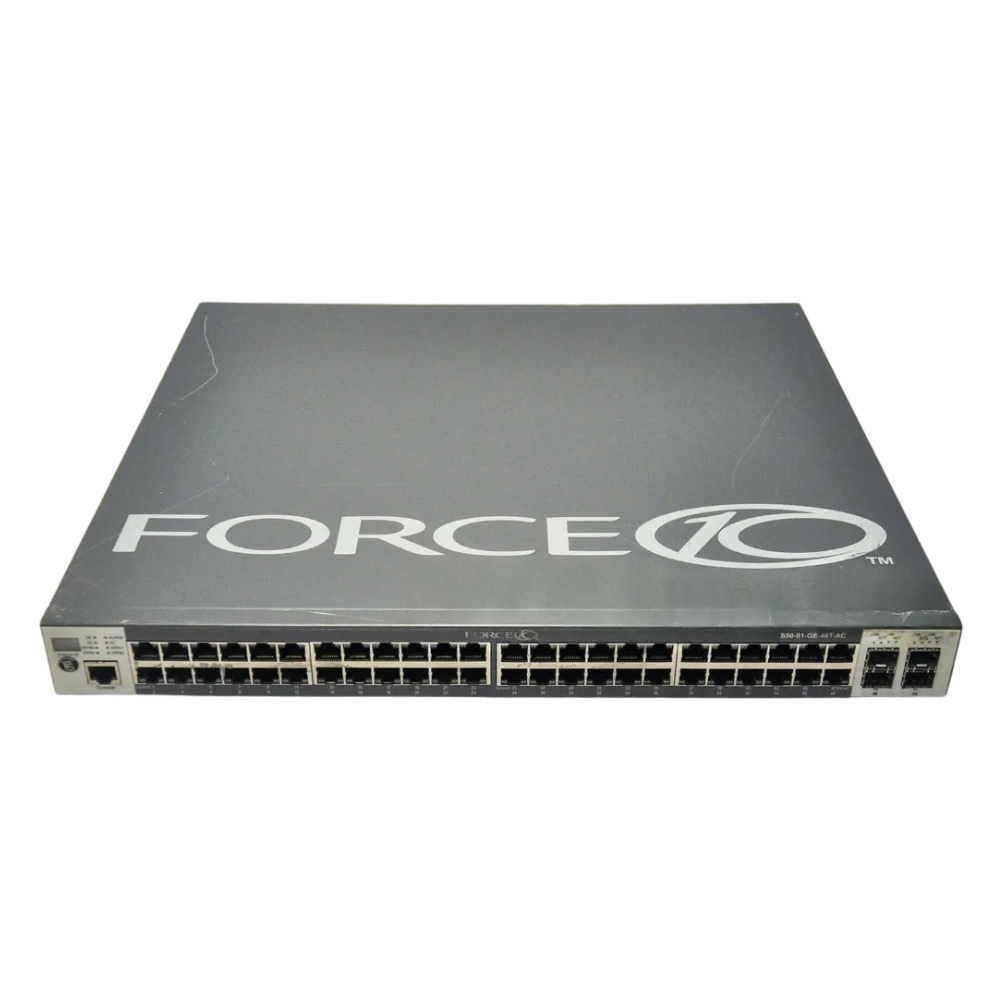

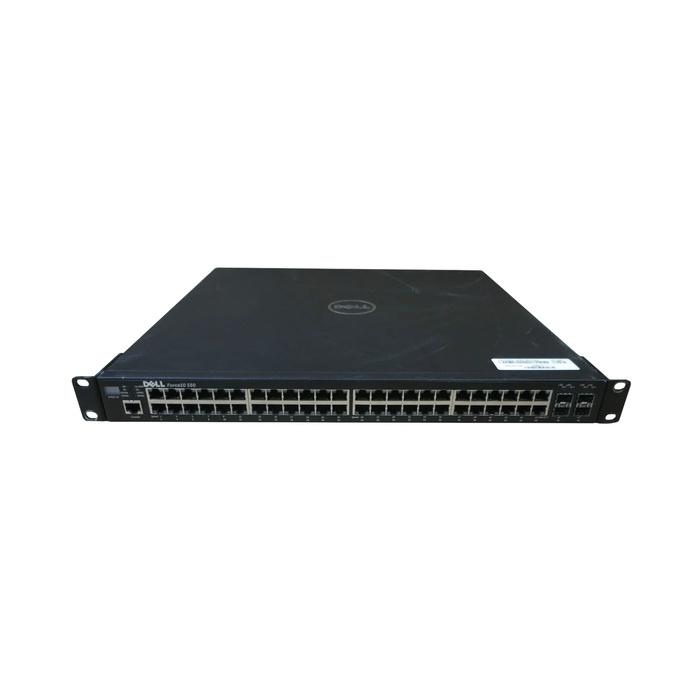

The 759-00056-05 Dell Force10 S50 switch combines a large number of Gigabit Ethernet ports with several SFP fiber uplinks, fitting well within mid to large-scale network environments. It facilitates high-density connectivity and supports reliable data transport across varied enterprise networks. |
| General Information | |
|---|---|
| Brand | Dell |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Type | Layer 3, Managed Switch, Stackable Switch, Gigabit Switch |
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack |
| Switch Ports | 48 |
| Number of Ports | 48-Ports |
| Port Type | 10/100/1000Base-T, 1000Base-X, USB Console, Serial Console (RJ-45) |
| Port Speed | 10/100/1000 Mbps |
| UpLink Ports | 4 x SFP (1000Base-X) |
| POE Support | No |
| Switching Capacity | 104 Gbps |
| Switch Forwarding Rate | 203.125 Mpps |
| DRAM | 256 MB |
| Flash Memory | 128 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 4094 |
| Stackable | Optional |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP,Serial Console (RJ-45),USB Console |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 32000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, BGP, VRRP, PIM-SM, IGMP |
| Remote Protocols | Yes |
| Management Interfaces | Web (HTTP/HTTPS),CLI (SSH,Telnet),SNMP,Serial Console,USB |
| Security Features | ACLs,802.1X,RADIUS,TACACS+,SSH,SSL,Port Security,Storm Control |
| Management Type | Managed |
| Remote Management Protocol | SNMPv1,SNMPv2c,SNMPv3,SSH,Telnet,HTTPS |
| Power & Cooling | |
|---|---|
| Fans | Yes (internal fans) |
| Power Supply | Internal AC (100-240V) |
| Physical Characteristics | |
|---|---|
| Weight | 3.00 |
| Operating Temperature | 0°C to 40°C |
| Miscellaneous | |
|---|---|
| Assembly Required | No |
| Compliance Standards | WEEE, RoHS, CE, FCC, cULus |
| Compliant Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1D,IEEE 802.1w,IEEE 802.3ad |
| Product Description |
|---|
The 759-00056-05 Dell Force10 S50 switch is built to handle demanding network traffic with a combination of numerous Gigabit Ethernet ports and flexible SFP uplink options. It is often found in data centers and enterprise network setups where reliable and efficient switching is required. Network administrators and IT professionals favor this switch for its ability to support dense connectivity while maintaining performance, making it suitable for environments with growing bandwidth needs. Key Features
This switch delivers dependable connectivity and consistent throughput, contributing to stable network infrastructure. Its capacity to manage numerous connections simultaneously makes it a practical choice for diverse network topologies. With its performance and design, the Dell Force10 S50 integrates well into existing network frameworks, helping maintain operational efficiency without unnecessary complexity. |
| Use Cases |
|---|
The Dell Force10 S50 switch is ideal for organizations needing versatile and high-capacity network solutions. How It's Used:
This switch supports diverse networking needs, enabling efficient and scalable network architecture suitable for demanding enterprise applications. |
