| Product Overview |
|---|

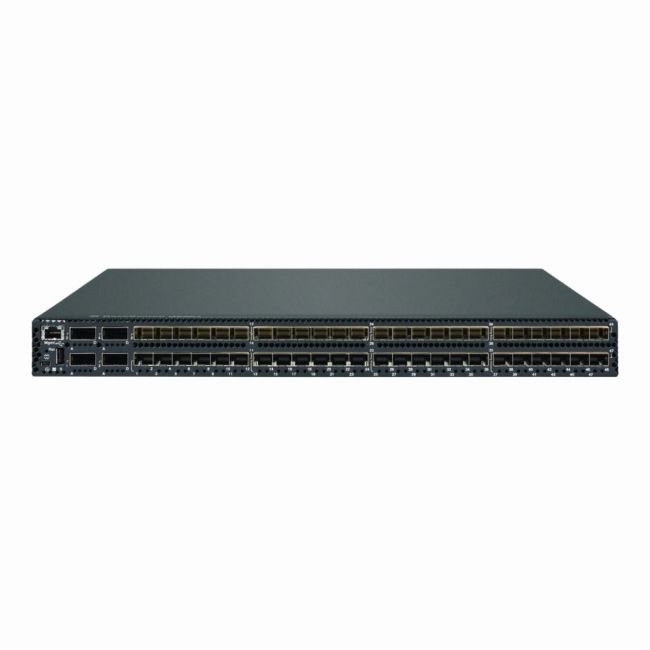

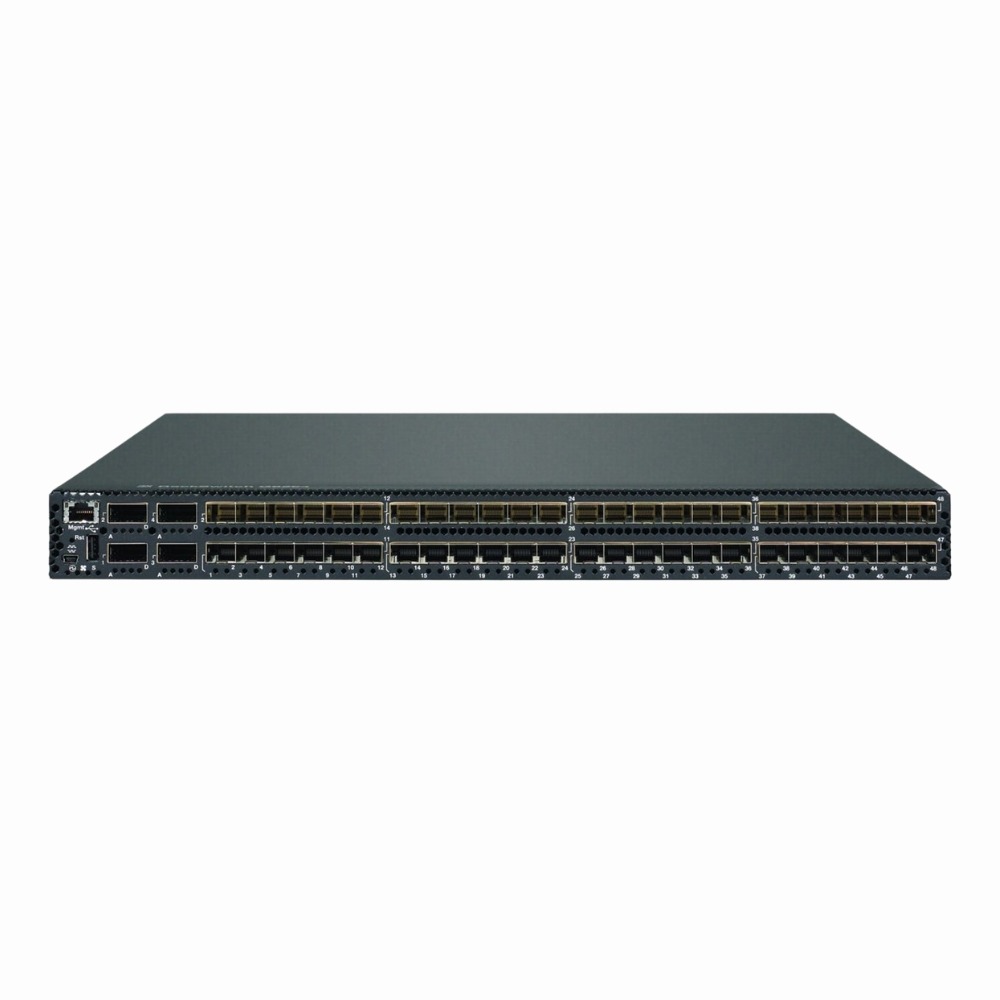

The Lenovo RackSwitch G8264 delivers dense fiber connectivity with its 48 SFP/SFP+ ports and expands uplink capacity through 4 QSFP+ slots. It fits into rack environments where rear to front airflow aligns with cooling strategies. Layer 3 routing capabilities mean it handles both switching and routing tasks efficiently, making it a solid choice for complex network setups. |
| General Information | |
|---|---|
| Brand | Lenovo |
| Part Number | 7159G64 |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Type | Managed Switch |
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack |
| Switch Ports | 48 x SFP/SFP+, 4 x QSFP+ expansion slots |
| Number of Ports | 52-Ports |
| Port Type | 40G QSFP+, SFP, SFP+, USB Console, Serial Console (RJ-45) |
| Port Speed | 1 GbE, 10 GbE on SFP/SFP+; QSFP+ supports 40 GbE or 4×10 GbE via breakout |
| UpLink Ports | 4 × QSFP+ |
| POE Support | No |
| Switching Capacity | 1.28 Tbps |
| Switch Forwarding Rate | 1.28 Tbps (non-blocking switching capacity) — ~2,500 Mpps (64‑byte frames) |
| VLAN Support | Yes |
| Max VLANs Supported | Up to 4095 VLANs |
| NIM Slot | 4 |
| Layer Support | Layer 2, Layer 3 |
| Connector Type | SFP/SFP+, QSFP+, RJ-45, mini-USB console, USB |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 128,000 entries |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPFv3, BGP |
| Remote Protocols | CLI, SNMPv1/v3, Netconf, optional XClarity |
| Management Interfaces | RJ-45 10/100/1000 OOB, mini-USB console, USB port |
| Security Features | SSH, SCP, sFTP, RBAC, ACLs, 802.1x, LDAP/Radius/TACACS+, port ACLs |
| Security | 802.1X, ACLs, SSH, RADIUS, TACACS+ |
| Remote Management Protocol | SNMP, SSH, Telnet, HTTP/HTTPS, CLI |
| Routing Protocol | Static routing, OSPF, RIP, BGP |
| Power & Cooling | |
|---|---|
| Fans | Hot‑swappable, redundant fan modules (rear‑to‑front airflow) |
| Physical Characteristics | |
|---|---|
| Weight | 24.00 |
| Operating Temperature | 0°C to 40°C (typical operating range) |
| Miscellaneous | |
|---|---|
| Compliance Standards | WEEE, RoHS, CE, FCC |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3ad (LACP), IEEE 802.1Q (VLAN tagging), IEEE 802.1p (QoS), IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1s (MSTP), IEEE 802.3x (Flow Control), SNMP/RMON |
| Product Description |
|---|
The Lenovo RackSwitch G8264 is built for data centers requiring high-density, high-performance network solutions. It’s commonly found in enterprise environments where reliable fiber connectivity and advanced routing are critical for managing complex traffic. This switch suits network administrators and IT professionals who need a versatile, rack-mountable device with robust management features. Key Features
This switch is typically deployed in server farms and large-scale network cores where traffic demands are high and flexibility is essential. Its airflow design helps maintain optimal operating temperatures in dense racks. The Lenovo G8264 plays a key role in ensuring smooth data flow and network stability in demanding environments. |
