| Product Overview |
|---|

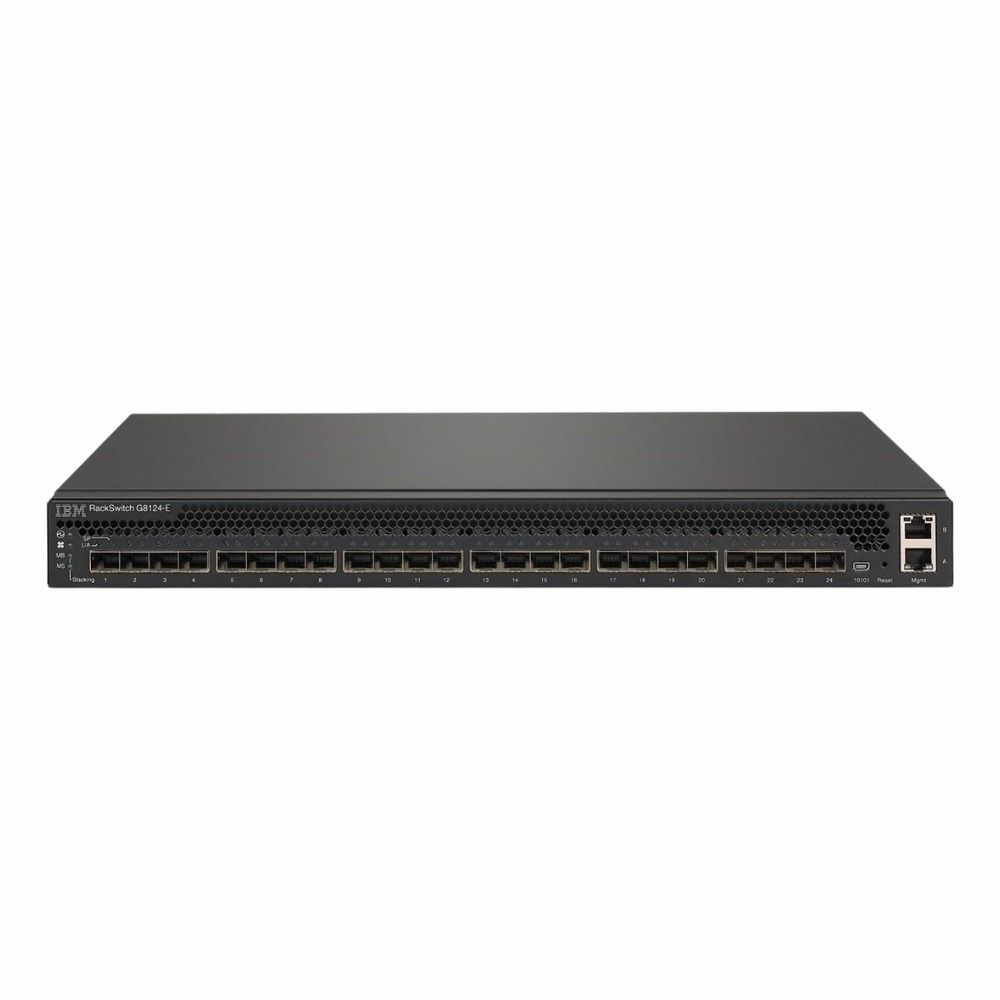

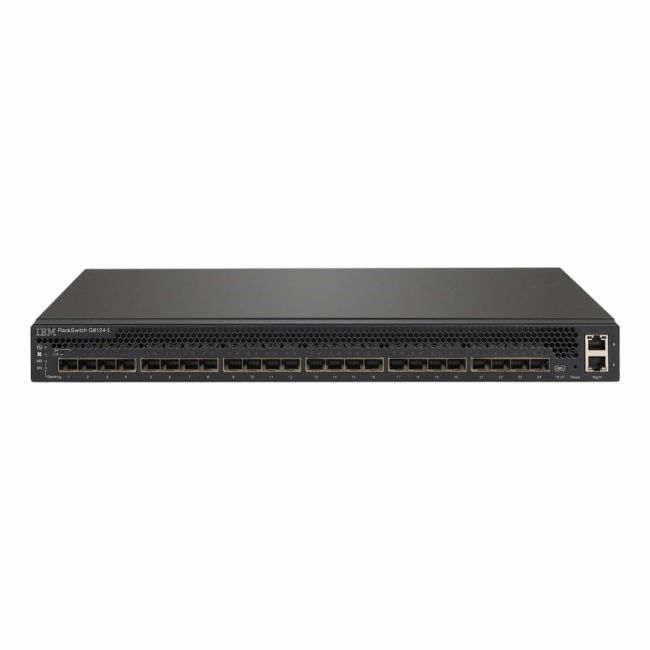

The Lenovo RackSwitch G8124E delivers versatile 1GbE and 10GbE uplink capabilities through its 24 SFP/SFP+ ports. It fits well in data centers and enterprise setups where strong throughput and flexible Layer 2/3 networking are essential. This switch is a solid choice for teams needing reliable, compact hardware that supports both current and evolving network demands. |
| General Information | |
|---|---|
| Brand | Lenovo |
| Part Number | 7159BR6 |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack |
| Switch Ports | SFP,SFP+ |
| Number of Ports | 26-Ports |
| Port Type | SFP, SFP+ |
| Port Speed | 10 GbE |
| UpLink Ports | QSFP+ |
| POE Support | No |
| Switching Capacity | 480 Gbps |
| Switch Forwarding Rate | 357 Mpps |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | No |
| Layer Support | Layer 2, Layer 3 |
| Connector Type | SFP/SFP+, RJ-45, Mini-USB |
| Performance | |
|---|---|
| Latency | 570 ns |
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 16,000 entries |
| Management and Configuration | |
|---|---|
| Routing Protocols | RIP, OSPF, BGP, VRRP, PIM-SM, PIM-DM |
| Remote Protocols | CLI (ISCLI), SNMP v1/v3, Netconf, optional Lenovo XClarity |
| Management Interfaces | 2× Gigabit RJ‑45, 1× Mini‑USB console; support for Web, SSH, Telnet |
| Security Features | SSH, SCP, SFTP, RBAC, ACLs (MAC/IP/VLAN), 802.1x, RADIUS, TACACS+, LDAP/LDAPS |
| Security | 802.1X, ACLs, SSH, RADIUS |
| Remote Management Protocol | SNMP,SSH,Telnet,HTTP,HTTPS |
| Routing Protocol | Static routing (Layer 3 features) |
| Power & Cooling | |
|---|---|
| Fans | Redundant system fans (front-to-back airflow) |
| Power | AC 100-240V, 50-60Hz |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.7″ × 17.3″ × 15.0″ |
| Weight | 15.00 |
| Operating Temperature | 0°C to 40°C |
| Miscellaneous | |
|---|---|
| Compliance Standards | RoHS, CE, FCC, UL |
| Compliant Standards | IEEE 802.3, IEEE 802.3ae (10GbE), IEEE 802.1Q (VLAN), IEEE 802.1p (QoS), IEEE 802.1X (Port-based authentication) |
| Product Description |
|---|
The Lenovo RackSwitch G8124E is a high-speed Ethernet switch designed for demanding network environments. It provides 24 SFP/SFP+ ports that accommodate both 1 Gigabit and 10 Gigabit Ethernet connections, making it suitable for uplinks or server connectivity. Often found in data centers and enterprise networks, this switch supports advanced features that help manage traffic efficiently and ensure reliable performance. Network administrators and IT professionals benefit from its versatile deployment options and robust capabilities. Key Features
This switch is typically deployed in data centers, campus networks, or any environment requiring fast, reliable connectivity between servers and network devices. Its features help streamline data flows and improve overall network efficiency without taking up excessive rack space. |
