| Product Overview |
|---|

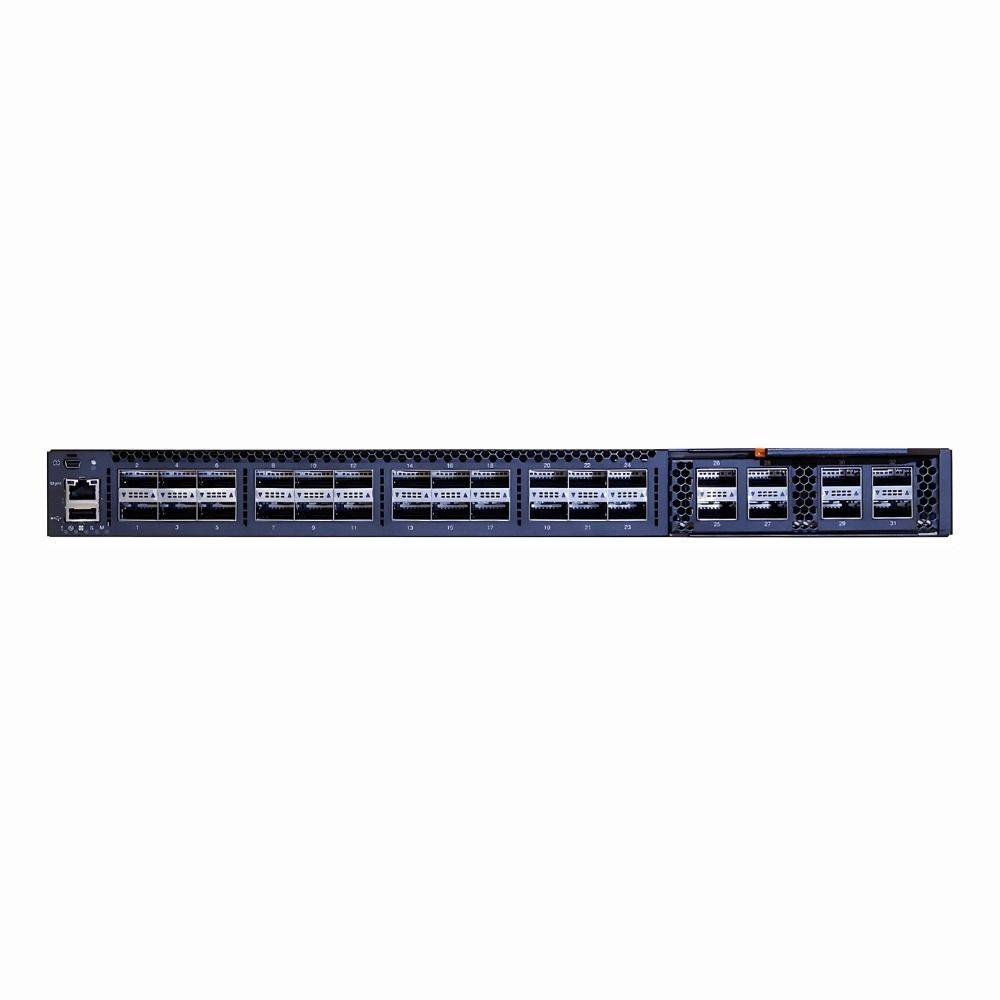

The Lenovo RackSwitch G8332 offers a strong mix of high-speed connectivity and routing features, fitting well into data center environments. It provides dense 40GbE ports in a compact rack-mount design, balancing performance with efficient airflow. This switch supports complex Layer 3 tasks and includes an expansion slot for added flexibility, making it a reliable component for managing growing network infrastructures. |
| General Information | |
|---|---|
| Brand | Lenovo |
| Part Number | 7159BFX |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Type | Managed Switch |
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack |
| Switch Ports | 32 x QSFP+ (40GbE) ports, front-to-rear airflow |
| Number of Ports | 32-Ports |
| Port Type | QSFP / QSFP+ |
| Port Speed | 40 Gbps |
| POE Support | No |
| Switching Capacity | 2.56 Tbps |
| Switch Forwarding Rate | 600 ns |
| VLAN Support | Yes |
| Max VLANs Supported | Supports up to 4,095 VLANs |
| NIM Slot | 1 |
| Stackable | No |
| Layer Support | Layer 2, Layer 3 |
| Connector Type | 32× QSFP+, plus 1× RJ45 OOB, 1× mini-USB console, 1× USB storage |
| Performance | |
|---|---|
| Latency | <600 ns |
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 128,000 entries |
| Management and Configuration | |
|---|---|
| Routing Protocols | RIP, OSPF, OSPFv3, VRRP, PIM-SM, PIM-DM |
| Remote Protocols | SNMP v1/2/3, SSH, Telnet, HTTP/HTTPS, TFTP, CLI, SCP |
| Management Interfaces | Console: RJ45 mini-USB; OOB: RJ45; USB for storage |
| Security Features | ACLs, 802.1x, RADIUS, TACACS+, DHCP relay, Control Plane Protection |
| Management Type | CLI (SSH/Telnet), Web GUI, SNMP v1/v2c/v3, RESTful API |
| Security | ACLs, 802.1X, RADIUS, TACACS+, SSH, HTTPS, IP/MAC/Port controls |
| Remote Management Protocol | SNMP, SSH, Telnet, HTTP, HTTPS, REST |
| Routing Protocol | Static routing, OSPF, BGP, RIP (IPv4 and IPv6 support) |
| Power & Cooling | |
|---|---|
| Fans | Front-to-rear hot-swappable fan modules (4) |
| Power | AC 100-240V, 50-60Hz (power consumption varies by configuration) |
| Power Supply | Dual hot-swappable AC power supplies (1+1 redundant), 100-240VAC |
| Physical Characteristics | |
|---|---|
| Dimensions | 44 mm × 439 mm × 513 mm |
| Weight | 26.00 |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, TUV, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3ba (40GbE), IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3x (flow control), IEEE 802.1D (STP) |
| Product Description |
|---|
The Lenovo RackSwitch G8332 is built for demanding network environments requiring fast, reliable data transmission. It commonly serves as a core or aggregation switch in data centers, providing robust connectivity with 32 QSFP+ ports that support 40GbE speeds. Often found in enterprise and cloud infrastructure setups, this switch handles complex Layer 3 routing functions, making it suitable for IT teams managing large-scale networks. Its front to rear airflow design helps maintain optimal temperatures in tightly packed racks. Key Features
This switch is typically installed in core network racks where space and cooling efficiency are critical. It plays a key role in ensuring smooth data flows across servers, storage, and other network devices without bottlenecks. Users benefit from its balance of speed, scalability, and thermal management, making it a practical choice for evolving network demands in enterprise and cloud settings. |
