Name: 715964F Lenovo 48x10GbE 4x40GbE Layer 3 Managed Switch Dual PSU 1U
Brand: Lenovo
SKU: 715964F
Price: 1083.00 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview

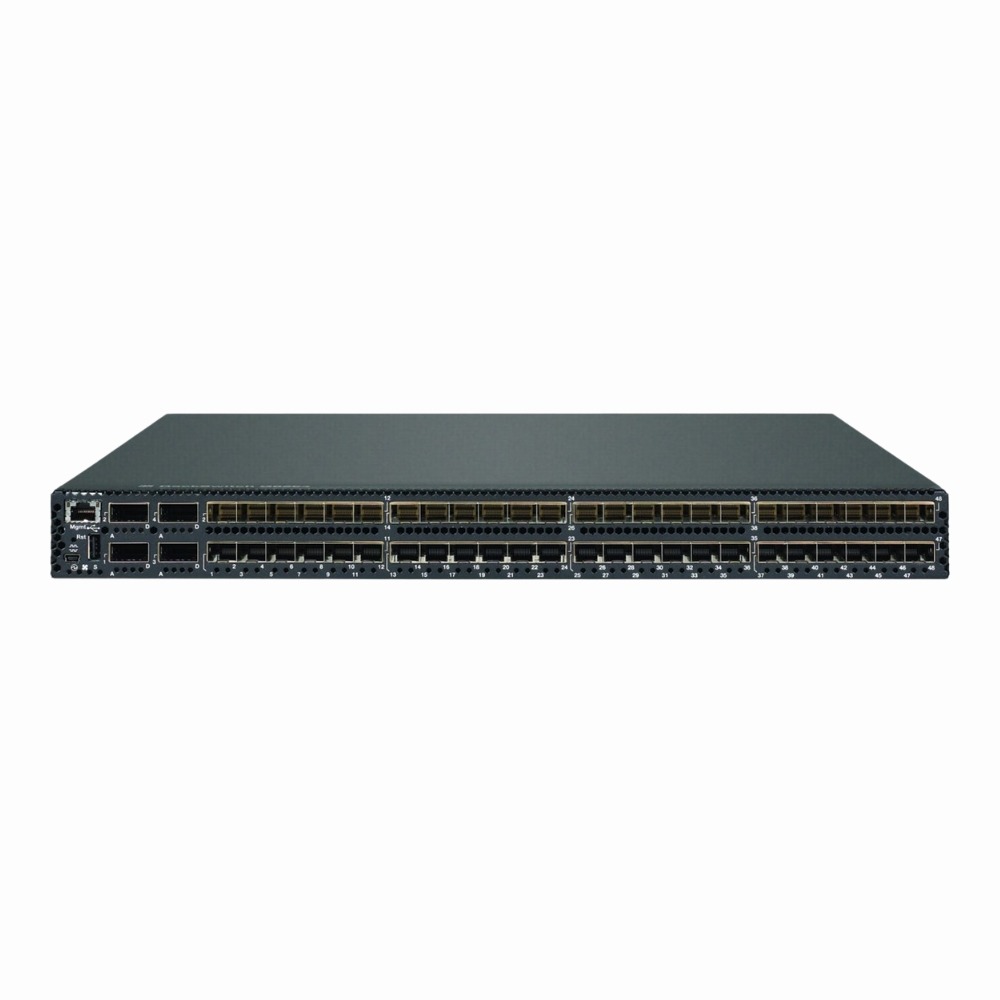

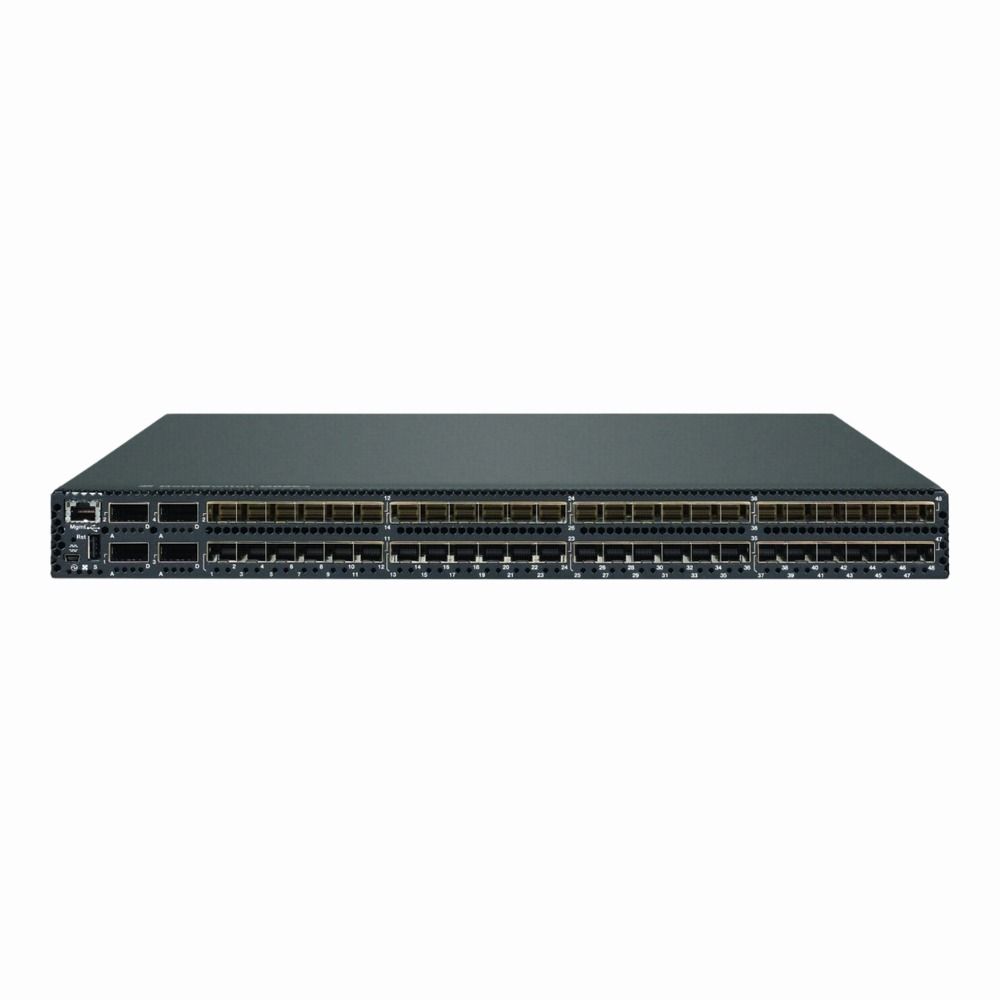

The Lenovo RackSwitch G8264 offers a comprehensive networking solution with 48 10GbE ports and 4 40GbE QSFP+ uplinks, designed to fit into standard 1U rack spaces. It handles Layer 3 routing tasks that are essential for traffic management in busy networks, while its dual power supplies help keep systems running without interruption. This switch suits environments requiring dependable, managed network infrastructure with high throughput and flexibility.

General Information
Brand	Lenovo
Part Number	715964F
Condition	Refurbished

Technical Information
Form Factor	Rack-Mountable
Mount Type	1U Rack
Switch Ports	715964F Lenovo RackSwitch G8264 - 48 x 10GbE SFP+; 4 x 40GbE QSFP+ (1U rack-mountable)
Number of Ports	52-Ports
Port Type	SFP+, QSFP / QSFP+
Port Speed	1/10 GbE on SFP+, 40 GbE on QSFP+
UpLink Ports	4 × QSFP+
POE Support	No
Switching Capacity	1.28 Tbps
VLAN Support	Yes
Max VLANs Supported	Supports up to 4095 VLANs
Layer Support	Layer 2, Layer 3
Connector Type	SFP+, QSFP+

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	128,000 entries

Management and Configuration
Routing Protocols	RIP, OSPF, OSPFv3, BGP, VRRP, PIM-SM, PIM-DM
Remote Protocols	CLI, SSH, Telnet, SNMPv1/v2/v3, HTTP/HTTPS, TFTP
Security Features	RADIUS, TACACS+, 802.1x, ACLs, DHCP relay, LLDP, sFlow, DCBX, OpenFlow
Security	802.1X, RADIUS, TACACS+, ACLs, SSH, Port security, Storm control
Remote Management Protocol	SNMP (v1/v2c/v3), SSH, Telnet, HTTP, HTTPS, RMON
Routing Protocol	Static routing, OSPF, BGP, RIP

Power & Cooling
Fans	Hot-swappable redundant fans (variable speed)
Power	AC 100-240V, 50-60Hz; redundant hot-swappable power supplies
Power Supply	Dual hot-swappable redundant AC power supplies

Physical Characteristics
Dimensions	4.4 cm × 44 cm × 51.3 cm
Weight	22.00
Operating Temperature	0°C to 40°C

Miscellaneous
Compliance Standards	RoHS, CE, FCC, UL, TUV
Compliant Standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.3ad (LACP)

Product Description
The Lenovo RackSwitch G8264 is built to handle demanding data center and enterprise networking tasks. Often found in server racks, it combines high port density with robust Layer 3 features to support complex network topologies. Engineered for IT professionals managing medium to large-scale networks, the switch supports multiple high-speed connections and offers flexibility for both aggregation and core network roles. Key Features High-performance 10GbE and 40GbE ports for data-intensive environments Advanced Layer 3 functionality including routing protocols for efficient traffic management Redundant power supplies designed to reduce downtime risks Compact 1U rack-mount form factor fits standard data center racks Managed switch capabilities provide fine-grained control over network behavior These switches are typically deployed in data centers and enterprise networks where reliable, fast Ethernet connections are crucial. Their capabilities support both server connectivity and uplink aggregation, helping maintain smooth network operations.

Use Cases
The Lenovo 715964F switch is optimized for high-density network environments requiring robust Layer 3 routing and high throughput. It is particularly suited for data centers and enterprise IT infrastructures where seamless scalability and resilient operations are critical. How It's Used: Connecting virtualization environments in data centers to facilitate low-latency, high-bandwidth communication among compute nodes. Deploying in enterprise campus networks to manage inter-VLAN routing and enhance traffic segmentation and security. Serving as the core switch in storage clusters requiring consistent high-speed data transfers and redundancy. Supporting edge computing deployments by aggregating multiple 10GbE devices while providing uplinks for rapid data backhaul. Utilizing dual power supplies in rack deployments to ensure uninterrupted network availability for mission-critical applications. This switch contributes to operational efficiency by enabling scalable, high-performance connectivity within complex network topologies. Its Layer 3 capabilities and dual PSU design support reliable and manageable infrastructure growth in demanding enterprise settings.
