| Product Overview |
|---|

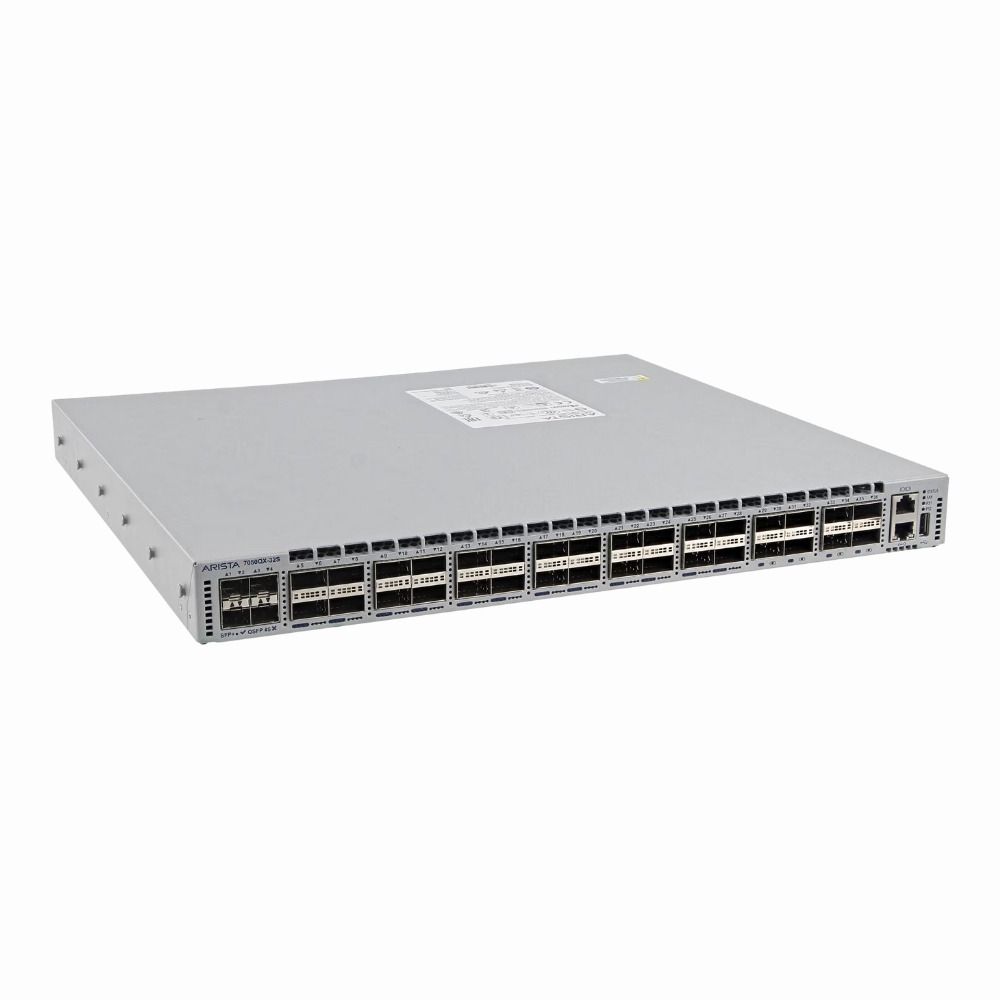

The Arista 7050QX-32 is a compact rack-mount switch designed to provide 40GbE connectivity with Layer 3 management features. It fits into typical data center racks and serves well in roles that require a balance of high port density and advanced network routing, making it practical for core and aggregation network layers. |
| General Information | |
|---|---|
| Brand | Arista Networks |
| Part Number | 7050QX-32 |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack |
| Switch Ports | QSFP+ |
| Number of Ports | 32-Ports |
| Port Type | QSFP / QSFP+ |
| Port Speed | 40 GbE |
| UpLink Ports | Flexible via QSFP+ breakout (up to 96×10 GbE or 8×40 GbE); 7050QX‑32S variant adds 4×SFP+ |
| POE Support | No |
| Switching Capacity | 2.56 Tbps |
| Switch Forwarding Rate | 1.44 Bpps |
| DRAM | 4 GB |
| Flash Memory | 4 GB |
| VLAN Support | Yes |
| Max VLANs Supported | 4,096 |
| Stackable | No |
| Layer Support | Layer 2 |
| Connector Type | QSFP+, RJ-45 (console, mgmt), USB |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| Management and Configuration | |
|---|---|
| Routing Protocols | RIP, OSPF, OSPFv3, BGP, VRRP |
| Remote Protocols | Arista EOS CLI, eAPI, OpenFlow, DirectFlow, SNMP, sFlow, LANZ, DANZ, ZTP |
| Security Features | ACLs, RADIUS/TACACS+, TACACS, secure boot, role-based access, SSH, port security, etc. |
| Security | SSH, RADIUS, TACACS+, 802.1X, ACLs |
| Remote Management Protocol | SSH, SNMPv2/v3, eAPI (HTTP/HTTPS/JSON), REST |
| Routing Protocol | BGP, OSPF, IS-IS, RIP, Static Routing, VRF |
| Physical Characteristics | |
|---|---|
| Weight | 4.00 |
| Operating Temperature | 0°C to 40°C |
| Miscellaneous | |
|---|---|
| Compliance Standards | WEEE, RoHS, CE, FCC |
| Compliant Standards | IEEE 802.3, IEEE 802.3ba, IEEE 802.3ae, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.3ad |
| Product Description |
|---|
The 7050QX-32 is a high-performance switch built for data centers and enterprise networks requiring fast, reliable connections. It often appears in environments where 40GbE links are critical for handling large volumes of traffic efficiently. Typically used by network administrators and IT professionals, this switch supports complex routing and switching tasks with Layer 3 capabilities, making it suitable for core or aggregation layers in a network. Key Features
You'll find this switch deployed in medium to large data centers where scalability and speed are essential. It plays a vital role in linking servers, storage, and other switches efficiently. Its robust design and feature set help maintain smooth network operations, especially in environments that demand both high bandwidth and advanced routing capabilities. |
