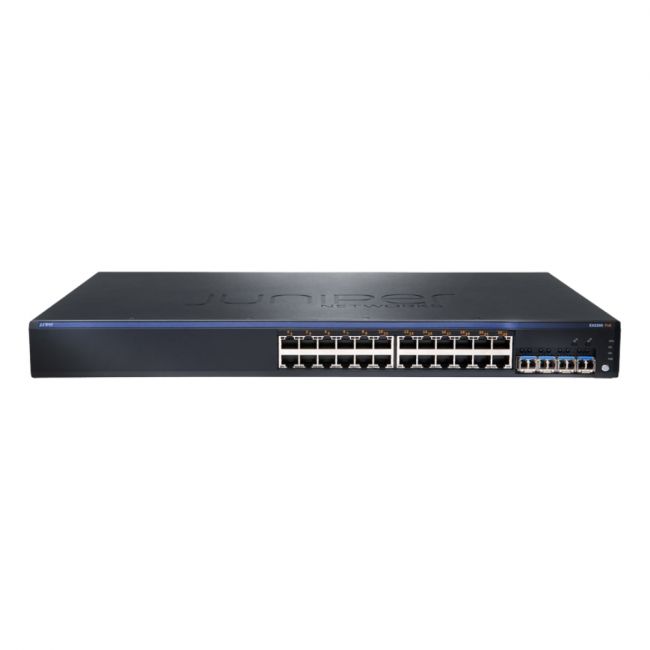

Name: 6630-HC1 Juniper EX2200 24-Port Gigabit Ethernet Switch
Brand: Juniper Networks
SKU: 6630-HC1
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (114 reviews)

Product Overview
The Juniper EX2200 24-Port Gigabit Ethernet Switch is designed to provide basic yet dependable network connectivity primarily at the access layer. It fits well in environments like small offices or branch sites where straightforward, efficient switching is needed without added complexity.

General Information
Brand	Juniper Networks
Part Number	6630-HC1
Condition	Refurbished
Alternate Part Number	6630-HC1-06-CT

Technical Information
Switch Ports	24
Number of Ports	24-Ports
Port Type	10/100/1000Base-T, 1000Base-X, RJ-45, Serial Console (RJ-45)
Port Speed	10/100/1000 Mbps
UpLink Ports	2
POE Support	No
Switching Capacity	48 Gbps
Switch Forwarding Rate	35.7 Mpps
DRAM	256 MB
Flash Memory	128 MB
VLAN Support	Yes
Max VLANs Supported	1-4094
Stackable	No
Layer Support	Layer 3 Lite
Connector Type	RJ-45,SFP

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	16000

Management and Configuration
Routing Protocols	Static, RIP, IGMP
Remote Protocols	Yes
Management Interfaces	Console (RJ-45), SSH, Web UI, SNMP
Security Features	802.1X, RADIUS, TACACS+, ACLs, SSH, Port security, Storm control
Remote Management Protocol	SSH,HTTPS,HTTP,SNMP

Power & Cooling
Fans	Fanless
Power	36 W (typical)

Physical Characteristics
Dimensions	1.75 x 17.32 x 9.84 in
Weight	3.00
Operating Temperature	0 to 40 C

Miscellaneous
Compliance Standards	RoHS, CE, FCC, UL
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D

Product Description
The Juniper EX2200 24-Port Gigabit Ethernet Switch delivers reliable network connectivity with 24 high-speed ports. It is commonly used in enterprise access layers, small offices, or branch locations where dependable wired networking is essential. Built for network administrators who need straightforward deployment and management, this switch offers solid performance without unnecessary complexity. It often appears in setups requiring basic Layer 2 features and scalable port density. Key Features Provides 24 Gigabit Ethernet ports for fast data transfer Includes Layer 2 switching capabilities like VLANs and Spanning Tree Protocol Compact and fanless design suitable for quiet environments Supports standard network management protocols for easy administration Energy-efficient operation helps reduce overall power use In practice, this switch is frequently found in office wiring closets and branch network setups. It handles everyday networking tasks reliably, supporting workstations, printers, and IP phones without fuss. Its simplicity and efficiency make it a practical choice for environments that don't require advanced routing or Layer 3 features.

Use Cases
The 6630-HC1 Juniper EX2200 switch is ideal for network environments requiring reliable and scalable gigabit connectivity. How It's Used: Connecting end-user devices in enterprise office networks Aggregating access switch traffic in campus network deployments Providing network access in data center top-of-rack configurations Supporting VoIP and video conferencing systems with stable bandwidth Serving as a managed switch for network segmentation using VLANs This switch is well-suited for organizations aiming to enhance their network infrastructure with dependable and manageable gigabit Ethernet connectivity.
