| Product Overview |
|---|

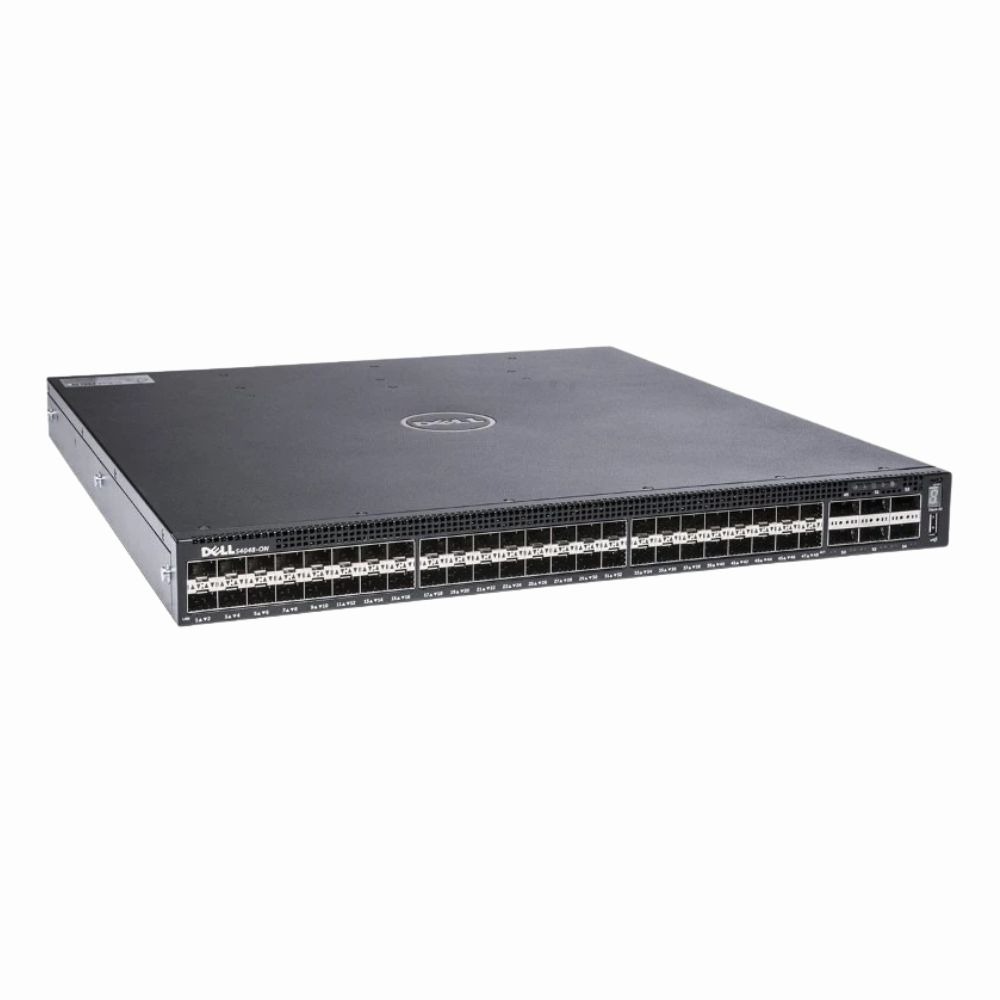

The Dell 64T5K S4048-ON switch provides a flexible and high-performance 10GbE solution primarily for data centers and enterprise networks. It accommodates multiple open network operating systems, allowing users to tailor the switch to their environment. Its port density and low-latency operation make it well-suited to demanding network tasks, fitting neatly into top-of-rack setups or aggregation points within larger network architectures. |
| General Information | |
|---|---|
| Brand | Dell |
| Part Number | 64T5K |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 48 |
| Number of Ports | 48-Ports |
| Port Type | 10G SFP+, QSFP / QSFP+ |
| Port Speed | 10Gbps |
| UpLink Ports | 6 x 40GbE QSFP+ |
| POE Support | No |
| Switching Capacity | 1.44 Tbps |
| Switch Forwarding Rate | 1071.43 Mpps |
| DRAM | 4 GB |
| Flash Memory | 4 GB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Layer Support | Layer 3 |
| Connector Type | SFP+,QSFP+ |
| Performance | |
|---|---|
| Latency | Low latency (< 3 microseconds typical) |
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 32000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, BGP, VRRP, PIM-SM, IGMP, MLD |
| Remote Protocols | Yes |
| Security Features | 802.1X, TACACS+, RADIUS, ACLs, Port Security, SSH, Storm Control |
| Remote Management Protocol | SSH, Telnet, HTTP, HTTPS, SNMPv2/v3 |
| Routing Protocol | Static, RIP, OSPF, BGP, VRRP, PIM |
| Power & Cooling | |
|---|---|
| Fans | Redundant hot-swappable fans (front-to-back airflow) |
| Power | Dual hot-swappable AC power supplies (redundant) |
| Physical Characteristics | |
|---|---|
| Weight | 5.00 |
| Operating Temperature | 0°C to 45°C |
| Miscellaneous | |
|---|---|
| Compliance Standards | RoHS, CE, FCC, UL |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.3X |
| Product Description |
|---|
The Dell S4048-ON switch delivers 48 ports of 10 Gigabit Ethernet SFP+ connectivity, making it suitable for environments requiring fast and reliable data transfer. It's often found in data centers and enterprise network infrastructures where network performance and flexibility are priorities. Built for IT professionals and network administrators, this switch supports open networking, allowing users to select the network operating system that best fits their needs. This adaptability makes it a versatile choice for various deployment scenarios. Key Features
This switch is typically deployed in data center top-of-rack configurations or as part of enterprise aggregation layers. It plays a key role in handling high traffic volumes and ensuring smooth data flow across network segments. Users benefit from its combination of performance, flexibility, and cost-effectiveness, making it a practical solution for scaling network infrastructure without compromising speed or reliability. |
