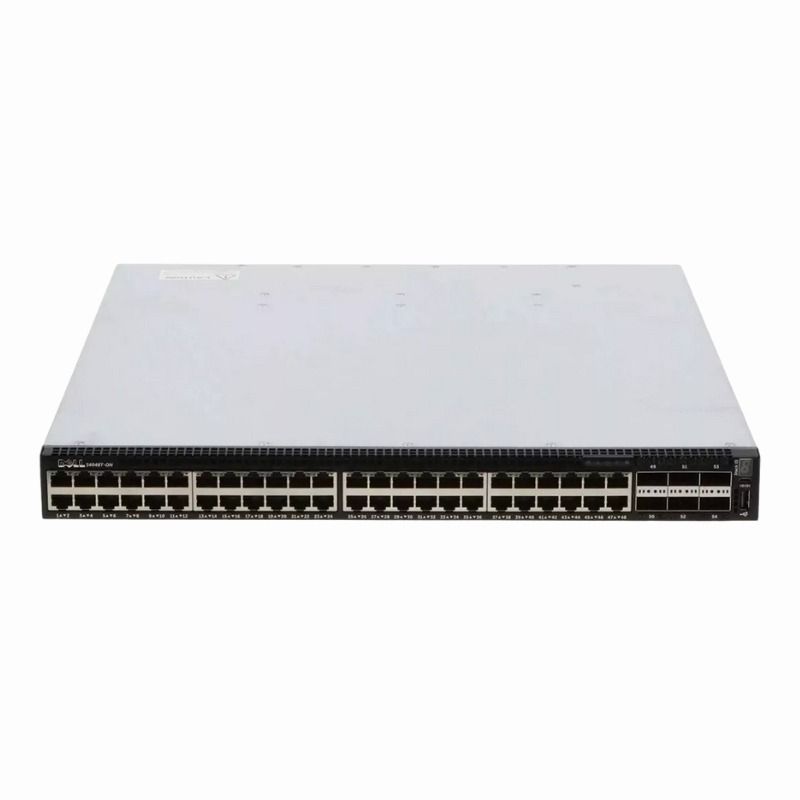

Name: Dell 5T5G4 S4048T-ON 48 X 10GBase-T Ports 6 X 40GbE
Brand: Dell
SKU: 5T5G4
Price: 929.00 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The Dell S4048T-ON offers 48 10GBase-T ports alongside 6 40GbE uplinks, making it suitable for dense server environments and high-bandwidth aggregation. It fits well within data center top-of-rack or aggregation layers, providing flexible connectivity options and running an open networking OS to support diverse network setups.

General Information
Brand	Dell
Part Number	5T5G4
Condition	Refurbished

Technical Information
Switch Ports	48
Number of Ports	48-Ports
Port Type	10GBase-T, 40G QSFP+
Port Speed	10 Gbps
UpLink Ports	6 x 40GbE
POE Support	No
Switching Capacity	1.44 Tbps
Switch Forwarding Rate	1071.4 Mpps
DRAM	8 GB
Flash Memory	4 GB
VLAN Support	Yes
Max VLANs Supported	1-4094
Stackable	No
Layer Support	Layer 3
Connector Type	RJ-45,QSFP+

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	32000

Management and Configuration
Routing Protocols	Static, RIP, OSPF, OSPFv3, BGP, VRRP, HSRP, PIM-SM, IGMP
Remote Protocols	Yes
Remote Management Protocol	SNMPv1/v2c/v3, SSH, Telnet, HTTP/HTTPS, RADIUS, Syslog
Routing Protocol	Static, OSPF, BGP

Power & Cooling
Fans	3 (hot-swappable)
Power	100-240V AC, 50/60 Hz

Physical Characteristics
Weight	5.00
Operating Temperature	0°C to 40°C

Miscellaneous
Compliance Standards	RoHS, CE, FCC, UL, TUV
Compliant Standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3ae, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad, IEEE 802.3x

Product Description
The Dell S4048T-ON switch is built for environments demanding fast and reliable network connections. It's commonly found in data centers where high port density and uplink speed are essential to manage traffic efficiently. IT professionals and network engineers often choose this switch for its combination of 10GBase-T ports and 40GbE uplinks, accommodating both server connectivity and backbone aggregation. Key Features Offers 48 10G copper ports ideal for direct server connections without the need for fiber transceivers Includes 6 QSFP+ ports supporting 40GbE for flexible uplink and stacking options Runs Dell's Networking Operating System (OS10), allowing integration with open networking environments Supports comprehensive Layer 2 and Layer 3 protocols for versatile network configurations Provides energy-efficient operation to reduce power consumption in large deployments This switch is typically deployed in top-of-rack setups or aggregation layers within data centers. Its mix of port types helps consolidate network infrastructure, simplifying cabling and management. By combining high-speed Ethernet with a robust OS, the S4048T-ON serves as a reliable foundation for scalable and adaptable networks.

Use Cases
The Dell S4048T-ON switch is primarily deployed in data center top-of-rack environments and enterprise aggregation layers where high-density 10GBase-T connectivity is required. It benefits network architects managing virtualized workloads and high-throughput applications by delivering flexible uplink options and supporting advanced Layer 2 and Layer 3 protocols. How It's Used: Connecting hyper-converged infrastructure in enterprise data centers requiring high port density and low-latency 10GbE copper access. Serving as an aggregation switch in campus or branch office networks that need scalable 40GbE uplinks for backbone connectivity. Supporting storage clusters with high I/O demands by providing reliable 10GBase-T interfaces for server-to-storage communication. Deploying in multi-tenant cloud environments where flexible Layer 3 routing and open networking OS facilitate customized network segmentation. Integrating into rack deployments that consolidate server connections while enabling future bandwidth expansion through 40GbE QSFP+ uplinks. This switch enhances operational efficiency by centralizing high-speed access and aggregation within dense network topologies. Its open network OS and port scalability allow IT teams to adapt infrastructure to evolving application demands and virtualization requirements without compromising performance.
