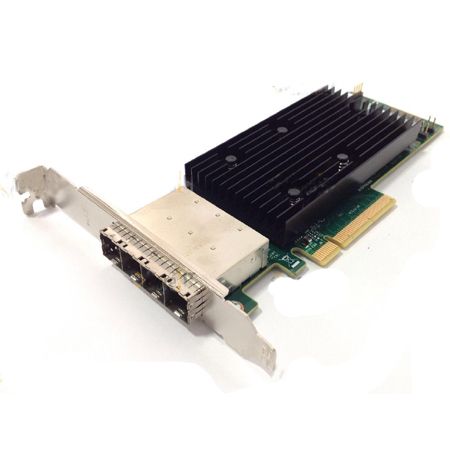

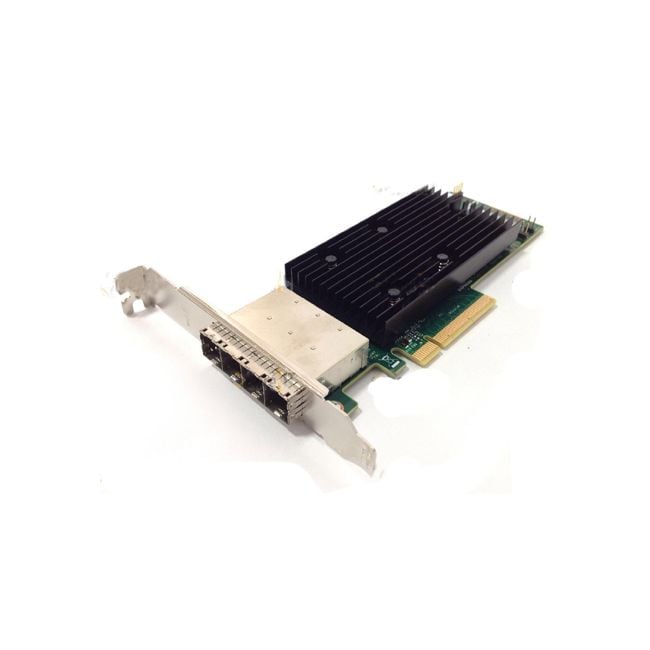

Name: Dell 565-BBDP 9305-16E LSI Logic 12Gb/s 16-Port External PCI Express 3.0 SAS Non-RAID Controller
Brand: LSI Logic
SKU: 565-BBDP
Price: 89.00 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The Dell 9305-16E SAS controller connects servers to multiple external storage devices, focusing on delivering high transfer speeds through its 16-port 12Gb/s SAS interface. It fits well in setups that prioritize direct access over RAID capabilities, offering a straightforward path for expanding external storage in enterprise environments.

General Information
Brand	LSI Logic
Part Number	565-BBDP

Technical Specification
Chipset	LSI SAS3008 (12Gb/s)
Host Interface	PCI Express 3.0 x8
Data Rate	12Gb/s per port
RAID Levels	Non-RAID (HBA / IT mode)
Cache	None
Ports	16
Connectivity	SAS (12Gb/s)
External Interface	Mini-SAS HD (SFF-8644) x4
Compatibility	Dell PowerEdge servers (OEM 565-BBDP), Windows Server, Linux (kernel with HBA drivers), VMware ESXi, FreeBSD

Physical Characteristics
Form Factor	PCIe 3.0 low-profile / full-height bracket (standard PCIe card)
Weight	5.00
Condition	Refurbished

Miscellaneous
Eco Friendly	Yes
Compliance Standards	WEEE, RoHS, CE, FCC, UL

Product Description
The Dell 9305-16E SAS controller manages high-speed connections between servers and external storage devices. It’s often found in data centers and enterprise environments where reliable, high-capacity storage access is crucial. Built for IT professionals who require straightforward, high-bandwidth connections without RAID overhead, this controller ensures smooth data handling for large-scale storage arrays. Key Features Handles up to 16 external SAS devices with a 12 Gb/s link speed Utilizes PCI Express 3.0 for efficient communication with host systems Non-RAID design lets users manage data configurations externally Compatible with various Dell PowerEdge servers for flexible deployment Supports multiple drive types including SAS and SATA for broad storage options This controller is commonly deployed in server racks managing external storage arrays where speed and device count matter more than integrated RAID functions. It helps maintain data flow for applications like database servers, backup solutions, and virtualization setups, providing a reliable connection without added complexity.

Use Cases
The Dell 565-BBDP SAS controller is commonly deployed in enterprise IT infrastructures requiring high-speed, direct access to external storage arrays. It is particularly suited for environments where RAID functionality is managed at the software layer or where applications demand direct, low-latency communication with multiple external drives. How It's Used: Connecting high-capacity external storage in data centers running virtualization workloads needing fast data access. Enabling storage expansion in media production environments where large files are transferred frequently between servers and external storage. Supporting database servers that require direct, non-RAID connectivity to external SAS drives for optimized transactional performance. Facilitating backup and archive systems in enterprise settings that rely on multiple external storage arrays for data retention. Integrating external storage in rack deployments that prioritize scalability and modular hardware configurations. This controller supports operational efficiency by providing a streamlined connection path to external storage, reducing bottlenecks in high-throughput environments. Its scalability accommodates growing storage demands without adding RAID complexity, aligning with infrastructures focused on performance and straightforward device management.
