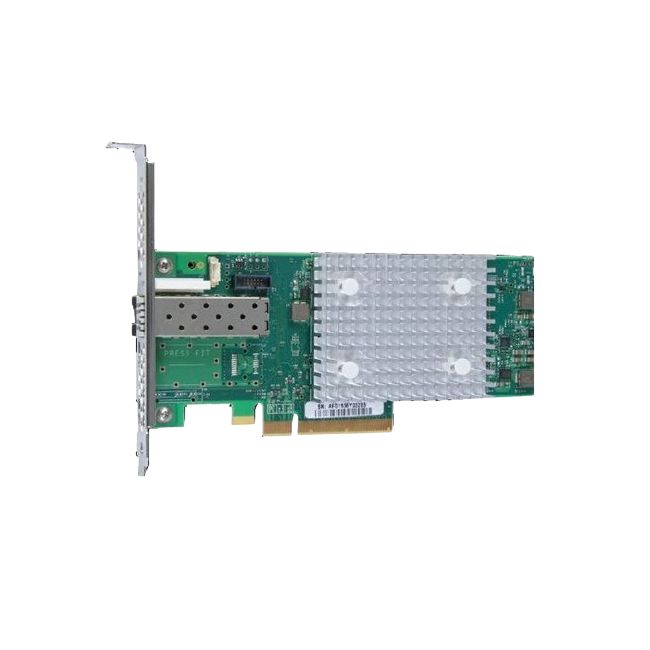

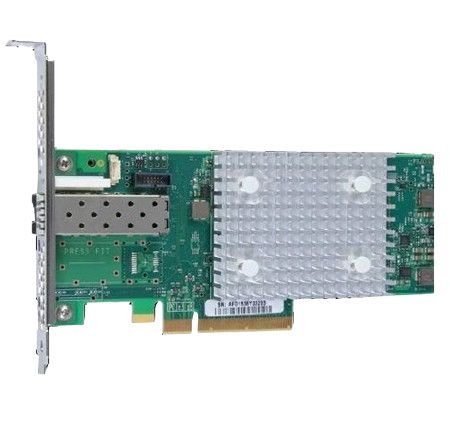

Name: Dell 540-BDHE QLogic 2690 Single Port 16GbE Fibre Channel HBA PCIe Full Height V2
Brand: QLogic
SKU: 540-BDHE
Price: 49.00 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The Dell 540-BDHE QLogic 2690 Single Port 16GbE Fibre Channel HBA is a server adapter designed to link servers with Fibre Channel storage networks. It fits into PCIe Full Height V2 slots and supports fast 16Gb/s data transfer, making it suitable for enterprise storage needs and data center environments.

General Information
Brand	QLogic
Part Number	540-BDHE

Technical Information
Protocol	Fibre Channel (FC)
Data Rate	16Gbps
Port Count	1-Port (Single)
Bus Interface	PCIe 3.0 x8
Generation	Gen 6
Connector Type	SFP+ (LC)
Chipset / Controller	QLogic 2690 (QLE2690)
Network Topology	Point-to-Point, Switched Fabric (N-Port)
Bracket Height	Full Height (Standard)

Advanced Features & Compatibility
Management Features	NPIV Support, Boot from SAN, Selective LUN Masking, Full Fabric Support, Diagnostics (D_Port)
OS Compatibility	Windows Server 2019, Windows Server 2022, VMware ESXi 7.x, VMware ESXi 8.x, RHEL 8, RHEL 9, SLES 15, Solaris, AIX

Physical Characteristics
Form Factor	Full Height (Standard)
Weight	5.00
Condition	Refurbished

Miscellaneous
Compliance Standards	RoHS, CE, FCC

Product Description
This Dell 540-BDHE QLogic 2690 HBA is built for connecting servers to Fibre Channel storage networks, providing fast and reliable data transfer. It's often found in data centers where consistent storage access and performance are critical. Designed for IT professionals managing SAN environments, this adapter fits into PCIe slots and integrates seamlessly into Fibre Channel fabric setups. It helps ensure efficient storage communication in enterprise workloads. Key Features Offers single 16Gb Fibre Channel port for high throughput Compatible with PCIe Full Height V2 slots in various Dell servers Uses QLogic 2690 chipset known for stable performance Supports advanced storage protocols for SAN environments Delivers low latency to optimize data storage access This HBA is typically deployed in enterprise SANs, connecting servers to storage arrays where rapid data exchange is essential. It plays a key role in maintaining smooth storage operations, especially in virtualized or data-intensive settings.

Use Cases
The Dell 540-BDHE QLogic 2690 Single Port 16GbE Fibre Channel HBA is primarily deployed in enterprise data centers and high-performance computing environments that require reliable, low-latency connectivity to Fibre Channel storage arrays. It benefits IT administrators managing virtualization workloads, storage clusters, and large-scale rack deployments where consistent throughput is critical. How It's Used: Connecting virtualization servers to SAN storage for efficient VM provisioning in enterprise IT infrastructures. Enabling high-bandwidth data transfer in storage clusters supporting database applications and analytics workloads. Facilitating rack-mounted server connectivity in data centers requiring scalable and low-latency storage access. Supporting remote office branch servers with Fibre Channel SANs to centralize data management and backup. Integrating with high-availability storage networks in disaster recovery setups to ensure continuous data replication. This adapter enhances operational efficiency by providing consistent, high-speed access to Fibre Channel storage resources while allowing scalable integration within varied server environments. Its compatibility with PCIe Full Height V2 slots ensures flexibility in deployment, meeting the needs of demanding storage networks and performance-sensitive applications.
