| Product Overview |
|---|

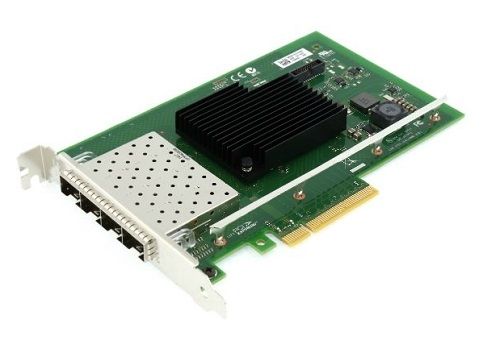

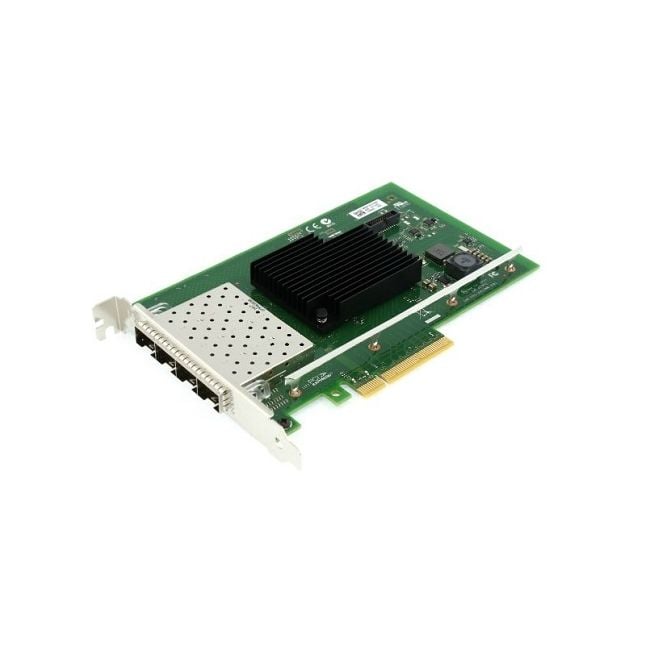

The Dell X710 4 x Ports 10Gb/s Direct Attach SFP+ Converged Network Adapter Card acts as a versatile network interface, fitting well within Dell server configurations that require both fast Ethernet connectivity and storage networking. Its four 10Gb/s SFP+ ports make it suitable for environments where combining Ethernet and Fibre Channel over Ethernet traffic on a single adapter streamlines operations and hardware use. |
| General Information | |
|---|---|
| Brand | Dell |
| Part Number | 540-BBHQ |
| Technical Information | |
|---|---|
| Chipset/Controller | Intel X710 |
| Virtualization Support | SR-IOV, VMDq, VXLAN, NVGRE, Geneve, NetQueue, vNIC |
| Data Rate (Speed) | 10GbE |
| Data Center Bridging | Yes |
| Storage Over Ethernet | iSCSI |
| Interface (Bus) | PCIe 3.0 x8 |
| Number of Ports | 4-Port (Quad) |
| OS Compatibility | Windows Server 2022, VMware ESXi 8.0, RHEL, VMware ESXi |
| Network Management | SNMP, RMON, NC-SI |
| Offload Support | RDMA, RoCE v2, iSCSI, FCoE, PXE Boot, Wake-on-LAN (WoL), RoCE v1, iWARP, TCP Stateless Offload, Jumbo Frames |
| Bracket Height | Both Brackets Included |
| Connectivity & Physical | |
|---|---|
| Form Factor | Standard PCIe Card |
| Port Type | SFP+ |
| Cabling Type | AOC |
| Max Power Consumption | Typical ~8W, Max ~10W |
| Weight | 5.00 |
| Condition | Refurbished |
| Miscellaneous | |
|---|---|
| Assembly Required | Yes |
| Eco Friendly | Yes |
| Compliance Standards | WEEE, RoHS, cURus, CE, FCC, CCC, UL, TUV, cULus, CSA, cUL |
| Product Description |
|---|
The Dell X710 4 x Ports 10Gb/s Direct Attach SFP+ Converged Network Adapter Card provides robust network performance by offering four high-speed 10Gb/s ports. It is commonly used in data centers and enterprise servers where both Ethernet and storage traffic are consolidated on a single network interface. Built for IT professionals managing Dell server environments, this adapter supports versatile networking needs, including standard Ethernet connections and Fibre Channel over Ethernet. It is often found in setups requiring reliable, low-latency data transfer and flexible deployment options. Key Features
This network adapter is typically deployed in high-performance computing environments and enterprise data centers where maximizing bandwidth and reducing latency is critical. Its ability to handle both network and storage traffic simplifies infrastructure and improves overall system efficiency. |
