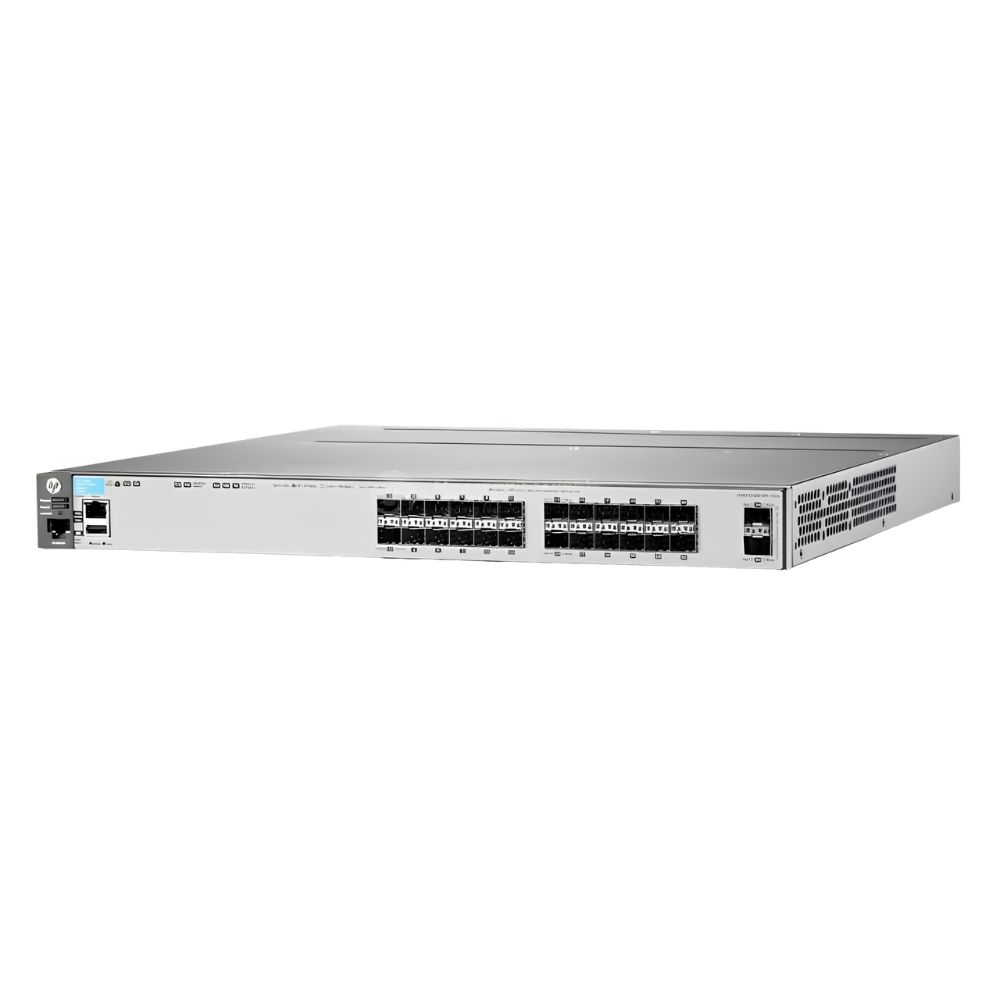

Name: 5185-9414 HP 3800-24G-2SFP+ 24-Port Gigabit + 2 SFP+ Layer 3 Managed Switch
Brand: HP
SKU: 5185-9414
Price: 471.22 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The 5185-9414 HP 3800 Series 3800-24G-2SFP+ is designed to deliver comprehensive Gigabit Ethernet switching with added 10Gb uplink support. It fits well into enterprise and data center networking environments where Layer 3 management and rack-mount capability are important for structured network architecture.

General Information
Brand	HP
Condition	Refurbished

Technical Information
Switch Type	Layer 3, Managed Switch, Gigabit Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Switch Ports	24
Number of Ports	24-Ports
Port Type	10/100/1000Base-T, 10G SFP+
Port Speed	10/100/1000Base-T (1 Gbps), 10G SFP+ (10 Gbps)
UpLink Ports	2
POE Support	No
Switching Capacity	88 Gbps
Switch Forwarding Rate	171.88 Mpps
DRAM	256 MB
Flash Memory	64 MB
VLAN Support	Yes
Max VLANs Supported	1-4094
Stackable	No
Layer Support	Layer 3
Connector Type	RJ-45,SFP+,Serial Console (RJ-45),USB Console

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	32000

Management and Configuration
Routing Protocols	Static, RIP, OSPF, VRRP
Remote Protocols	Yes
Management Interfaces	Web (HTTP/HTTPS), CLI (SSH/Telnet), SNMPv1/v2c/v3, RMON, Serial Console
Security Features	ACLs, 802.1X, RADIUS/TACACS+, SSH/SSL, Port Security, Storm Control, MAC Filtering
Management Type	Managed
Security	Yes
Remote Management Protocol	SNMP, HTTP, HTTPS, SSH, Telnet
Routing Protocol	Static, RIP, OSPF, VRRP

Power & Cooling
Fans	Internal fan(s)
Power	Typical ~45 W (max ~60 W)
Power Supply	Internal AC 100-240V, 50/60 Hz

Physical Characteristics
Dimensions	1.72 x 17.32 x 12.6 in (H x W x D)
Weight	3.00
Operating Temperature	0°C to 45°C

Miscellaneous
Eco Friendly	Yes
Assembly Required	No
Compliance Standards	WEEE, RoHS, CE, FCC, UL, cULus
Compliant Standards	IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.1Q,IEEE 802.1p,IEEE 802.3x,IEEE 802.1D

Product Description
The 5185-9414 HP 3800 Series 3800-24G-2SFP+ is a versatile network switch built for managing Gigabit Ethernet connectivity with additional 10Gb uplink options. It’s commonly found in network environments demanding reliable Layer 3 switching and routing functionality. Often used by network administrators and IT professionals, this switch supports medium to large-scale deployments where efficient traffic management and network segmentation are essential. Its rack-mountable form factor makes it suitable for standard network racks in enterprise IT infrastructures. Key Features Provides 24 RJ-45 ports supporting standard Gigabit Ethernet speeds Includes 2 SFP+ ports for high-speed fiber uplinks Equipped with Layer 3 capabilities for route management and traffic control Supports VLAN, QoS, and link aggregation for flexible network configuration Engineered for rack installation to optimize space and cable management This network switch delivers dependable performance for maintaining efficient data flow within a network. Its Layer 3 functions add robustness to routing tasks, helping maintain clear separation and control of traffic. Reliable and straightforward, it serves as a core component in network setups requiring consistent throughput and scalable management options.

Use Cases
This switch is typically deployed in enterprise IT environments and data centers where high-performance Gigabit connectivity combined with 10Gb uplinks is required. IT teams managing network segmentation and routing appreciate its Layer 3 features for efficient traffic distribution. How It's Used: Supports medium-sized enterprise LANs requiring reliable Gigabit Ethernet ports with enhanced uplinks Deployed in data center racks to connect servers and storage clusters with high-speed fiber links Used by network administrators for implementing VLANs and routing within campus networks Facilitates edge computing environments needing scalable and managed switch infrastructure Integrated into SMB networks that demand Layer 3 routing without sacrificing port density In these settings, the switch supports operational efficiency and network scalability, allowing IT teams to maintain consistent performance and adapt to evolving network demands.
