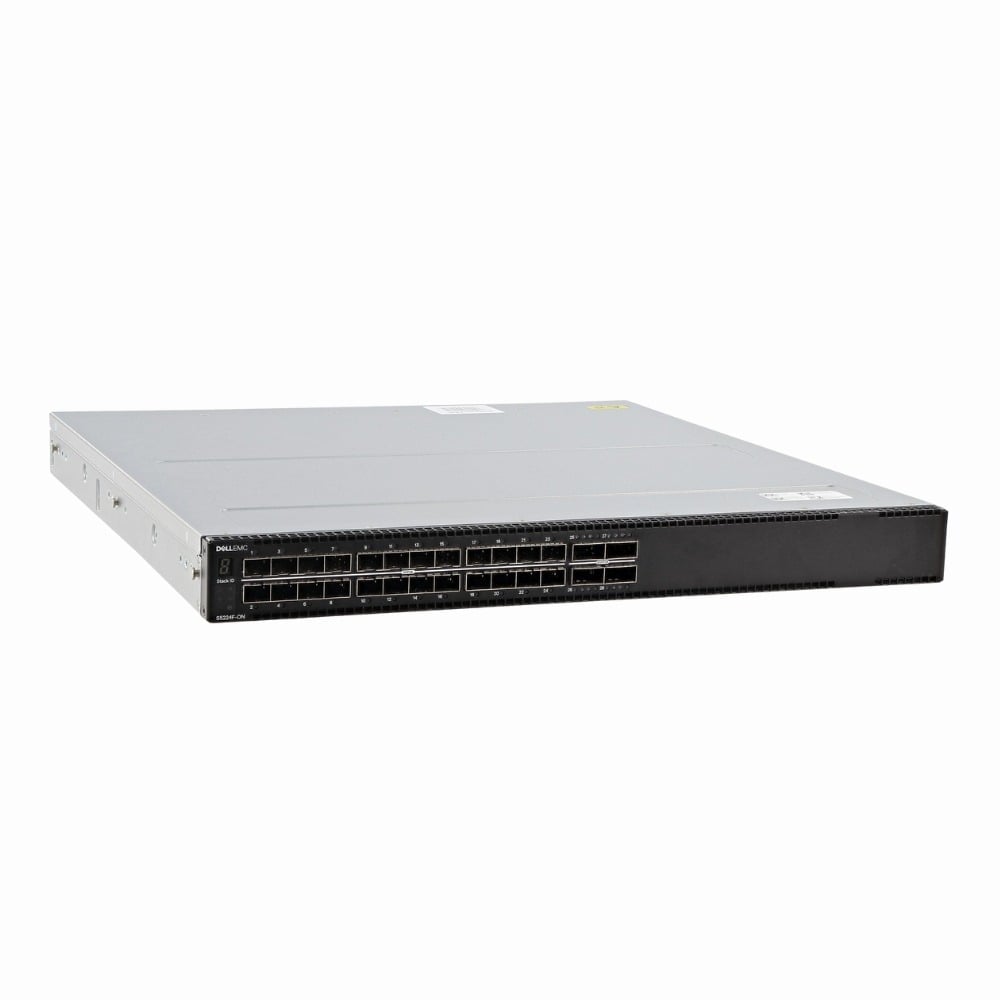

Name: 502MV Dell PowerSwitch S5224F-ON 24-Port 25GbE SFP28 Layer 3 Managed Switch
Brand: Dell
SKU: 502MV
Price: 3349.00 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The Dell PowerSwitch S5224F-ON combines high-speed 25GbE connectivity with Layer 3 routing in a compact 1U form factor. It's a solid choice where dense port counts and flexible network management are needed, fitting well into data centers or enterprise network cores.

General Information
Brand	Dell
Part Number	502MV
Condition	Refurbished

Technical Information
Switch Ports	24
Number of Ports	24-Ports
Port Type	25G SFP28, 100G QSFP28, USB Console, Serial Console (RJ-45)
Port Speed	25Gbps,100Gbps
UpLink Ports	4 x QSFP28 (100G)
POE Support	No
Switching Capacity	2 Tbps
Switch Forwarding Rate	1488 Mpps
VLAN Support	Yes
Max VLANs Supported	1-4094 (4094 VLANs)
Layer Support	Layer 3
Connector Type	SFP28,QSFP28,USB Console,Serial Console (RJ-45)

Performance
Jumbo Frame Support	Up To 9216 Bytes

Management and Configuration
Routing Protocols	Static, RIP, OSPF, OSPFv3, BGP, VRRP, PIM-SM, IGMP
Remote Protocols	Yes
Management Interfaces	Console (RJ-45), USB Console, SSH CLI, Web GUI, SNMPv1/v2c/v3, REST API, NETCONF
Security Features	ACLs, 802.1X, RADIUS/TACACS+, DHCP Snooping, IP Source Guard, BPDU Guard, Storm Control
Security	Yes
Remote Management Protocol	SSH,HTTPS,SNMP,REST API,NETCONF

Power & Cooling
Fans	Hot-swappable fans (front-to-back cooling)

Physical Characteristics
Dimensions	1.73 x 17.32 x 18.90 inches (44 x 440 x 480 mm)
Weight	5.00
Operating Temperature	0°C to 40°C

Miscellaneous
Compliance Standards	WEEE, RoHS, CE, FCC, UL, TUV
Compliant Standards	IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1D (STP), IEEE 802.1s (MSTP), IEEE 802.3x (Flow Control)

Product Description
The Dell PowerSwitch S5224F-ON is built for environments requiring robust, high-performance networking. It's commonly found in data centers and enterprise core or aggregation layers where fast, reliable connections are essential. The switch is often deployed by network administrators and IT professionals who need flexible Layer 3 features alongside solid hardware performance. Its 24 ports of 25GbE and 4 QSFP28 uplinks allow for scalable, low-latency data transport. Key Features High-density 25GbE SFP28 ports designed for bandwidth-intensive applications Advanced Layer 3 routing options to handle complex network topologies 1U rack-mountable chassis that fits standard data center racks Open networking with Dell's ON software for customization and automation Four QSFP28 ports provide flexible uplink and stacking choices This switch is typically deployed in data center racks supporting cloud, virtualization, or storage networks. It helps maintain efficient data flow and supports growing network demands without needing extensive infrastructure changes.

Use Cases
The Dell PowerSwitch S5224F-ON is designed for environments demanding high-density 25GbE connectivity combined with advanced Layer 3 functionality. It is particularly well-suited for data centers, enterprise core networks, and virtualization platforms where scalable and agile network performance is critical. How It's Used: Deploying in hyper-converged infrastructure data centers to support high-throughput east-west traffic between compute nodes. Integrating into enterprise core networks to enable efficient Layer 3 routing and reduce network latency for mission-critical applications. Connecting storage clusters with high-speed 25GbE links to optimize data transfer rates in SAN environments. Supporting edge computing deployments requiring compact, rack-mountable switches with flexible uplink options. Facilitating network segmentation and VLAN routing in multi-tenant or campus networks with advanced Layer 3 capabilities. This switch enhances operational efficiency by consolidating high-speed connectivity and routing in a compact footprint, allowing network architects to scale infrastructure while maintaining low latency and streamlined management. Its combination of port density and Layer 3 features supports evolving network demands without excessive complexity.
