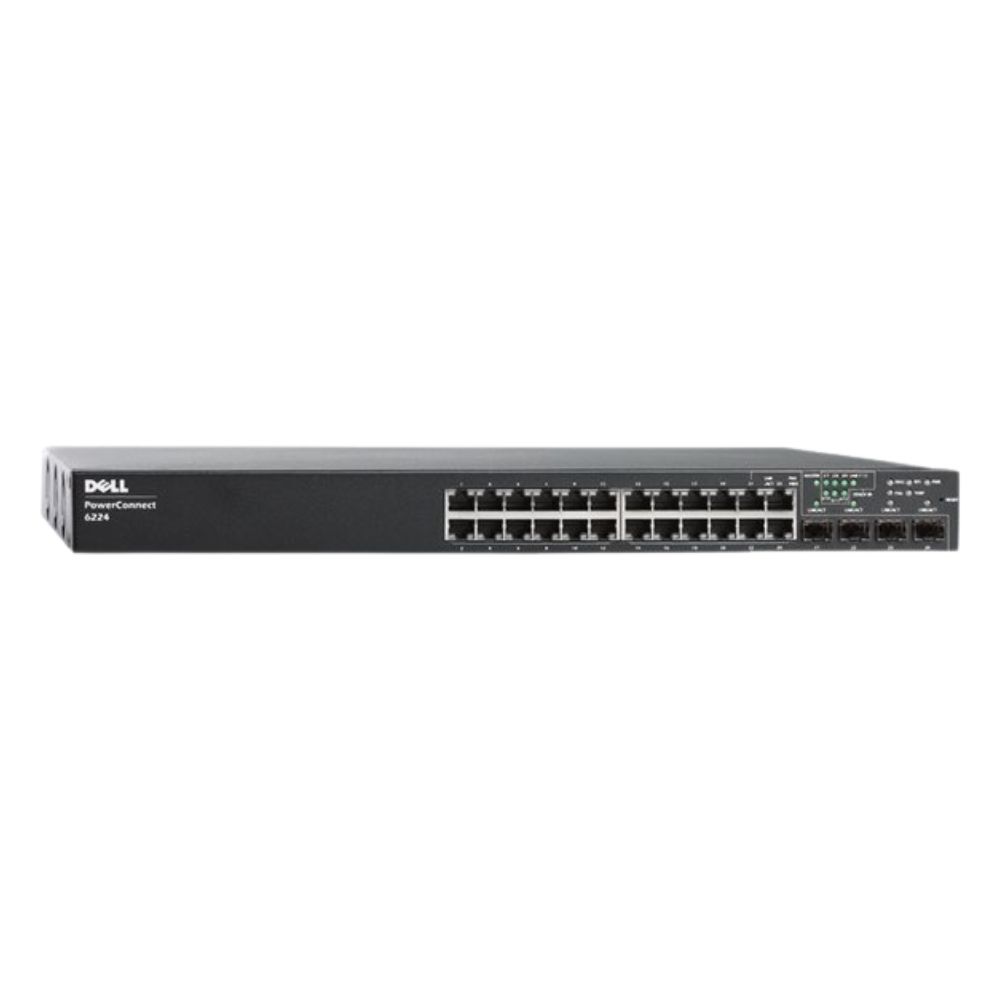

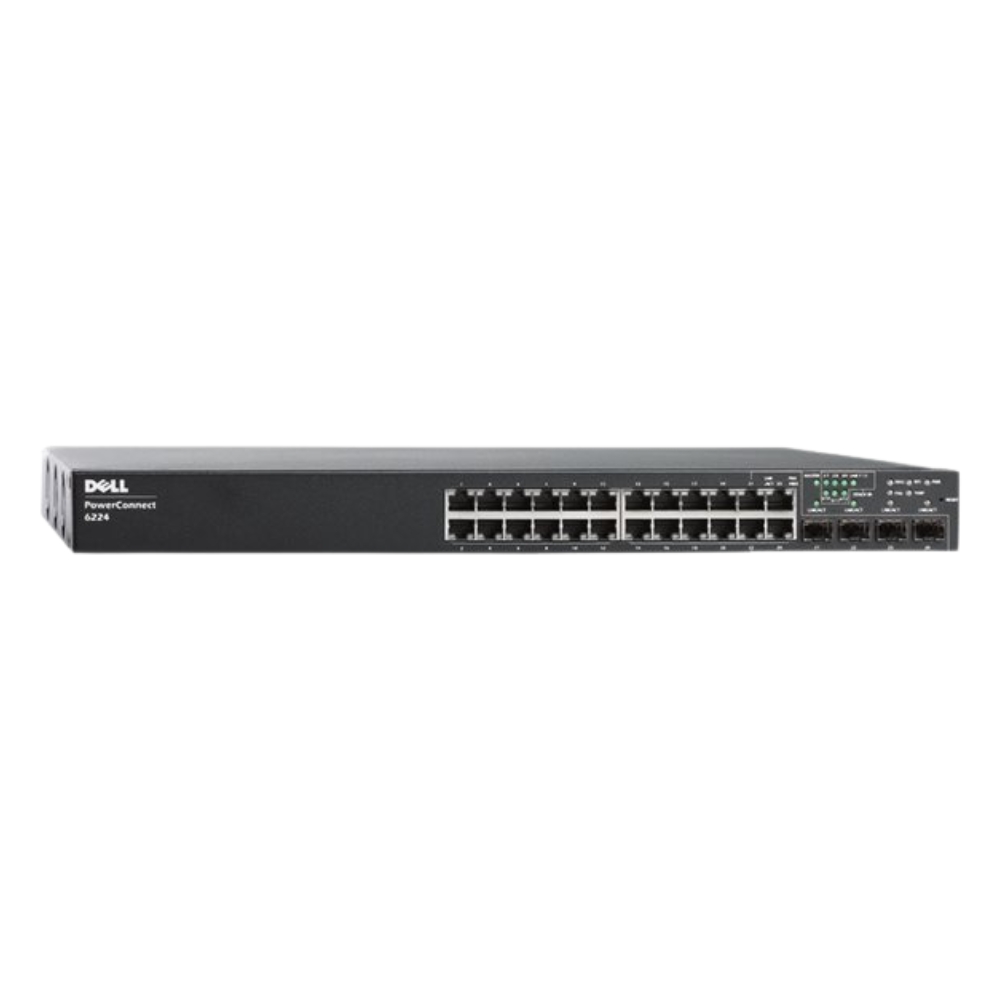

Name: 469-3421 Dell 6224 24-Port 1Gbps + 4 SFP Layer 3 Managed Switch
Brand: Dell
SKU: 469-3421
Price: 410.00 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The 469-3421 - Dell 6224 24-Port + 4-Port SFP Layer 3 Switch provides a balanced mix of port density and routing functions, fitting well in enterprise and mid-sized network infrastructures. It helps connect devices efficiently while managing traffic between different network segments.

General Information
Brand	Dell
Condition	Refurbished

Technical Information
Switch Type	Layer 3, Managed Switch, Gigabit Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Switch Ports	24
Number of Ports	24-Ports
Port Type	10/100/1000Base-T, SFP, Serial Console (RJ-45)
Port Speed	10/100/1000 Mbps
UpLink Ports	4 x SFP (1Gb)
POE Support	No
Switching Capacity	56 Gbps
Switch Forwarding Rate	41.67 Mpps
DRAM	128 MB
Flash Memory	64 MB
VLAN Support	Yes
Max VLANs Supported	1-4094
Stackable	No
Layer Support	Layer 3
Connector Type	RJ-45,SFP,Console (RJ-45)

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	8000

Management and Configuration
Routing Protocols	Static, RIP
Remote Protocols	Yes
Management Interfaces	Web-based GUI, CLI (SSH/Telnet), SNMP v1/v2/v3, RMON
Security Features	802.1X, ACLs (IP/MAC), Port Security, RADIUS, TACACS+, Storm Control
Management Type	Managed
Security	802.1X,RADIUS,TACACS+,ACLs
Remote Management Protocol	SNMP,SSH,Telnet,HTTP,HTTPS
Routing Protocol	Static,RIP

Power & Cooling
Fans	1 (internal, variable speed)
Power	AC 100-240V, 50-60Hz, ~60W (max)
Power Supply	Internal AC power supply (fixed)

Physical Characteristics
Dimensions	1.72 x 17.32 x 10.24 inches
Weight	3.00
Operating Temperature	0°C to 40°C

Miscellaneous
Assembly Required	No
Compliance Standards	WEEE, RoHS, CE, FCC
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D

Product Description
The 469-3421 - Dell 6224 Layer 3 Switch is built to manage complex network demands by combining high port density with advanced routing features. It is often found in enterprise and campus networks where reliable, scalable connectivity is essential. Designed for network administrators and IT professionals, this switch supports both standard Ethernet and fiber connections, enabling seamless integration across diverse infrastructures. Its Layer 3 functionality allows effective traffic segmentation and routing between subnets. Key Features Offers 24 gigabit Ethernet ports suitable for server and workstation connections Includes 4 SFP slots for flexible fiber uplink options Supports static routing and dynamic protocols to optimize network paths Delivers wire-speed forwarding performance for smooth data flow Equipped with VLAN support for network segmentation and security This switch plays a vital role in maintaining stable and efficient network operations. Its combination of port versatility and routing capabilities helps streamline data traffic and reduce bottlenecks. With consistent performance and multiple connectivity options, it serves as a reliable component in growing network environments.

Use Cases
This Dell switch is typically deployed in enterprise IT settings, campus networks, and data centers that require dependable layer 3 routing and flexible connectivity. It benefits IT teams needing versatile port options and reliable traffic management. How It's Used: Connecting servers and workstations in a mid-sized enterprise network environment Providing fiber uplink connections in campus or branch office networks Routing traffic between VLANs to segment network traffic efficiently Supporting virtualization clusters with consistent, high-speed network access Serving as an aggregation switch in small data center rack deployments By offering solid switching and routing features, the Dell 6224 switch supports smooth operation and scalability. It helps keep network traffic organized and responsive across various network architectures.
